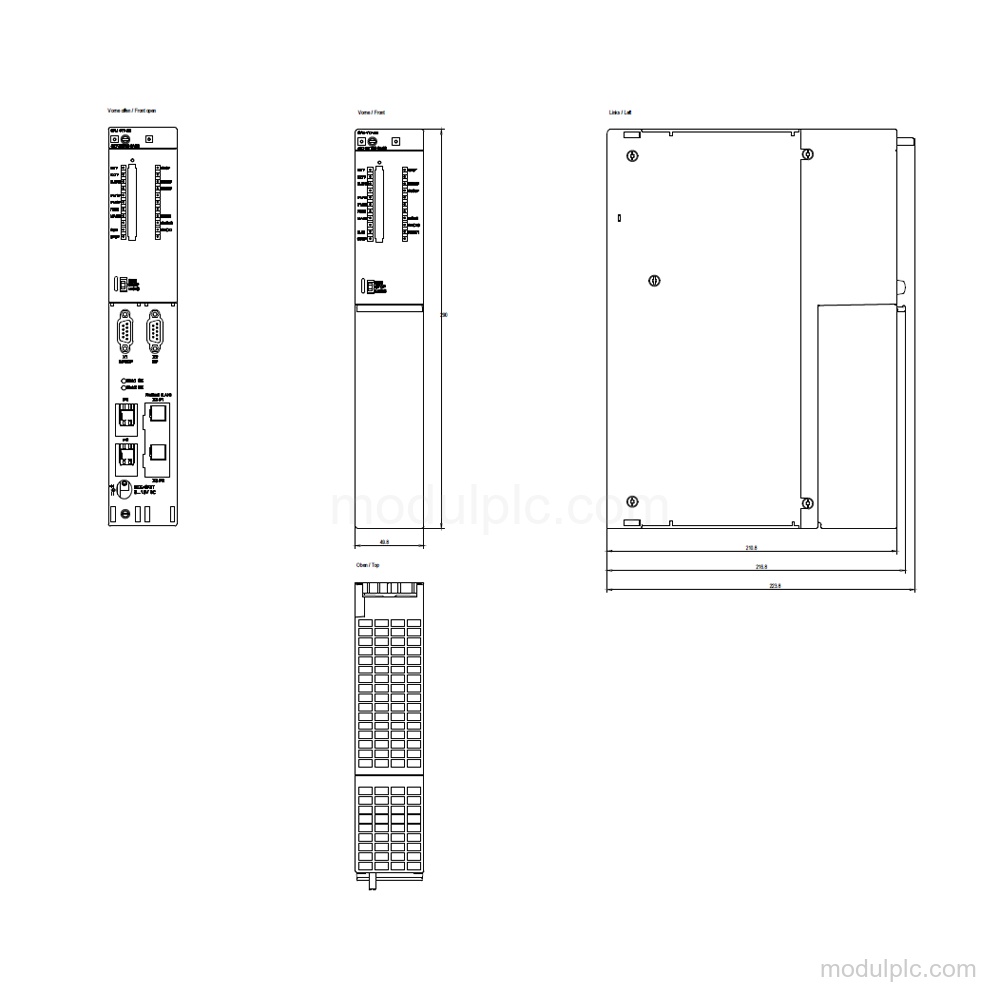

Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Product type | CPU 417-5H PN/DP |
| Integrated work memory | 32 Mbyte (16 Mbyte program, 16 Mbyte data) |
| PROFINET IO Controller | 1 |
| PROFINET ports | 2 RJ 45; integrated switch |
| PROFINET transmission rate, max. | 100 Mbit/s |
| Integrated PROFIBUS DP masters | 2 |
| PROFIBUS DP transmission rate, max. | 12 Mbit/s |
Applications
- Program execution: Executes control programs using LAD, FBD, STL, SCL, CFC, GRAPH and HiGraph® programming languages.
- PROFINET IO control: Controls PROFINET IO devices as a PROFINET IO Controller.
- PROFIBUS DP control: Operates PROFIBUS DP devices as a PROFIBUS DP master.
- System diagnostics: Provides process diagnostic messages, program alarms and a diagnostic buffer.
Key Features
- Central processing unit: CPU 417-5H PN/DP for SIMATIC S7-400H and S7-400F/FH systems.
- Integrated work memory: 32 Mbyte total: 16 Mbyte for the program and 16 Mbyte for data.
- PROFINET interface: PROFINET IO Controller with 2 RJ 45 ports, integrated switch and transmission rate up to 100 Mbit/s.
- PROFIBUS DP master: 2 integrated DP masters, with up to 32 connections and a transmission rate up to 12 Mbit/s per master.
- Synchronization interfaces: 2 interfaces are provided for pluggable synchronization submodules (FO); synchronization modules 6ES7960-1AA06-0XA0 or 6ES7960-1AB06-0XA0 are not included.
- Diagnostics and commissioning: Diagnostic buffer with up to 3 200 entries, status/control functions, forcing and 16 breakpoints.
Frequently Asked Questions
1. What is the function of the Siemens 6ES7417-5HT06-0AB0?
It is a CPU 417-5H PN/DP central processing unit for S7-400H and S7-400F/FH systems.
2. How much work memory does the CPU have?
It has 32 Mbyte of integrated work memory: 16 Mbyte for the program and 16 Mbyte for data.
3. Which PROFINET interfaces are available?
It has 2 RJ 45 ports, an integrated switch and PROFINET IO Controller functionality, with transmission rates up to 100 Mbit/s.
4. How many PROFIBUS DP masters are integrated?
It has 2 integrated PROFIBUS DP masters. Each supports up to 32 connections and up to 12 Mbit/s.
5. Are the synchronization modules included?
It is without synchronization modules. The supported modules are 6ES7960-1AA06-0XA0 and 6ES7960-1AB06-0XA0.
