Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Product type | CPU 414-5H PN/DP |
| Work memory | 4 Mbyte: 2 Mbyte program, 2 Mbyte data |
| Interfaces | 1 MPI/DP, 1 DP, 1 PROFINET, 2 synchronization-module interfaces |
| PROFINET IO Controller | Up to 256 IO Devices; 100 Mbit/s maximum |
| PROFIBUS DP master | 2 integrated masters; 12 Mbit/s maximum |
| Firmware version | V6.0 |
| Required slots | 2 |
Key Features
- CPU 414-5H PN/DP: Central processing unit for S7-400H and S7-400F/FH with HW functional status 1 and firmware version V6.0.
- Integrated work memory: 4 Mbyte total: 2 Mbyte for the program and 2 Mbyte for data; the work memory is not expandable.
- Communication interfaces: 1 MPI/DP interface, 1 DP interface, 1 PROFINET interface, and 2 interfaces for synchronization modules. PROFINET IO Controller and PROFIBUS DP master are supported.
- PROFINET capacity: The PROFINET IO Controller supports up to 256 connectable IO Devices and a maximum transmission rate of 100 Mbit/s.
- PROFIBUS DP capacity: The integrated PROFIBUS DP master supports up to 2 masters, 16 connections, 32 DP devices, and a maximum transmission rate of 12 Mbit/s.

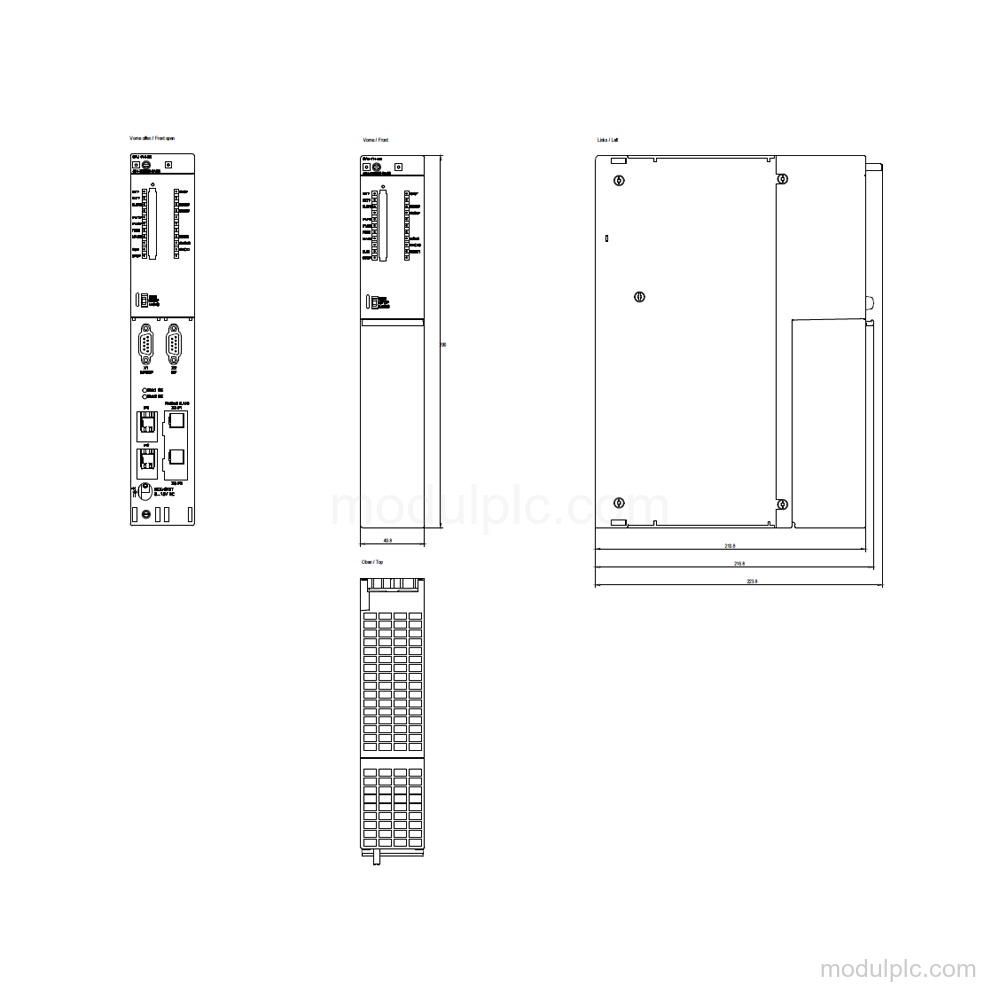

- Installation dimensions: The CPU requires 2 slots and measures 50 mm wide, 290 mm high, and 219 mm deep; weight is approximately 995 g.
Frequently Asked Questions
1. What type of CPU is Siemens 6ES7414-5HM06-0AB0?
It is a CPU 414-5H PN/DP central processing unit for S7-400H and S7-400F/FH.
2. How much work memory does this CPU have?
It has 4 Mbyte of integrated work memory: 2 Mbyte for the program and 2 Mbyte for data.
3. Which interfaces and protocols are supported?
It has 1 MPI/DP interface, 1 DP interface, 1 PROFINET interface, and 2 interfaces for synchronization modules. PROFINET IO Controller, PROFIBUS DP master, MPI, and S7 communication are supported.
