Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Product_type | CPU 412-5H PN/DP |
| Work_memory | 1 Mbyte; 512 kbyte program and 512 kbyte data |
| Interfaces | 1 MPI/DP, 1 DP, 1 PROFINET, and 2 synchronization-module interfaces |
| PROFINET_IO_Controller | Yes; 100 Mbit/s maximum; 256 IO Devices maximum |
| PROFIBUS_DP_masters | 2 integrated; 12 Mbit/s maximum; 64 DP devices maximum |
| Integrated_work_memory | Not expandable |
| Required_slots | 2 |
Applications
- Central processing: Central processing for S7-400H and S7-400F/FH systems.
- PROFINET IO control: PROFINET IO Controller operation for connecting IO Devices.
- PROFIBUS DP master communication: PROFIBUS DP master communication with DP devices.
Key Features

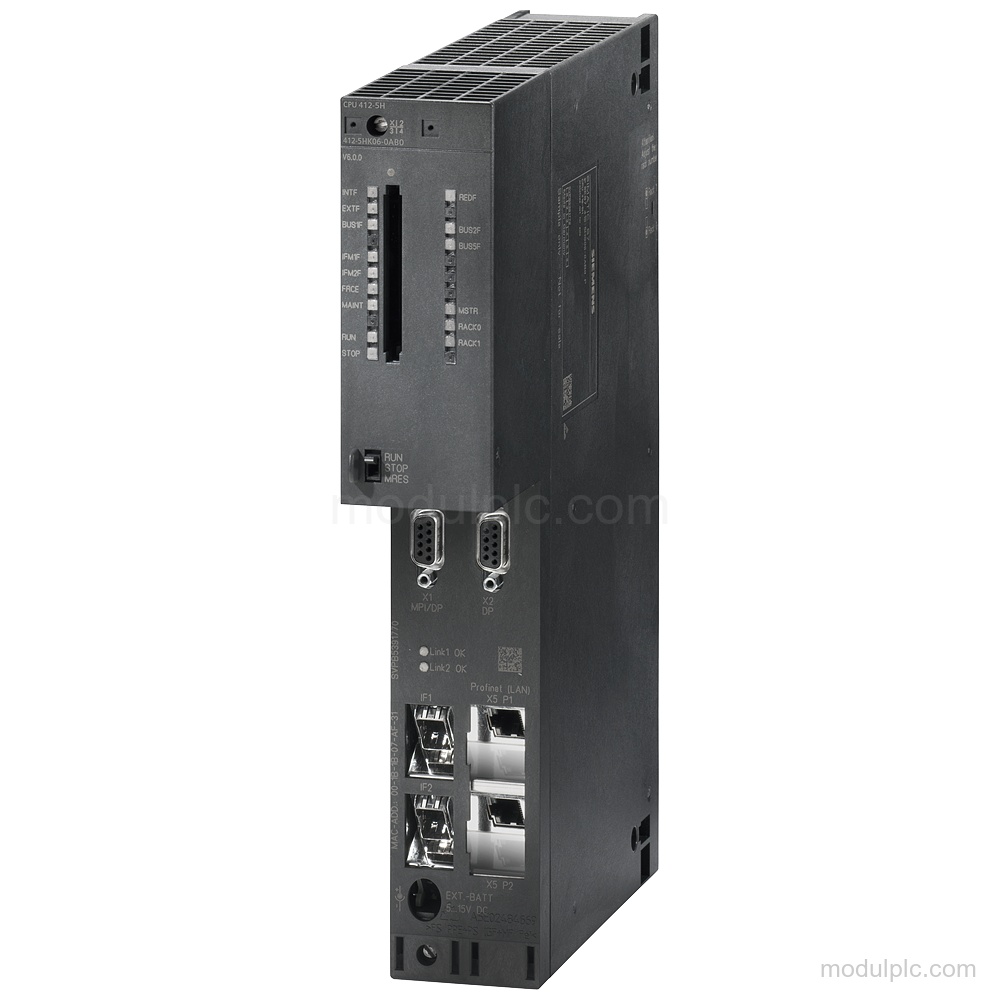

- CPU 412-5H PN/DP: Central processing unit for S7-400H and S7-400F/FH with hardware functional status 1 and firmware version V6.0.
- Integrated work memory: 1 Mbyte total: 512 kbyte for the program and 512 kbyte for data. The work memory is not expandable.
- Communication interfaces: 1 MPI/DP interface, 1 DP interface, 1 PROFINET interface, and 2 interfaces for synchronization modules.
- PROFINET IO Controller: Supports PROFINET IO Controller operation at a maximum transmission rate of 100 Mbit/s and up to 256 connectable IO Devices.
- PROFIBUS DP masters: 2 integrated PROFIBUS DP masters with a maximum transmission rate of 12 Mbit/s and up to 64 DP devices.

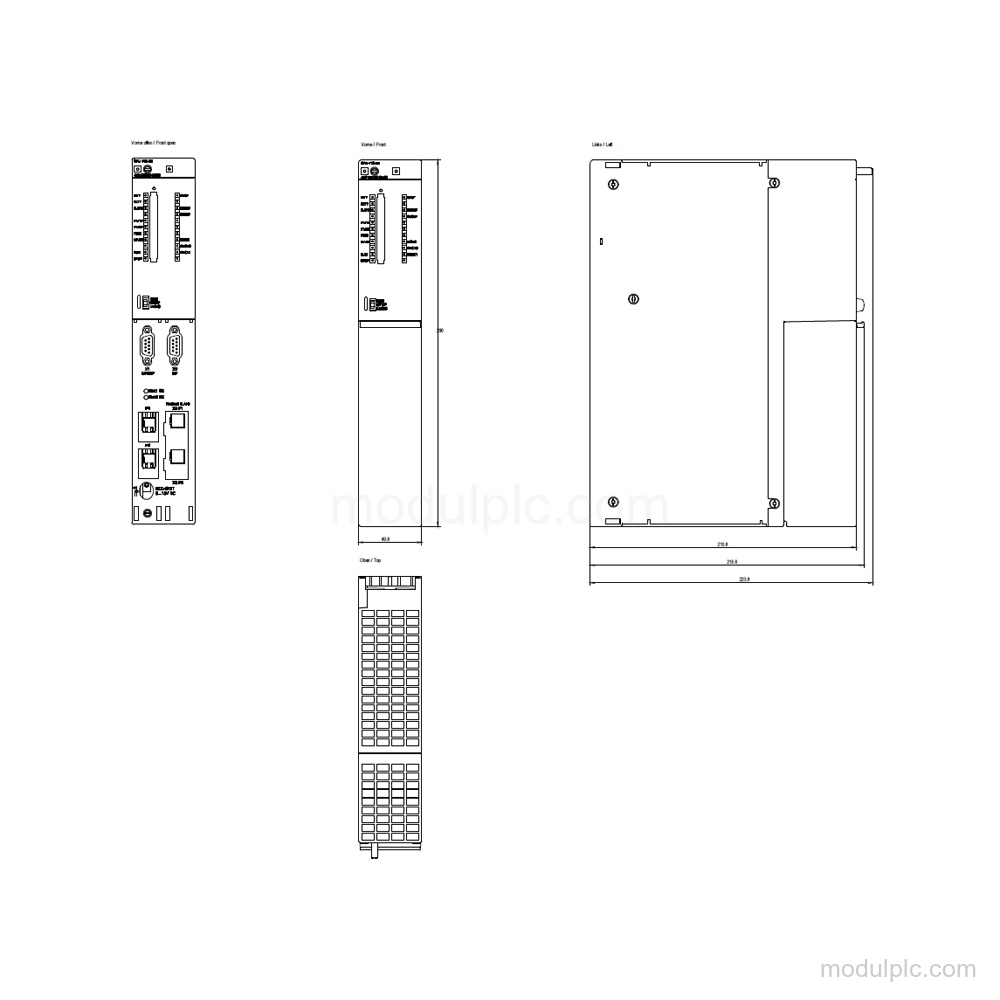

- Installation dimensions: Requires 2 slots. Dimensions are 50 mm width, 290 mm height, and 219 mm depth; approximate weight is 995 g.
Frequently Asked Questions
1. What is the function of Siemens 6ES7412-5HK06-0AB0?
It is a CPU 412-5H PN/DP central processing unit for S7-400H and S7-400F/FH.
2. Which interfaces does this CPU have?
It has 1 MPI/DP interface, 1 DP interface, 1 PROFINET interface, and 2 interfaces for synchronization modules.
3. How much work memory is integrated?
It has 1 Mbyte of integrated work memory: 512 kbyte for the program and 512 kbyte for data.
