Product Overview
Technical Summary
| Parameter | Value |
|---|---|

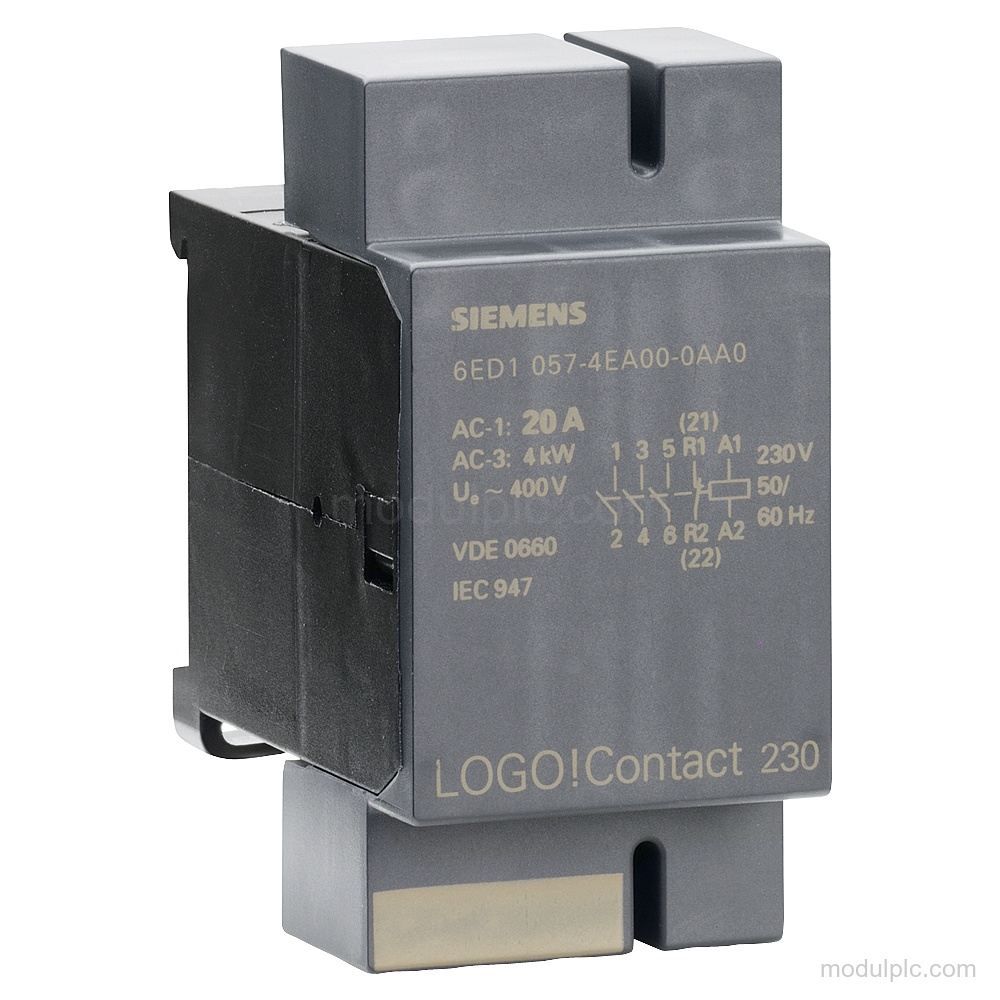

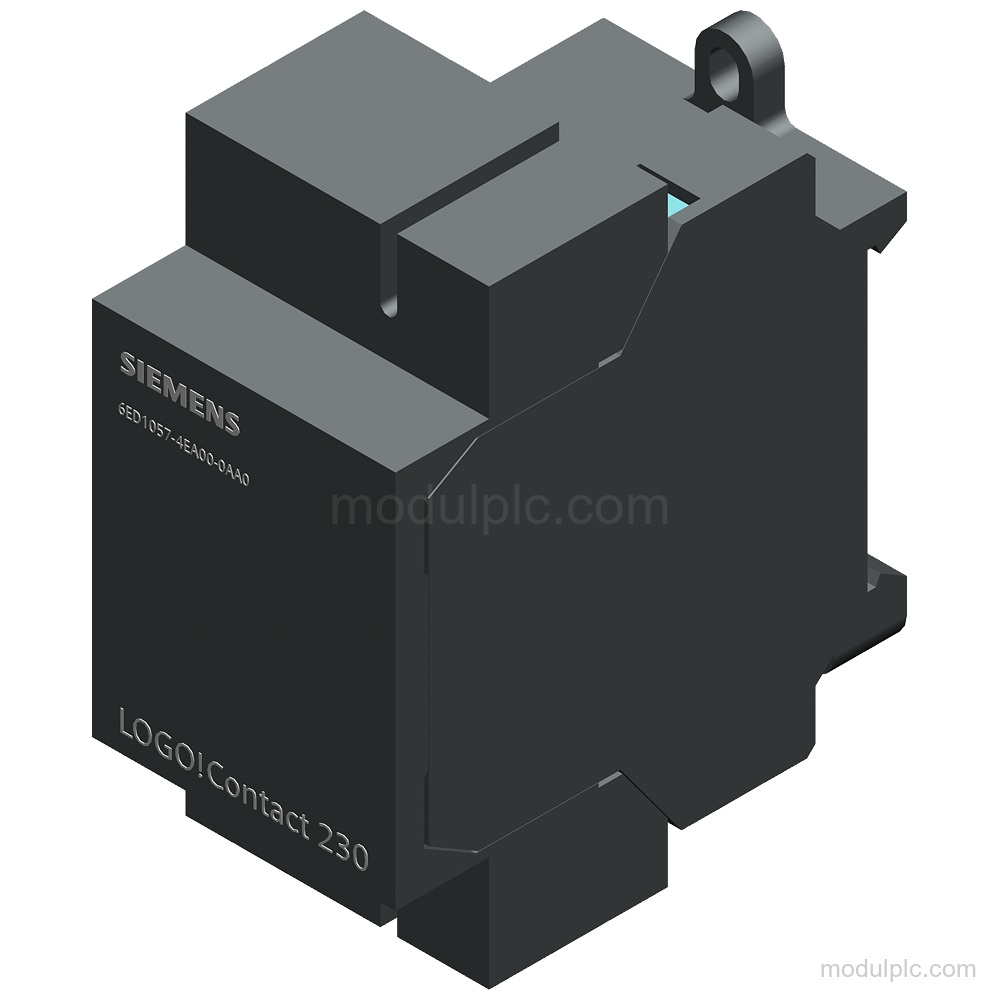

| Module type | LOGO! contact switching module |
| Resistive-load switching | Up to 20 A |
| Motor switching | Up to 4 kW |
| Supply voltage | 230 V AC |
| Permissible line-frequency range | 47 Hz to 63 Hz |
| Contact configuration | 3 NO contacts + 1 NC contact |
Applications
- Resistive-load switching: Direct switching of resistive loads up to 20 A.
- Motor switching: Direct switching of motors up to 4 kW at 230 V AC.
Key Features
- Direct switching: Switches resistive loads up to 20 A and motors up to 4 kW at 230 V AC.
- Contact configuration: Has 3 NO contacts and 1 NC contact.
- Rated supply voltage: Supply voltage: 230 V AC.
- Line frequency: Permissible line-frequency range: 47 Hz to 63 Hz.
Frequently Asked Questions
1. What does Siemens 6ED1057-4EA00-0AA0 switch?
It directly switches resistive loads up to 20 A and motors up to 4 kW at 230 V AC.
2. What contact configuration does the module have?
It has 3 NO contacts and 1 NC contact.
3. What supply voltage does 6ED1057-4EA00-0AA0 use?
The supply voltage is 230 V AC.
4. What line-frequency range is permissible?
The permissible line-frequency range is 47 Hz to 63 Hz.
