Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Digital inputs | 8 |
| Digital outputs | 8; Relays |
| Input voltage type | AC/DC |
| Rated voltage | 115 V AC/DC; 230 V AC/DC |
| Permissible DC voltage range | 100 V to 253 V |
| Output current, rated | 5 A |
| Minimum output load current | 100 mA |

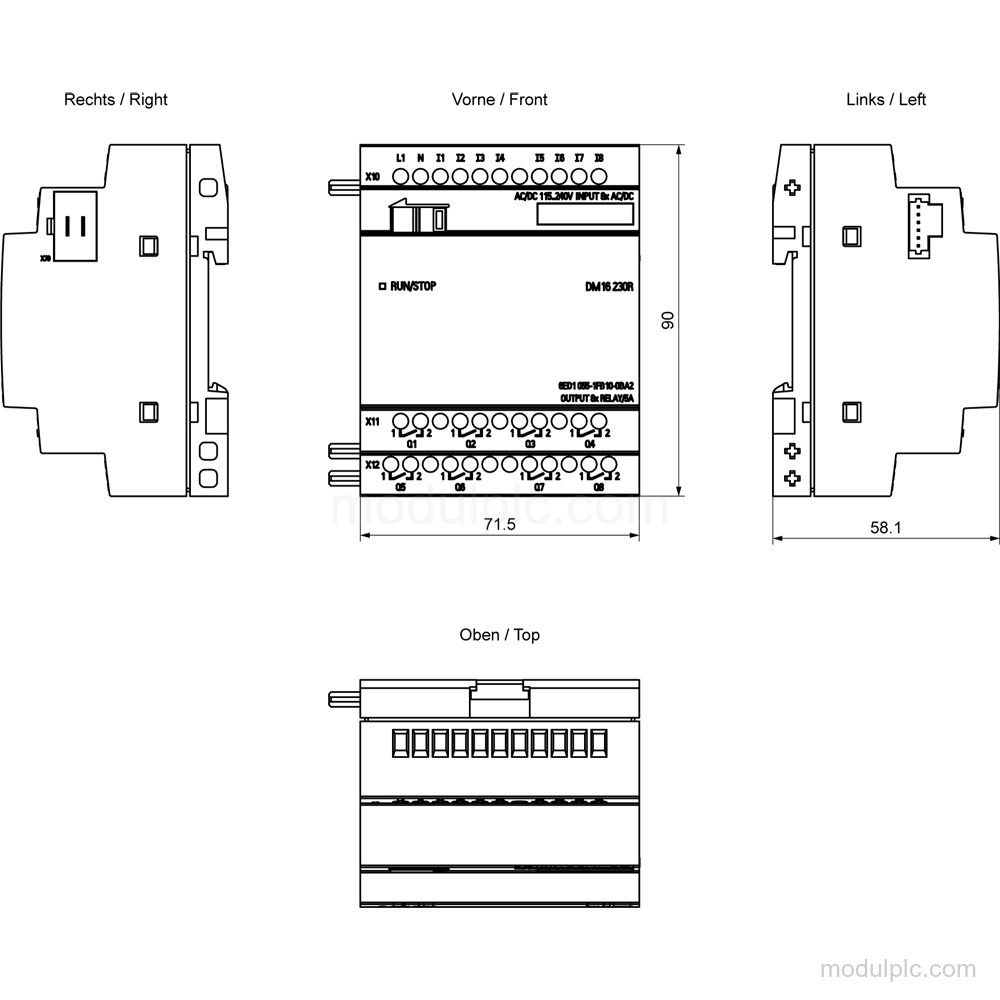

| Mounting | 35 mm DIN rail, 4 spacing units wide |
| Line frequency range | 47 Hz to 63 Hz |
| Protection degree | IP20 |
Applications
- Digital signal acquisition: The 8 digital inputs acquire AC/DC digital signals.
- Relay output switching: The 8 relay outputs switch digital loads and can control a digital input.
Key Features

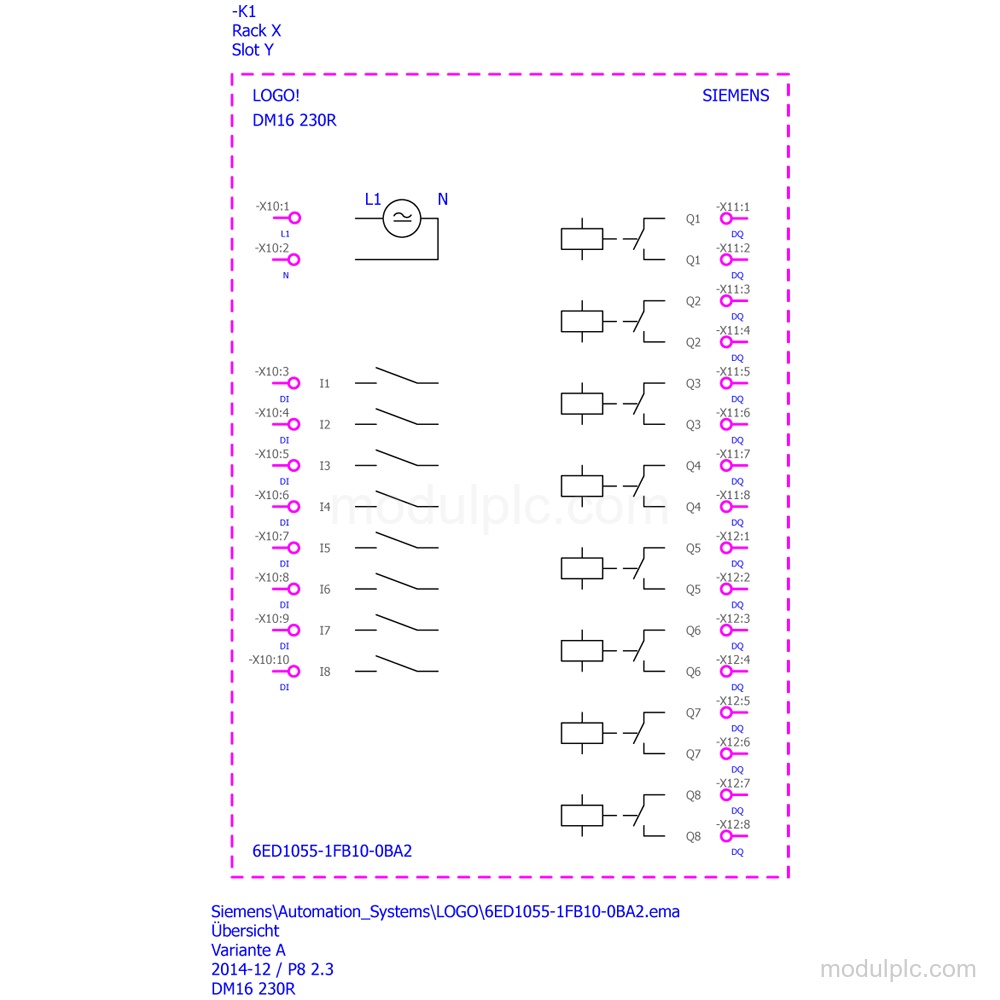

- Digital I/O: 8 digital inputs and 8 relay digital outputs.
- Input voltage: AC/DC inputs: signal 0 is < 40 V AC or < 30 V DC; signal 1 is > 79 V AC or > 79 V DC.
- Rated voltage: Rated values include 115 V AC/DC and 230 V AC/DC; permissible DC range is 100 V to 253 V.
- Relay output current: Rated output current is 5 A, with a minimum load current of 100 mA.
- Mounting: Mounts on a 35 mm DIN rail and is 4 spacing units wide.
- Protection: IP20 degree of protection; short-circuit protection is not provided for the digital outputs.
Frequently Asked Questions
1. What I/O does the Siemens 6ED1055-1FB10-0BA2 have?
It has 8 digital inputs and 8 relay digital outputs.
2. What input signals does this LOGO! DM16 230R accept?
The inputs are AC/DC. Signal 0 is < 40 V AC or < 30 V DC, and signal 1 is > 79 V AC or > 79 V DC.
3. What is the rated output current?
The rated output current is 5 A, with a minimum load current of 100 mA.
4. How is the module mounted?
It mounts on a 35 mm DIN rail and is 4 spacing units wide.
5. Does it have short-circuit protection for the digital outputs?
No, short-circuit protection is not provided.
