Product Overview
Technical Summary
| Parameter | Value |
|---|---|

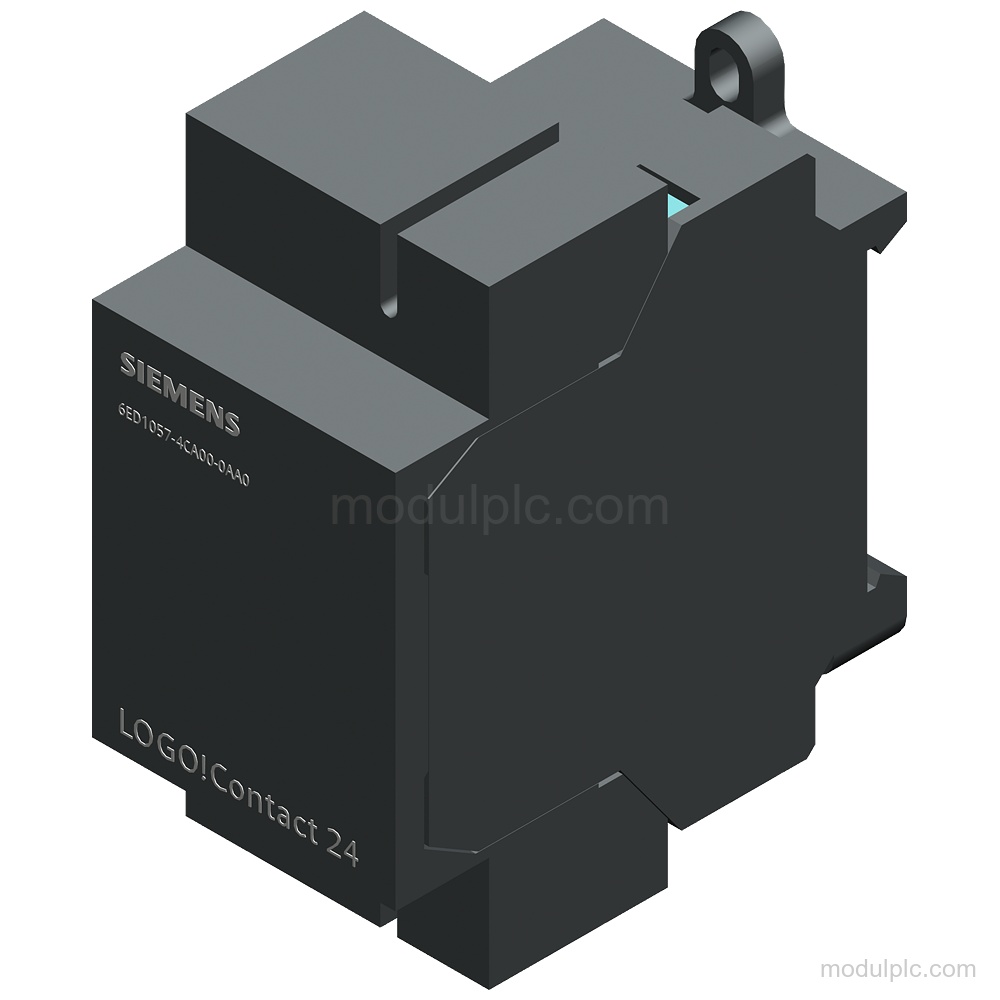

| Module type | LOGO! contact 24 switching module |
| Switching function | Direct switching of resistive loads and motors |
| Resistive-load capacity | Up to 20 A |
| Motor capacity | Up to 4 kW |
| Rated supply voltage | 24 V DC |
| Contact configuration | 3 NO contacts+1 NC contact |
| Product lifecycle | Active Product |
Applications
- Resistive-load switching: Direct switching of resistive loads up to 20 A.
- Motor switching: Direct switching of motors up to 4 kW.
Key Features
- Direct switching: Directly switches resistive loads up to 20 A and motors up to 4 kW.
- Contact configuration: Has 3 NO contacts and 1 NC contact.
- Rated supply voltage: Rated supply voltage: 24 V DC.
- Product lifecycle: Product lifecycle: Active Product.
- Net weight: Net weight: 0.159 kg.
- Packaging dimensions: Packaging dimensions (L × W × H): 7.00 × 6.10 × 3.70 cm.
Frequently Asked Questions
1. What is the function of Siemens 6ED1057-4CA00-0AA0?
It is a LOGO! contact 24 switching module for direct switching of resistive loads up to 20 A and motors up to 4 kW.
2. What supply voltage does this switching module use?
The rated supply voltage is 24 V DC.
3. How many contacts does the module have?
It has 3 NO contacts and 1 NC contact.
4. What load ratings should be verified before inquiry?
Verify the resistive-load limit of up to 20 A and the motor limit of up to 4 kW for the intended application.
