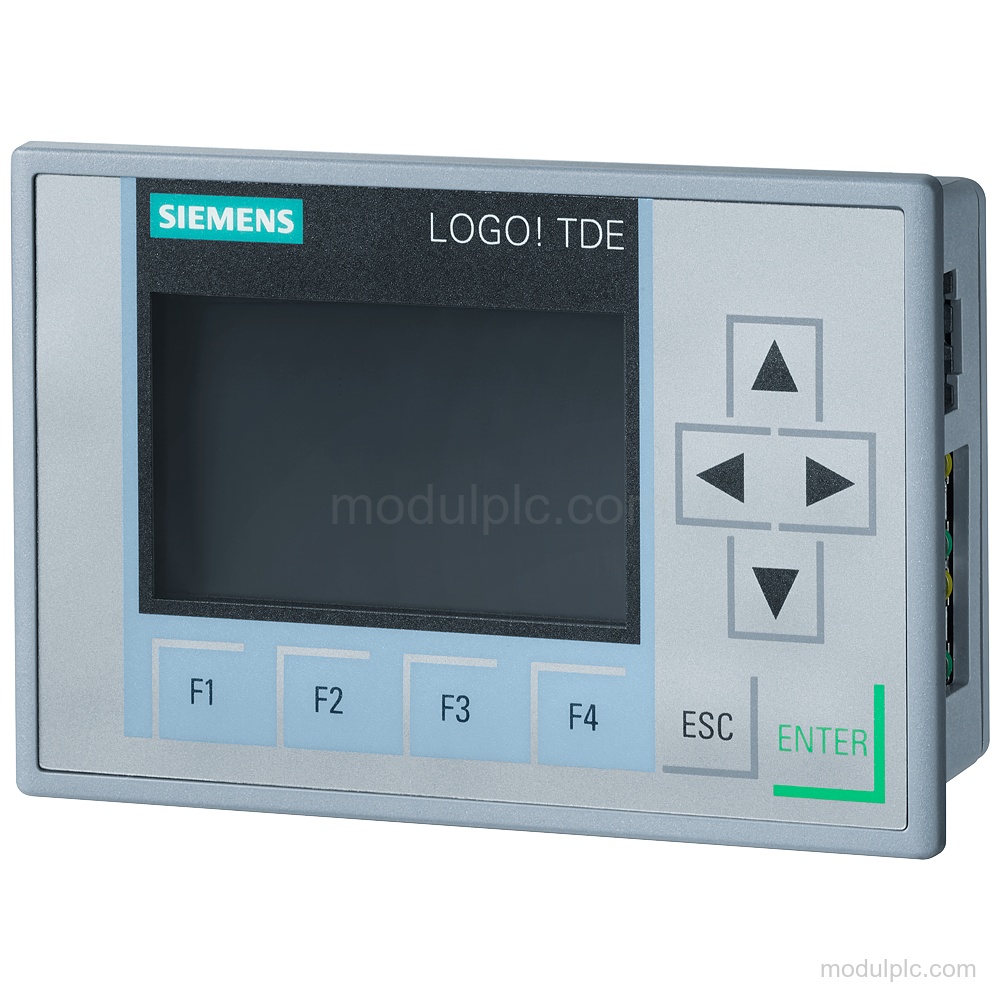

Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Product type | Text display |
| Display design | FSTN |
| Lines | 6 |
| Characters per line | 20 |
| Ethernet ports | 2 |
| Backlighting | LED |
| Supply voltage type | AC/DC |
| Rated supply values | 12 V; 12/24 V DC, 24 V AC |
| Power loss, typ. | 1.8 W; At 24 V DC |
| Front protection | IP65 |
Applications
- Text display: Displays text through the 6-line FSTN display for use with LOGO! 8 and higher.
Key Features
- 6-line FSTN display: The display has 6 lines and 20 characters per line.
- Three background colors: The text display has 3 background colors with LED backlighting.
- Two Ethernet ports: The LOGO! TDE has 2 Ethernet ports.
- AC/DC supply: The supply voltage type is AC/DC; rated values are 12 V and 12/24 V DC, 24 V AC.
- System keys: System keys are included; the number of configurable system keys is 0, and there is no alphanumeric keyboard.
- Front protection: The degree of protection at the front is IP65.
Frequently Asked Questions
1. What type of display is Siemens 6ED1055-4MH08-0BA1?
It is a LOGO! TDE text display with an FSTN display, 6 lines, and 20 characters per line.
2. How many Ethernet ports does the 6ED1055-4MH08-0BA1 have?
It has 2 Ethernet ports.
3. What supply voltage does this text display use?
The supply voltage type is AC/DC, with rated values of 12 V; 12/24 V DC, 24 V AC.
4. Does the display have front protection?
Yes. The degree of protection at the front is IP65.
