Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Digital inputs | 8 |
| Digital outputs | 8; Relays |
| Rated supply | 24 V DC |
| Permissible supply range | 20.4 V to 28.8 V |
| Input signal 0 | < 5 V DC |
| Input signal 1 | > 12 V DC |
| Rated output current | 5 A |
| Minimum load current | 100 mA |

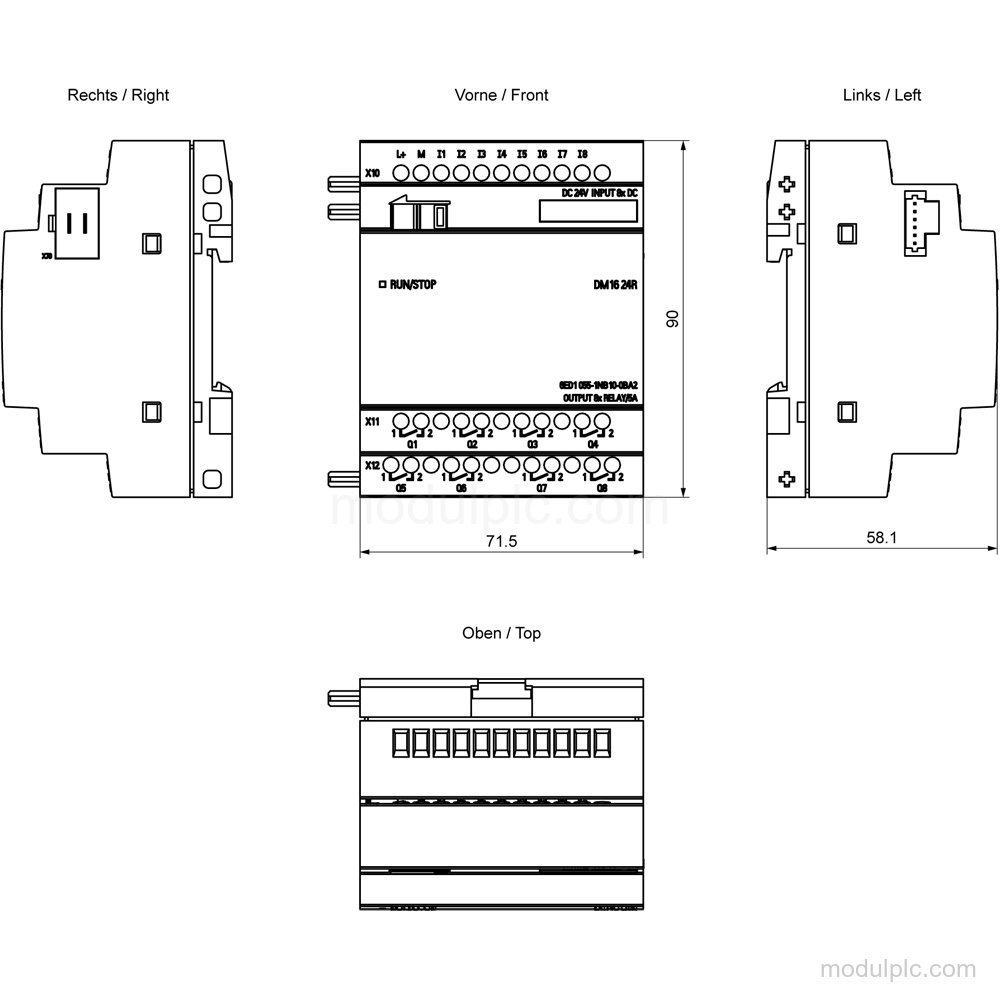

| Mounting | 35 mm DIN rail, 4 spacing units wide |
| Protection | IP20 |
| Product lifecycle | Active Product |
Applications
- Digital signal acquisition: Provides 8 DC digital inputs for acquiring digital signals.
- Relay output control: Provides 8 relay outputs for switching connected loads.
Key Features

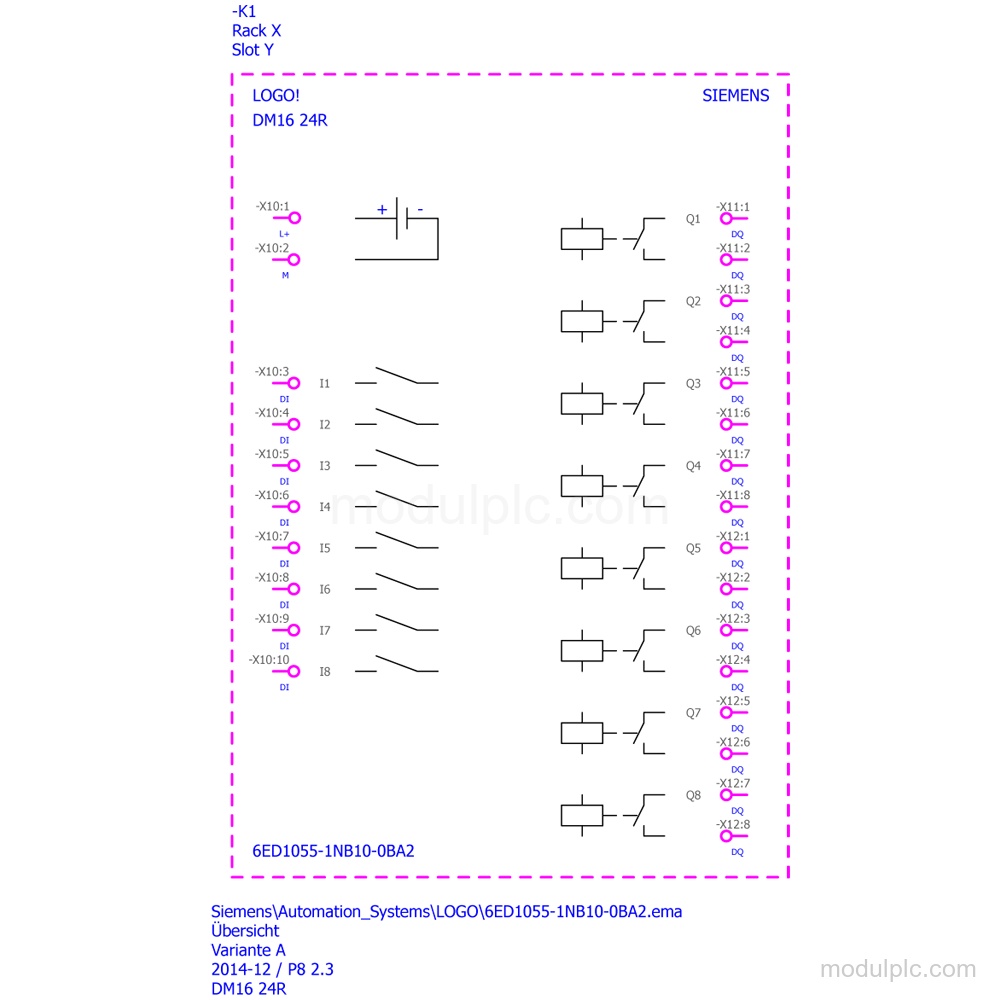

- Digital I/O: 8 digital inputs and 8 relay digital outputs.
- DC supply: Rated supply: 24 V DC; permissible range: 20.4 V to 28.8 V.
- Input signals: Signal 0: < 5 V DC; signal 1: > 12 V DC.
- Relay output data: Rated output current for signal 1: 5 A; minimum load current: 100 mA.
- Output switching: Maximum switching frequency: 2 Hz with resistive load and 0.5 Hz with inductive load.
- Mounting and protection: Mounts on a 35 mm DIN rail, is 4 spacing units wide, and has IP20 protection.
Frequently Asked Questions
1. How many digital inputs and outputs does the 6ED1055-1NB10-0BA2 have?
It has 8 digital inputs and 8 relay digital outputs.
2. What supply voltage does this LOGO! DM16 24R module use?
Its rated supply is 24 V DC, with a permissible range from 20.4 V to 28.8 V.
3. How is the 6ED1055-1NB10-0BA2 mounted?
It mounts on a 35 mm DIN rail and is 4 spacing units wide.
