Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Digital inputs | 4 |
| Digital outputs | 4; relays |
| Rated DC values | 12 V DC; 24 V DC |
| Permissible DC range | 10.8 V to 28.8 V |
| Input signal "0" | < 5 V DC |
| Input signal "1" | > 8.5 V |
| Output current, rated signal "1" | 5 A |
| Minimum output load current | 100 mA |
| Mounting | 35 mm DIN rail; 2 spacing units wide |
| Protection | IP20 |
| Product lifecycle | Active Product |
Applications
- Digital signal acquisition: Provides 4 digital inputs for acquiring DC digital signals.
- Relay output control: Provides 4 relay outputs for controlling digital inputs and switching loads.
Key Features

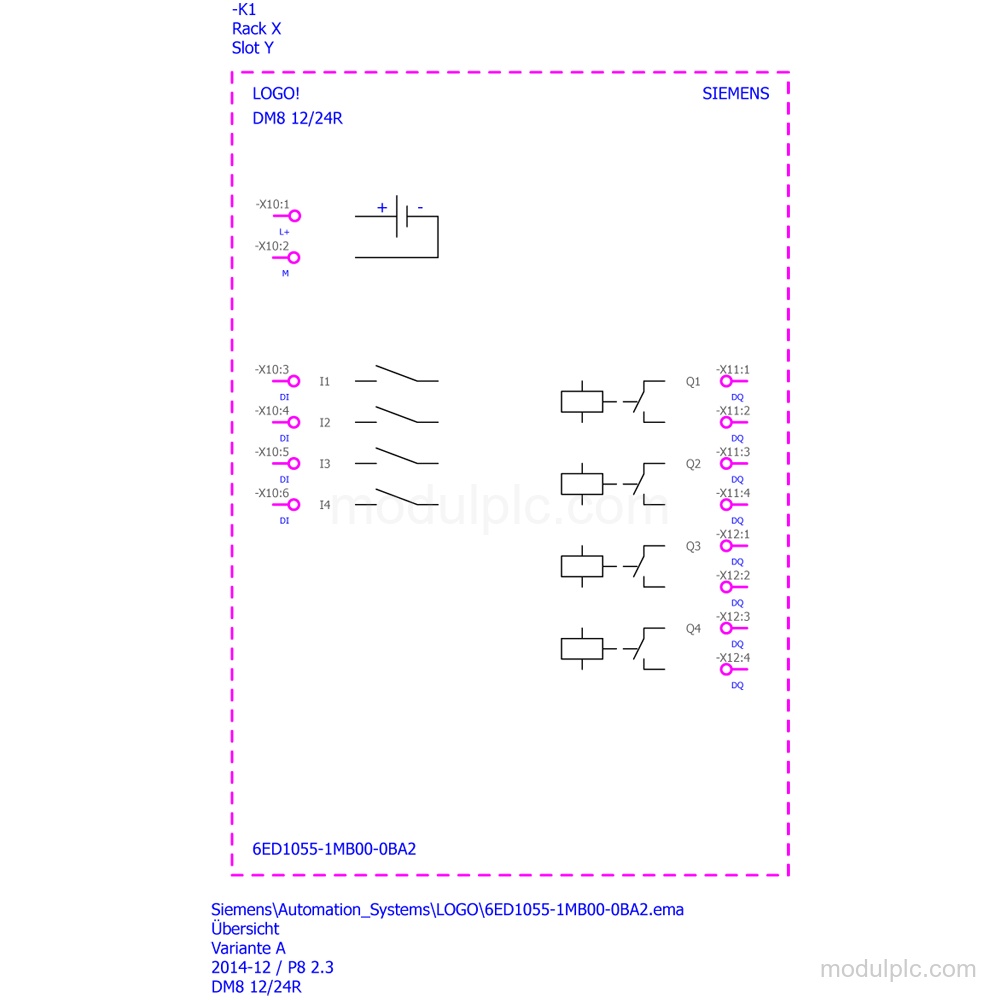

- Digital I/O: 4 digital inputs and 4 digital outputs with relays.
- DC supply ratings: Rated values are 12 V DC and 24 V DC; the permissible range is 10.8 V to 28.8 V.
- Digital input signals: Input voltage is DC; signal "0" is < 5 V DC and signal "1" is > 8.5 V.
- Relay output capacity: Signal "1" rated output current is 5 A, with a minimum load current of 100 mA.

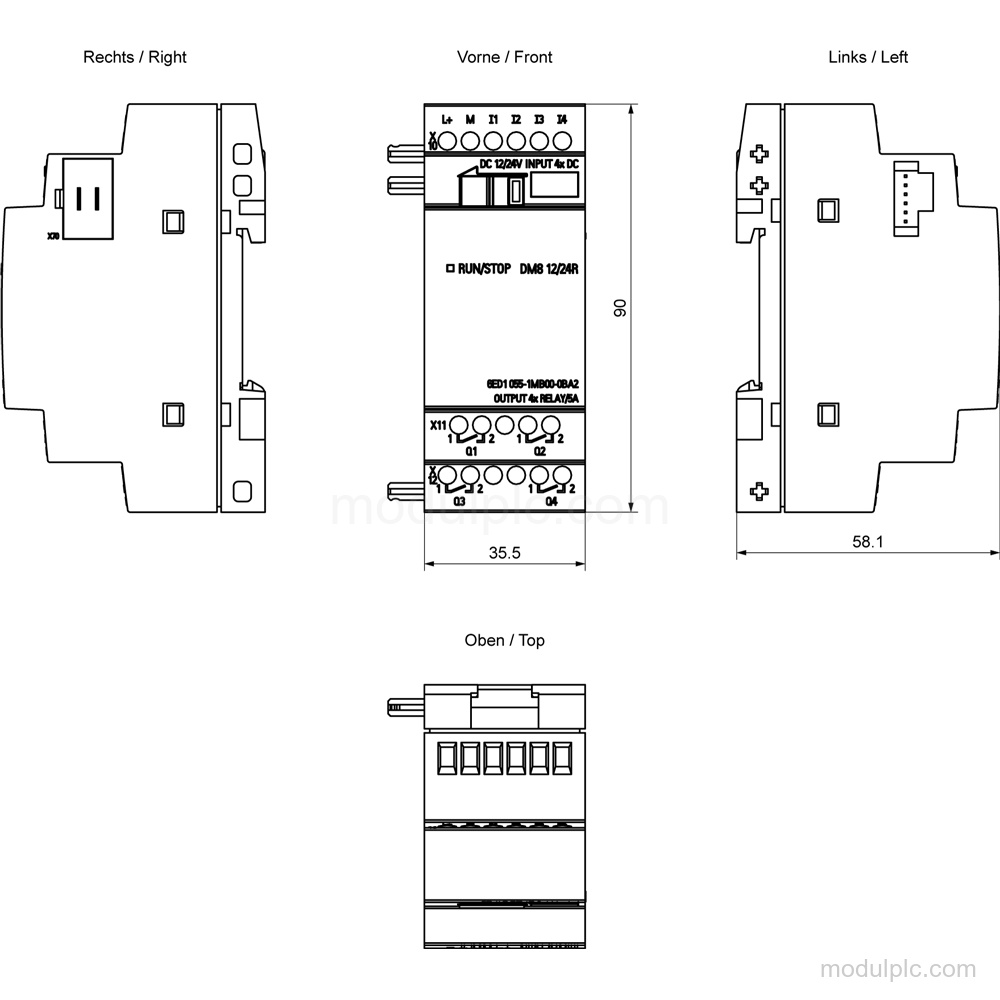

- Mounting: Mounts on a 35 mm DIN rail and is 2 spacing units wide.
- Protection and switching: IP20 protection; maximum switching frequency is 2 Hz with resistive load and 0.5 Hz with inductive load. Short-circuit protection is not provided for the digital outputs.
Frequently Asked Questions
1. How many digital inputs and outputs does Siemens 6ED1055-1MB00-0BA2 have?
It has 4 digital inputs and 4 digital outputs with relays.
2. What DC values and permissible range does this module support?
Its rated values are 12 V DC and 24 V DC, with a permissible range of 10.8 V to 28.8 V.
3. What are the digital input signal thresholds?
Signal "0" is < 5 V DC, and signal "1" is > 8.5 V.
4. What is the rated output current and minimum load current?
The rated output current for signal "1" is 5 A, and the minimum load current is 100 mA.
5. How is the module mounted and protected?
It mounts on a 35 mm DIN rail, is 2 spacing units wide, and has IP20 protection.
