Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Analog input channels | 2 |
| Voltage input range | 0 to +10 V |
| Current input range | 0 mA or 4 mA to 20 mA |
| Rated supply | 12 V DC; 24 V DC |
| Supply range | 10.8 V DC to 28.8 V DC |
| Typical current consumption | 30 mA |

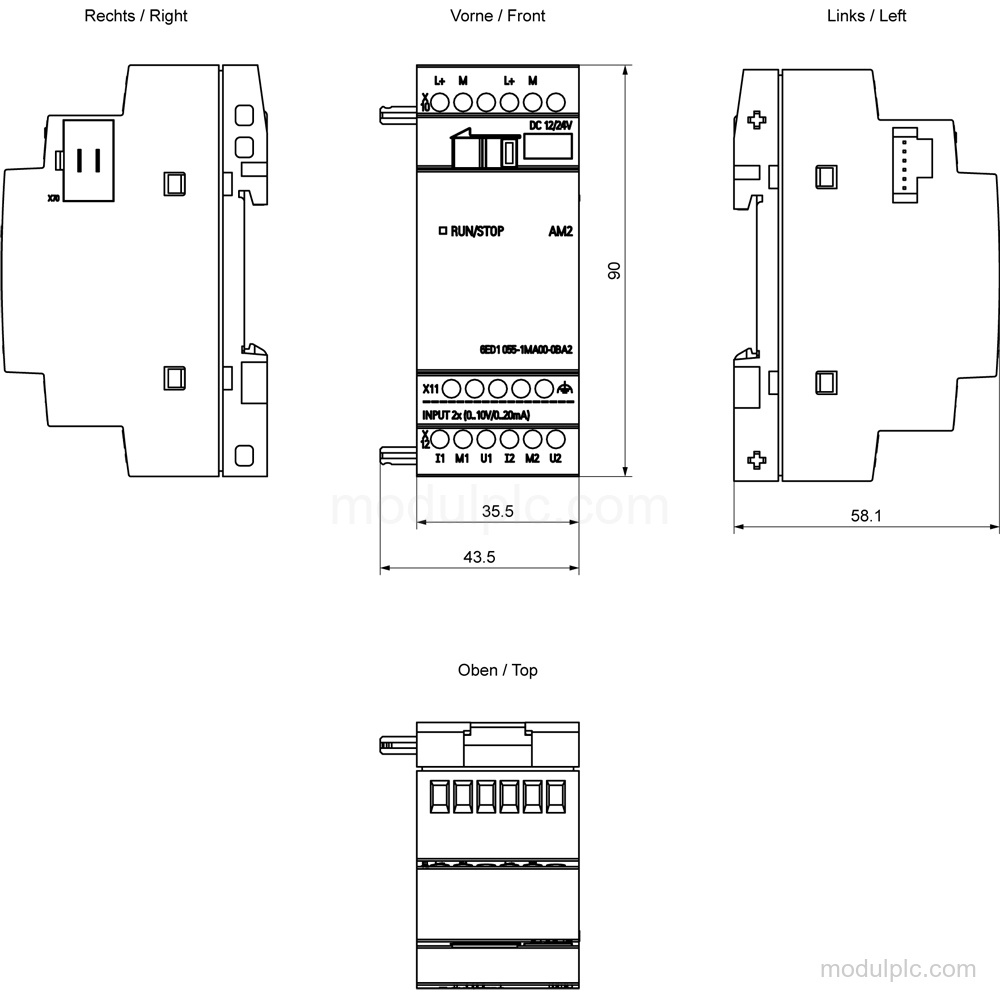

| Mounting | 35 mm DIN rail, 2 spacing units wide |
| Protection | IP20 |
Key Features
- Analog inputs: Has 2 analog inputs.
- Input signal ranges: Supports 0 to +10 V and 0 mA or 4 mA to 20 mA.
- Supply voltage: Rated for 12 V DC and 24 V DC; supply range: 10.8 V DC to 28.8 V DC.
- Mounting: Mounts on a 35 mm DIN rail and is 2 spacing units wide.
- Current consumption: Typical current consumption is 30 mA.
- Protection: IP degree of protection: IP20.
Frequently Asked Questions
1. What is the function of Siemens 6ED1055-1MA00-0BA2?
It is a LOGO! AM2 expansion module for LOGO! 8 with 2 analog inputs.
2. Which analog input signals does it support?
It supports 0 to +10 V and 0 mA or 4 mA to 20 mA.
3. What supply voltage does this module use?
It has rated values of 12 V DC and 24 V DC, with a supply range of 10.8 V DC to 28.8 V DC.
4. How is the module mounted?
It mounts on a 35 mm DIN rail and is 2 spacing units wide.
