Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Module type | F-AI 8xI 0(4) … 20 mA |
| Analog input channels | 8 |
| Rated input ranges | 0 to 20 mA; 4 mA to 20 mA |
| Maximum resolution | 16 bit |
| Rated supply voltage | 24 V DC |
| Encoder-supply outputs | 8 |
| Maximum encoder output current per channel | 300 mA |
| Integration time | 20 / 16,667 ms |
| Safety level | PLe / Cat. 4 according to ISO 13849-1; SIL 3 according to IEC 61508 |
Applications

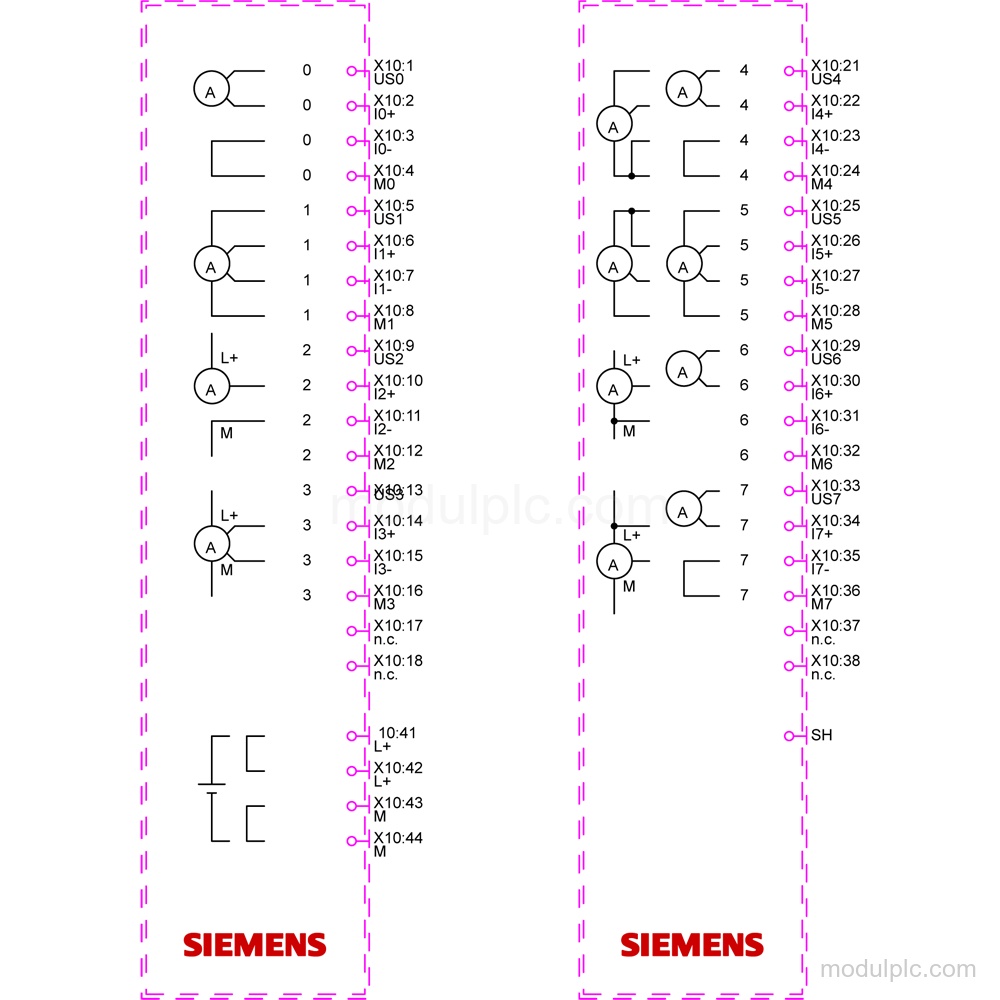

- Current signal acquisition: Acquires current measurements from 2-wire and 4-wire transducers using 0 to 20 mA or 4 mA to 20 mA input ranges.
Key Features

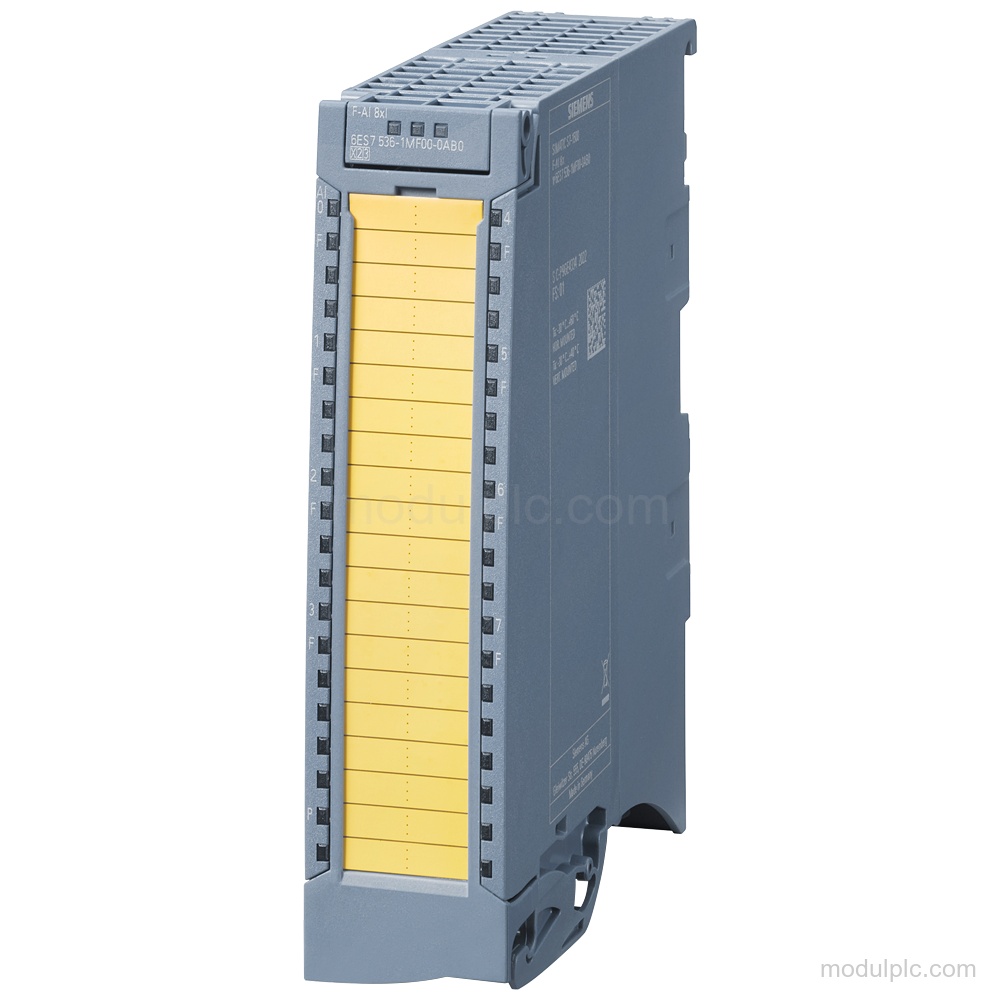

- F-analog input module: Product type F-AI 8xI 0(4) … 20 mA with 8 analog inputs.
- Current input ranges: Supports rated input ranges of 0 to 20 mA and 4 mA to 20 mA, with 150 Ω input resistance for each range.
- Resolution and conversion: Provides maximum 16 bit resolution with parameterizable integration time of 20 / 16,667 ms.
- Supply and encoder outputs: Rated supply voltage is 24 V DC, with 8 encoder-supply outputs and maximum output current of 300 mA per channel.
- Diagnostics and isolation: Includes diagnostic function, diagnostic alarm, supply-voltage monitoring, wire-break and short-circuit diagnostics, and isolation between channels and the backplane bus.

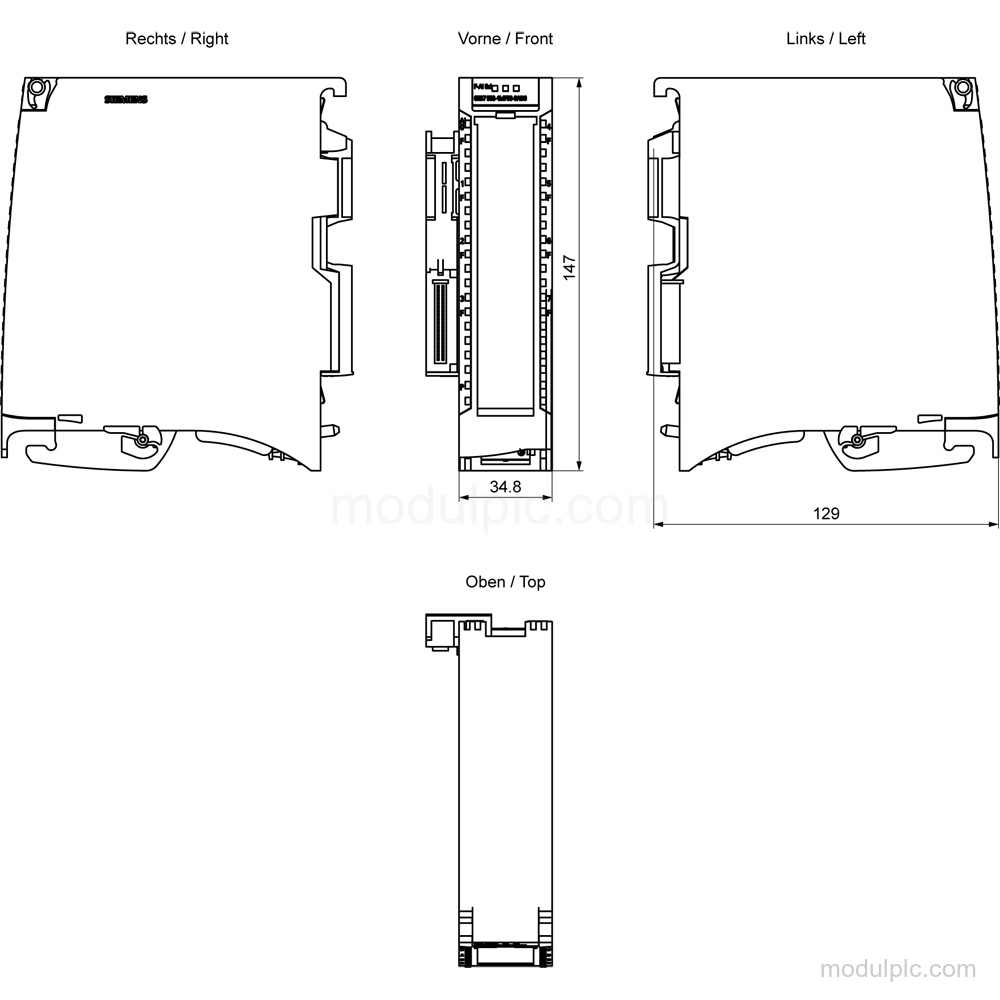

- Installation and dimensions: The module is 35 mm wide, 147 mm high, and 129 mm deep; permissible ambient temperature is 0 °C to 60 °C for horizontal installation and 0 °C to 40 °C for vertical installation.
Frequently Asked Questions
1. What type of module is Siemens 6ES7536-1MF00-0AB0?
It is a SIMATIC S7-1500 F-analog input module, F-AI 8xI 0(4) … 20 mA.
2. How many analog inputs does the module have?
It has 8 analog inputs.
3. Which current signal ranges are supported?
It supports 0 to 20 mA and 4 mA to 20 mA rated input ranges.
4. What supply voltage does the module require?
The rated supply voltage is 24 V DC, with a permissible range of 19.2 V to 28.8 V DC.
5. What should be verified before requesting a quote?
Verify the required input range, transducer connection, installation orientation, cable length, and model number 6ES7536-1MF00-0AB0.
