Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Load voltage L+ rated value | 24 V |
| Digital outputs | 2 |
| Output current for signal "1", rated value | 2 A |
| Input current from load voltage L+ (no load), typ. | 100 mA |
| Power loss, typ. | 4 W |
| Diagnostics | Wire break, short-circuit, and missing load voltage |
| Safety performance | Category 4 according to EN 954; Performance Level e according to ISO 13849-1; up to SIL 3 according to IEC 61508 |
| Product lifecycle | Product cancellation |
Applications
- Fail-safe voltage-bus switching: The product description states that the module switches the voltage buses P1 and P2 in an ungrounded setup up to Category 3, SIL2, and PL d.
- Fail-safe digital output switching: The product description states that its 2 fail-safe digital outputs switch loads up to Category 4, SIL3, and PL e.
Key Features
- 24 V DC load voltage: Rated load voltage L+ is 24 V; reverse polarity protection is No.
- 2 fail-safe digital outputs: The module has 2 digital outputs with short-circuit protection and a rated output current of 2 A for signal "1".
- PROFIsafe and PROFINET use: The collected product description identifies the module for PROFIsafe and states that it can also be used in a PROFINET configuration with IM 151-3 HF.
- Output diagnostics: Diagnostics include wire break, short-circuit, and missing load voltage; diagnostic information is readable and LED indications are provided.
- Safety performance: The highest safety class achievable in safety mode is Category 4 according to EN 954, Performance Level e according to ISO 13849-1, and up to SIL 3 according to IEC 61508.

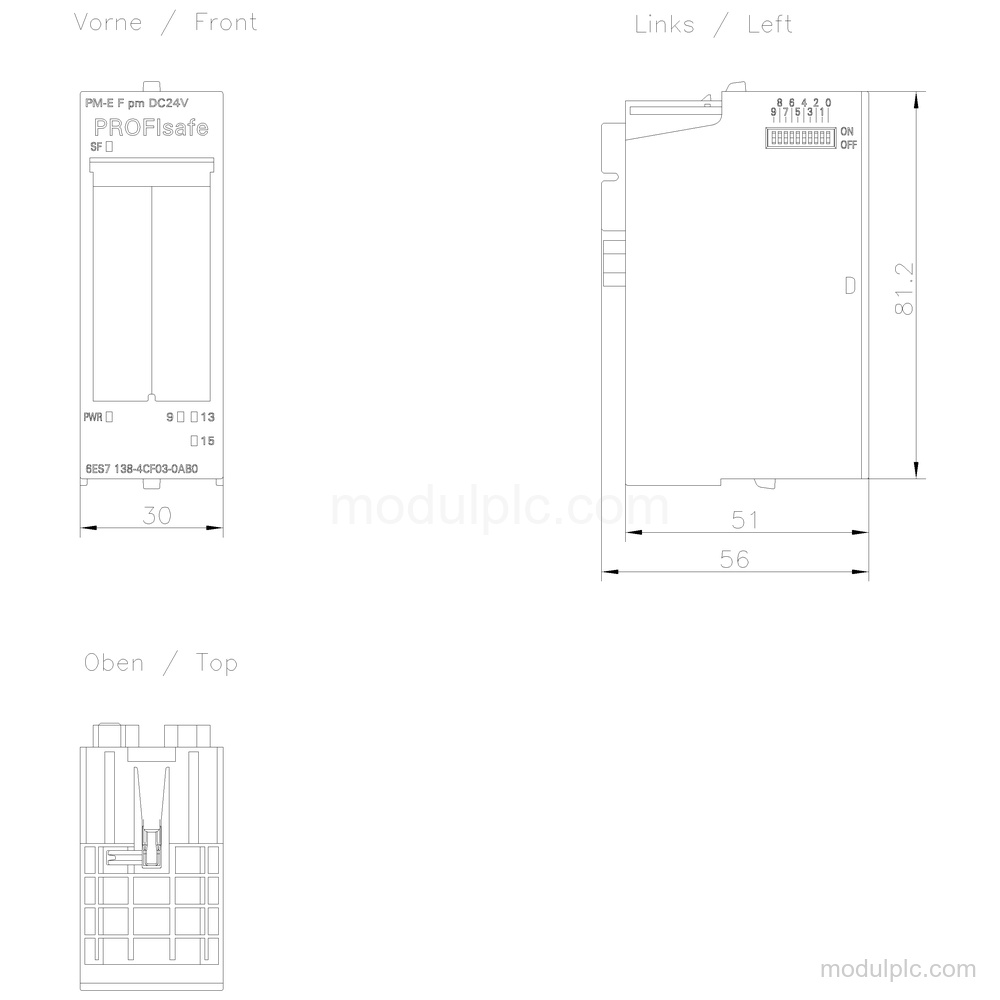

- Compact installation dimensions: Dimensions are 30 mm wide, 81 mm high, and 52 mm deep; approximate weight is 88 g.
Frequently Asked Questions
1. What function does 6ES7138-4CF03-0AB0 provide?
It is a SIMATIC DP Power Module PM-E F PROFIsafe for ET200S with 2 fail-safe digital outputs and switching of voltage buses P1 and P2 in an ungrounded setup.
2. How many digital outputs does the module have?
It has 2 digital outputs.
3. What diagnostics are available?
The module provides readable diagnostic information for wire break, short-circuit, and missing load voltage, with LED indications.
4. What supply and output-current values should be verified?
The rated load voltage L+ is 24 V. Output current for signal "1" is rated at 2 A, with a permissible range of 20 mA to 2.4 A for 0 to 60 °C.
5. Does the module include reverse polarity protection?
It is without reverse polarity protection.
