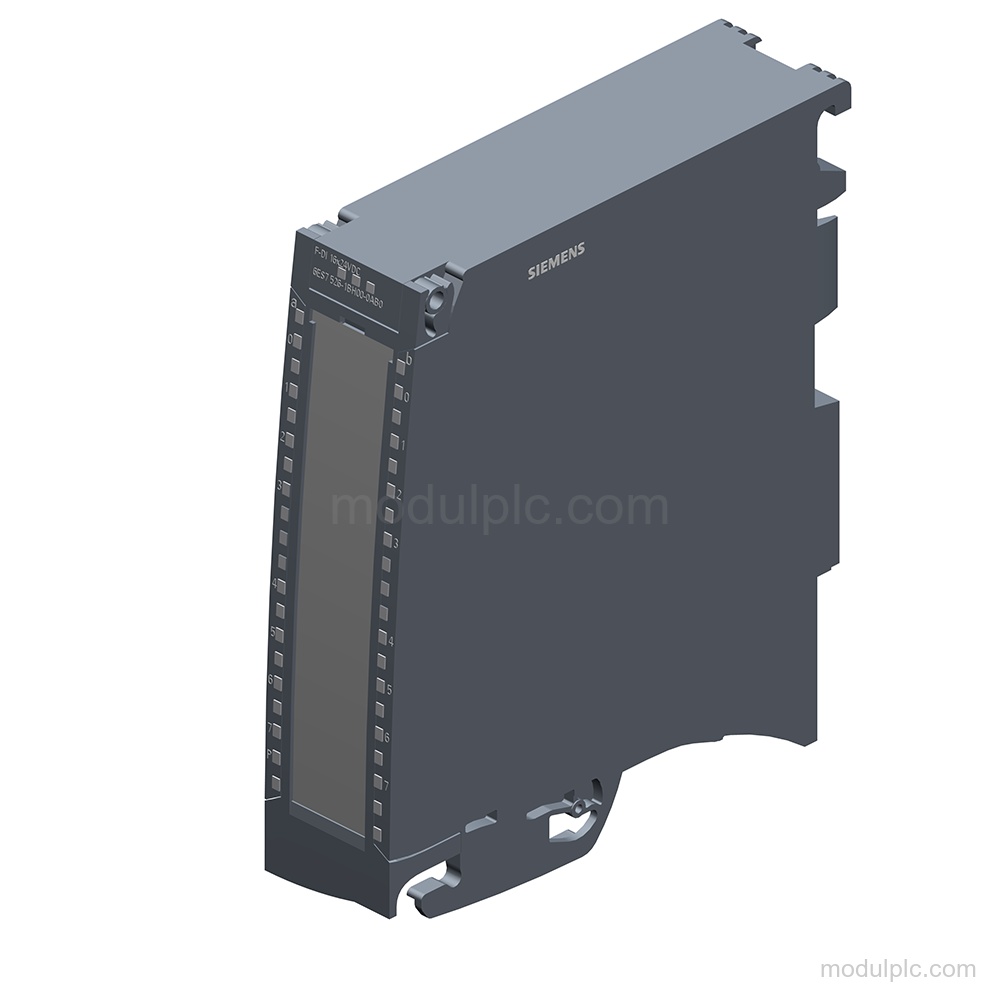

Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Module type | F-DI 16x24VDC |
| Digital inputs | 16 |
| Rated input voltage | 24 V DC |
| Signal "0" input voltage | -30 to +5 V |
| Signal "1" input voltage | +15 to +30 V |
| Rated supply voltage | 24 V DC |
| Permissible supply range | 19.2 V to 28.8 V |
| Current consumption | 50 mA rated; 60 mA maximum, without load |
| Diagnostics | Supply-voltage monitoring, short-circuit detection, group error, diagnostic alarm |
| Isolation test | 707 V DC (type test) |
Applications
- Digital signal acquisition: Acquires digital signals through 16 F-DI inputs with 24 V DC signal thresholds.
Key Features
- F-DI digital inputs: 16 digital inputs with a 24 V rated input voltage and IEC 61131 type 1 input characteristic.
- Input signal ranges: Signal "0": -30 to +5 V; signal "1": +15 to +30 V.
- PROFIsafe module: F-DI module for PROFIsafe with product type designation F-DI 16x24VDC.
- Diagnostics: Diagnostics, diagnostic alarms, supply-voltage monitoring, short-circuit detection, and group error indication are supported.
- Supply and power: Rated supply voltage: 24 V; permissible range: 19.2 V to 28.8 V. Current consumption: 50 mA rated, 60 mA maximum, without load.

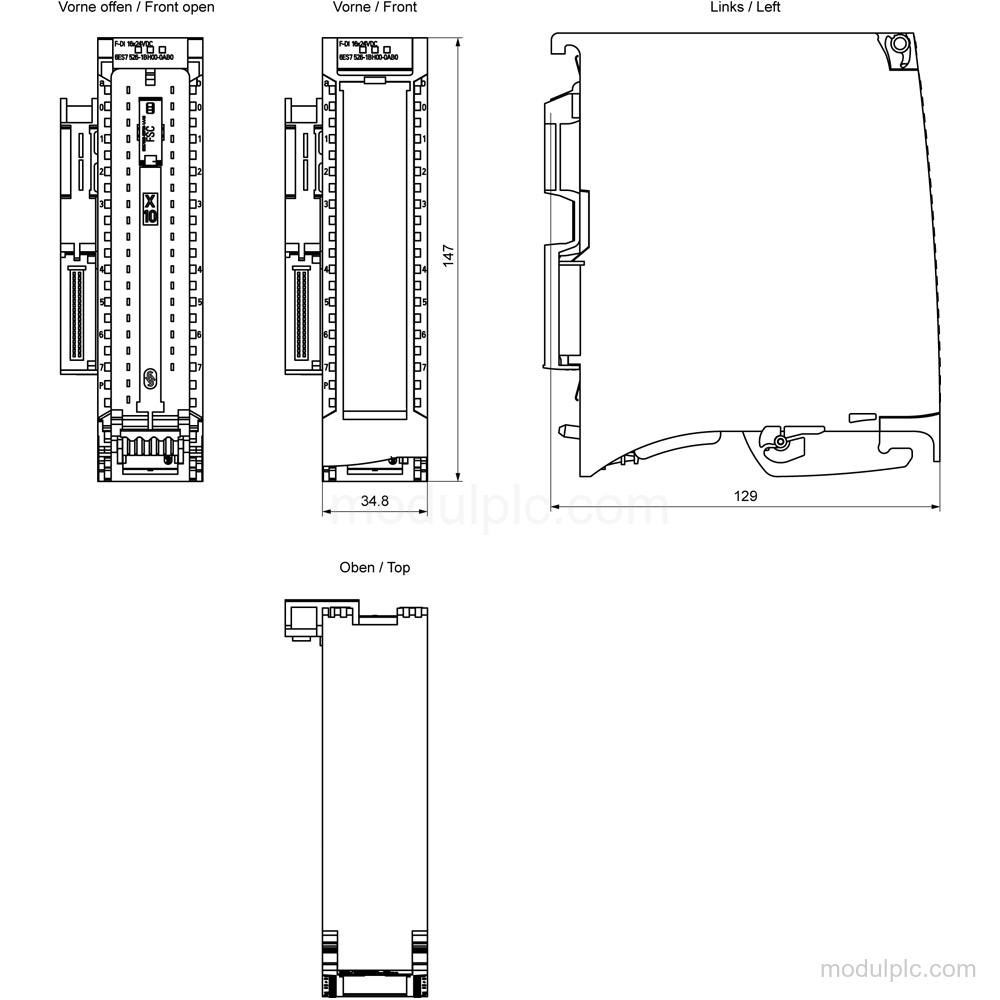

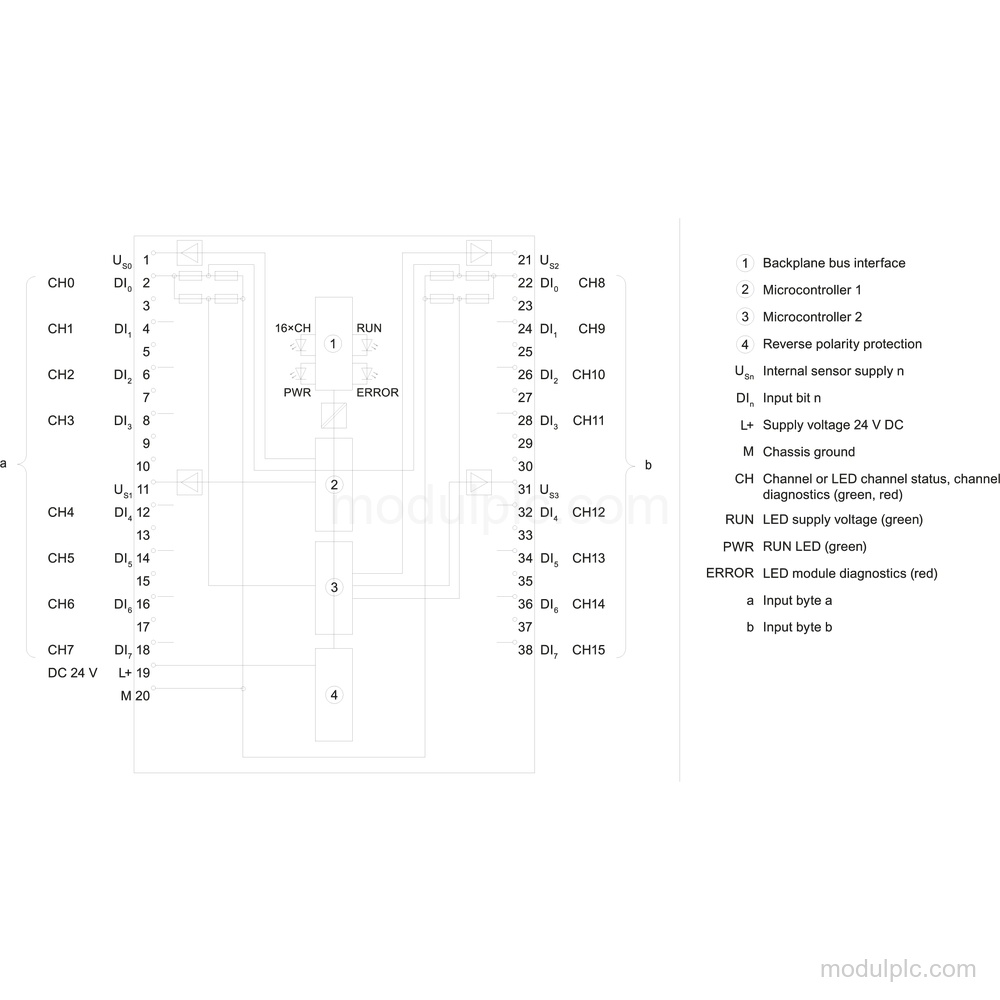

- Isolation and installation: Channels are isolated from the backplane bus. Module width is 35 mm; isolation is tested with 707 V DC.
Frequently Asked Questions
1. How many digital inputs does the 6ES7526-1BH00-0AB0 have?
It has 16 digital inputs.
2. What input voltage signals does this F-DI module support?
The input range for signal "0" is -30 to +5 V, and the input range for signal "1" is +15 to +30 V.
3. What supply voltage does the module require?
The rated supply voltage is 24 V DC, with a permissible range of 19.2 V to 28.8 V.
4. What diagnostics are available?
The module supports supply-voltage monitoring, short-circuit detection, group error indication, diagnostic alarms, and diagnostic LEDs.
5. What should be verified before requesting a quote?
Verify the required F-DI function, 16-channel configuration, signal ranges, supply range, PROFIsafe requirement, and 35 mm module width.
