Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Module type | SM 1226 F-DQ 4x 24 VDC |
| Digital outputs | 4 |
| Output grouping | In groups of 1 |
| Rated output voltage | 24 V DC |
| Signal "1" output current, rated | 2 A |
| Signal "1" output current, permissible range | 10 mA to 2.4 A |
| Switching frequency with resistive load, max. | 30 Hz |
| Switching frequency with lamp load, max. | 10 Hz |
| Supply voltage, permissible range | 20.4 V to 28.8 V DC |
| Communication and safety | PROFIsafe |

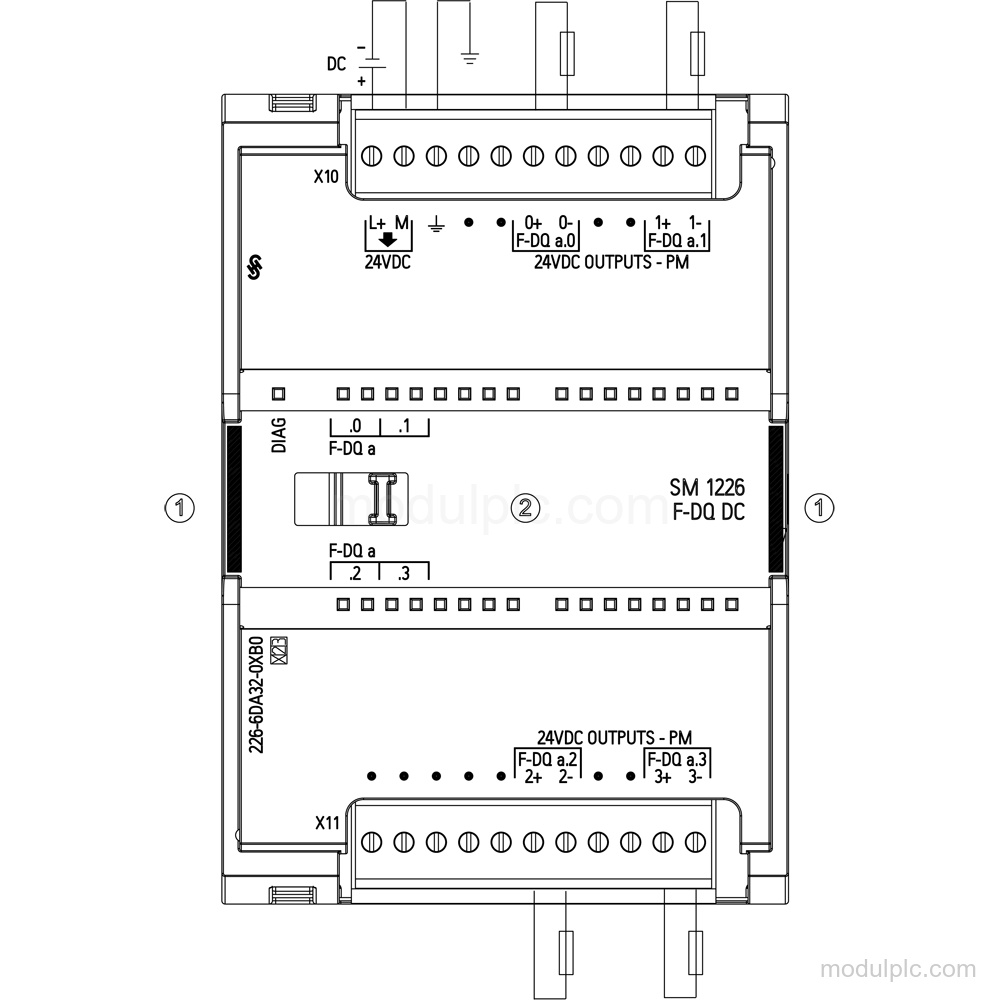

Key Features
- Digital output type: SM 1226 F-DQ 4x 24 VDC with 4 digital outputs in groups of 1.
- Output voltage and current: Rated output voltage is 24 V DC. Signal "1" output current is 2 A rated, with a permissible range of 10 mA to 2.4 A.
- Output protection and diagnostics: The outputs have short-circuit protection and LED status indication.
- Switching capacity: Maximum switching frequency is 30 Hz with resistive load and 10 Hz with lamp load.
- Supply and power loss: Permissible supply voltage is 20.4 V to 28.8 V DC. Typical power loss is 8 W, and maximum backplane bus current is 125 mA at 5 V DC.

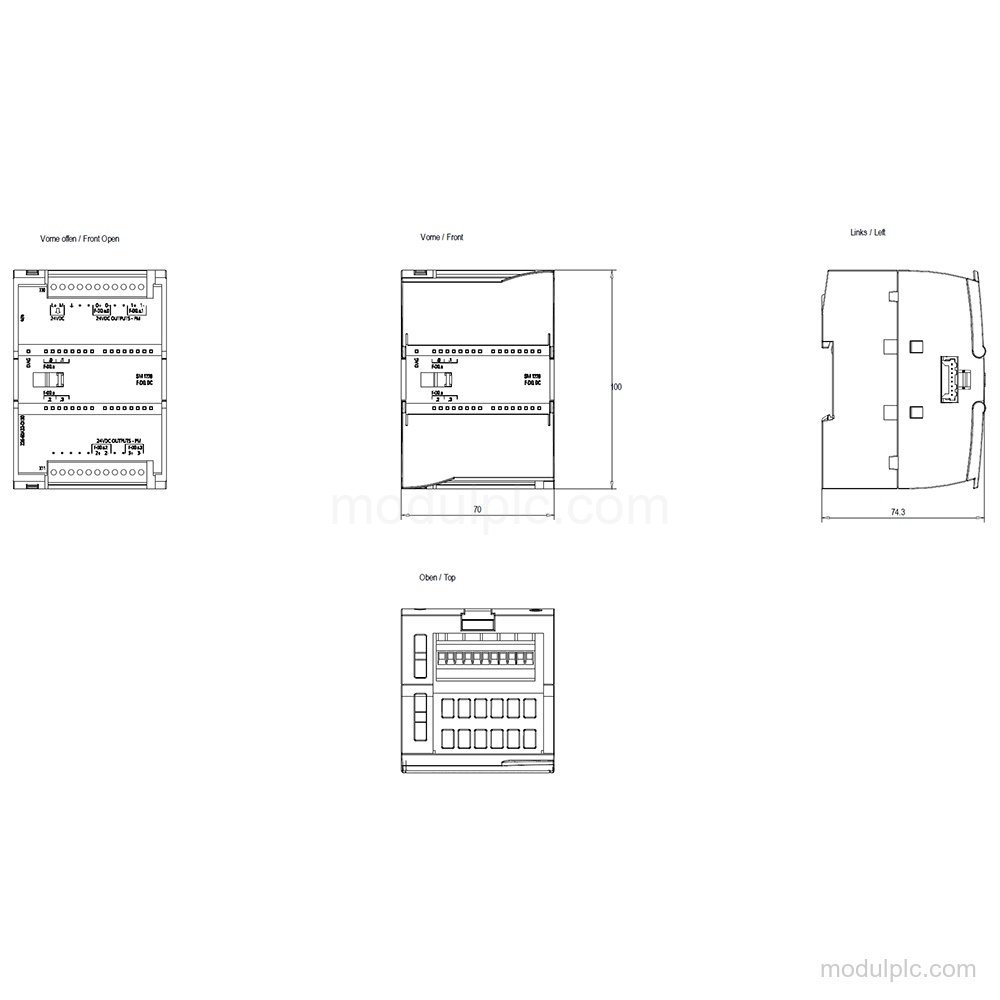

- Connection and protection: Maximum cable length is 200 m for shielded and unshielded cables. The degree of protection is IP20.
Frequently Asked Questions
1. How many digital outputs does Siemens 6ES7226-6DA32-0XB0 have?
It has 4 digital outputs in groups of 1.
2. What output voltage and current does this module support?
The rated output voltage is 24 V DC. Signal "1" output current is 2 A rated, with a permissible range of 10 mA to 2.4 A.
3. What switching frequencies are available?
The maximum switching frequency is 30 Hz with resistive load and 10 Hz with lamp load.
4. What supply voltage does the module require?
The permissible supply voltage range is 20.4 V to 28.8 V DC. A power supply according to NEC Class 2 is not required.
5. What should be verified before requesting a quote?
Verify the 4 F-DQ digital outputs, PROFIsafe, 24 V DC output voltage, IP20 protection, cable length up to 200 m, and the 70 mm overall width.
