Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Module type | F-RQ 24 … 48VDC/24 … 230VAC/5A ST |
| Output type | Relays |
| Digital outputs | 1 |
| Relay contacts | 2 NO contacts |
| Rated coil supply | 24 V DC |
| Rated switching voltage | 24 V DC; 230 V AC |
| Maximum resistive-load switching capacity | 5 A |
Applications
- Relay output control: Controls a digital input through its relay output.
- Load switching: Switches resistive and lamp loads within the stated output capacity.
Key Features

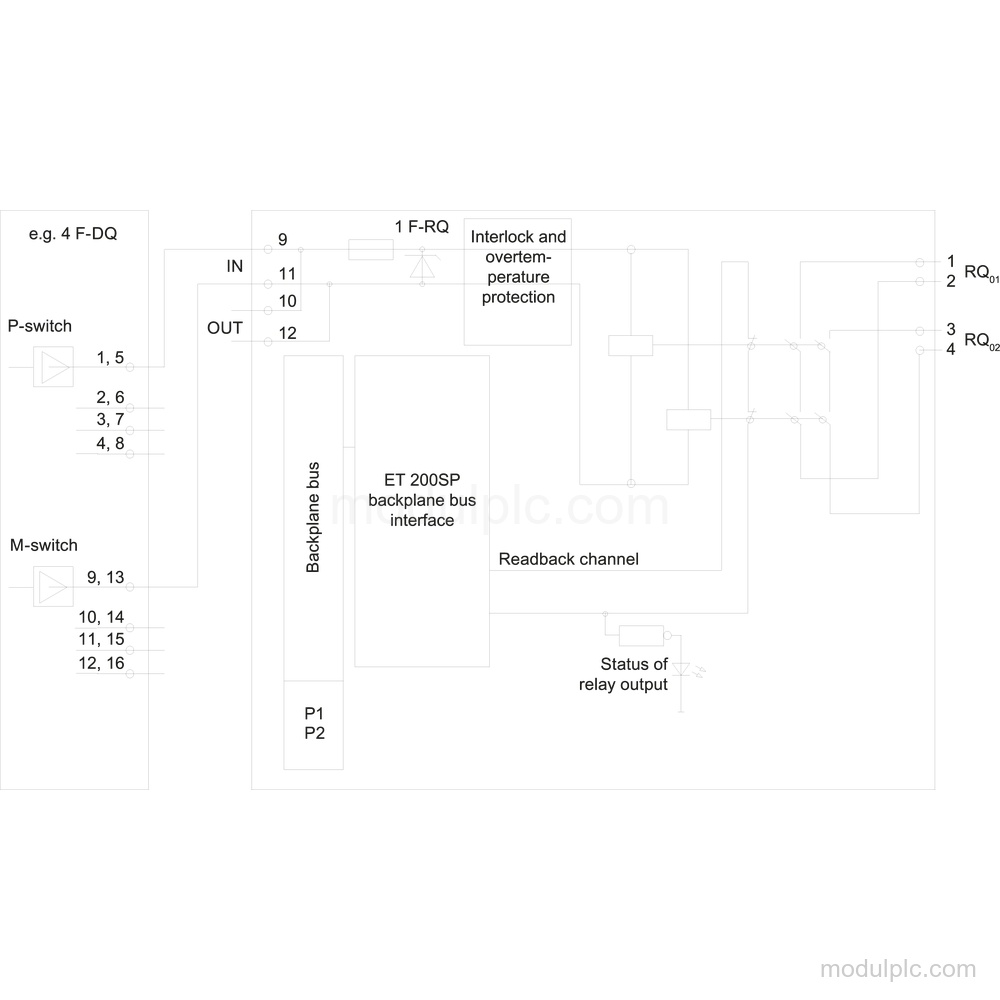

- Relay output: 1 relay output with 2 NO contacts; the output can control a digital input.
- Load voltage: Rated switching voltage: 24 V DC or 230 V AC.
- Switching capacity: Maximum switching capacity with resistive load: 5 A; maximum lamp load: 25 W.
- Supply and coil: Rated supply voltage: 24 V DC; maximum relay coil current: 70 mA.
- Diagnostics: Diagnostics function is available, with a green/red DIAG LED and green channel-status LED.

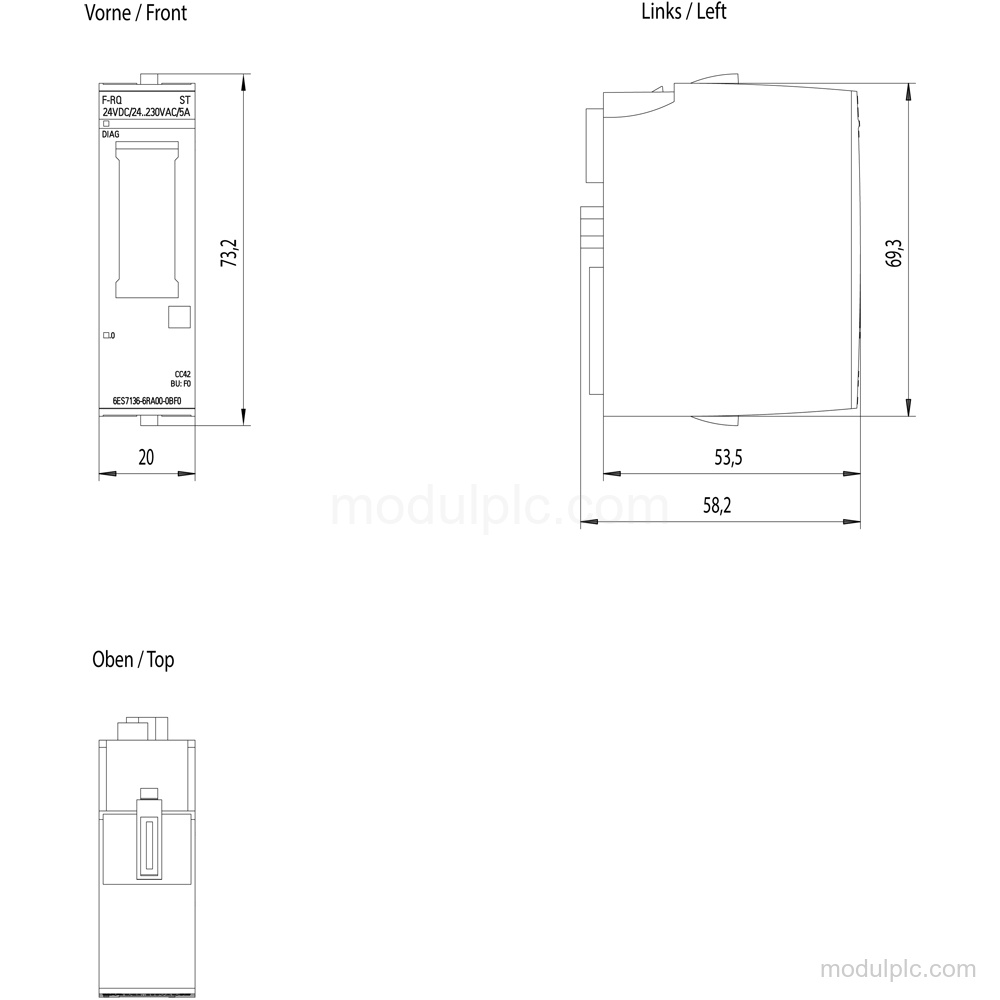

- Isolation and installation: Overall width is 20 mm. Potential separation is provided between channels, the backplane bus, and the electronics supply; usable BaseUnit: BU type F0.
Frequently Asked Questions
1. What output type does Siemens 6ES7136-6RA00-0BF0 use?
It has 1 relay output with 2 NO contacts.
2. What load voltage can the relay output switch?
The rated switching voltage is 24 V DC or 230 V AC.
3. What is the maximum resistive-load switching capacity?
The maximum switching capacity with resistive load is 5 A.
4. What supply voltage does the relay coil require?
The rated relay coil supply voltage is 24 V DC, with maximum relay coil current of 70 mA.
5. Which BaseUnit type is usable with this module?
The usable BaseUnit is BU type F0.
