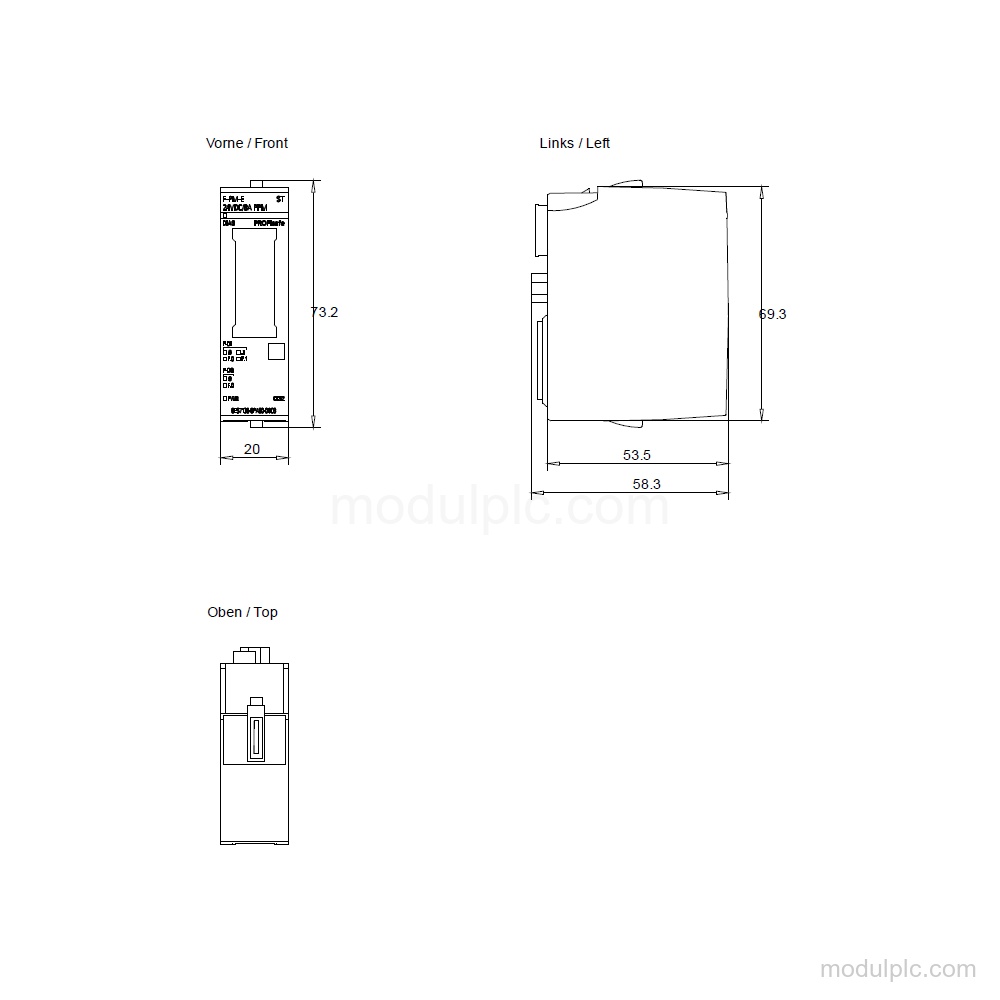

Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Product type | F-PM-E 24 V DC/8 A PPM ST |
| Digital inputs | 2 |
| Digital outputs | 1 |
| Supply voltage | 24 V DC; permissible range 20.4 V to 28.8 V |
| Output current | 8 A rated value; 8 A maximum per channel and per module |
| Input signal ranges | Signal 0: -30 to +5 V; signal 1: +15 to +30 V |
| Output protection | Short-circuit and overload protection; open-circuit detection |
| Engineering version | STEP 7 TIA Portal configurable/integrated from V12 |
| PROFINET GSD version | V2.31 |
| BaseUnit | BU type C0 |

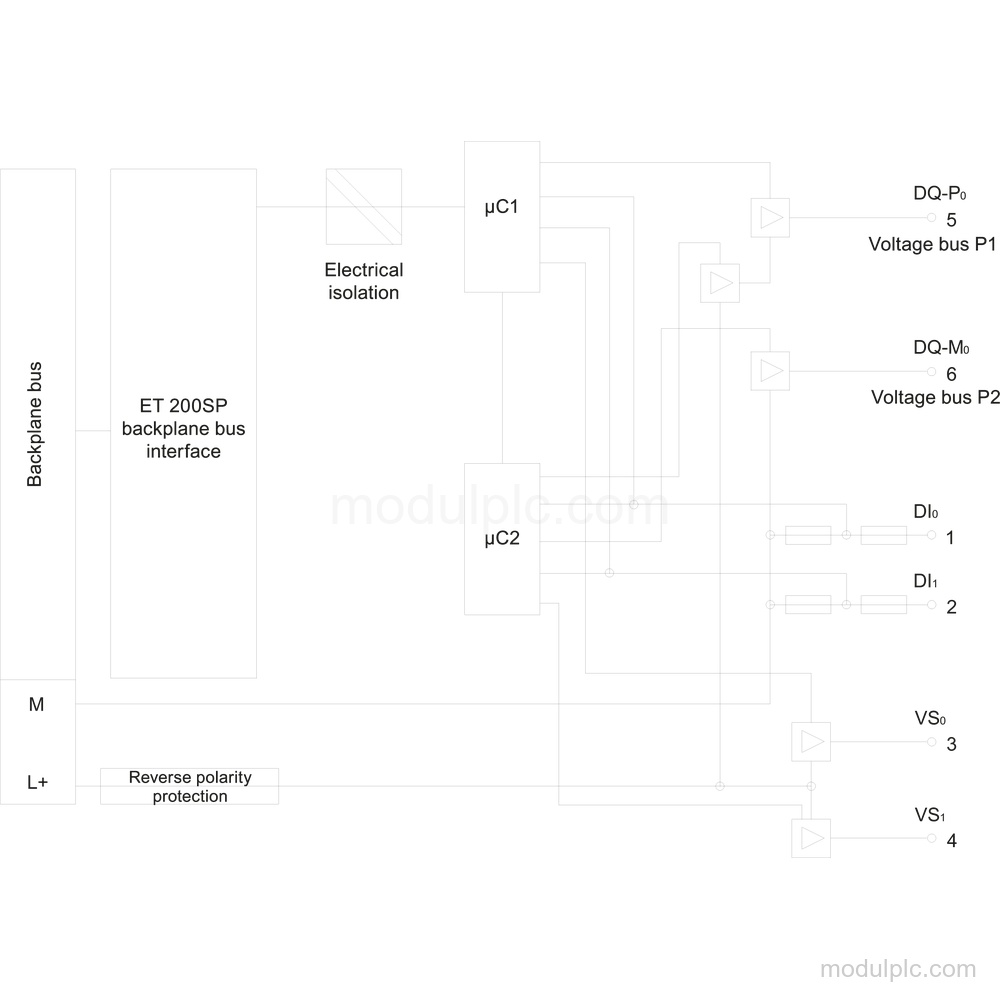

Applications
- Safe digital shutdown: Provides 24 V DC safe shutdown of DQ and F-DQ for safe digital inputs and PPM safe digital output control.
Key Features
- Safe shutdown module: Supports 24 V DC safe shutdown of DQ and F-DQ up to PL D/SIL2 or PL E/SIL3.
- Digital input channels: 2 DC digital inputs with a 24 V rated value; signal 0 is -30 to +5 V and signal 1 is +15 to +30 V.
- Digital output: 1 parameterizable digital output with 8 A rated output current and short-circuit, overload, and open-circuit detection.
- Supply and protection: Rated supply voltage is 24 V DC, with a permissible range of 20.4 V to 28.8 V and reverse polarity protection.
- Diagnostics and isolation: Provides diagnostic alarms, RUN, ERROR, PWR, channel-status, channel-diagnostic, and module-diagnostic LEDs. Channels are isolated from the backplane bus.
