Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Product type | F-DQ 4x24VDC/2A PM HF |
| Digital outputs | 4; transistor; parameterizable |
| Rated output voltage | 24 V DC |
| Rated output current | 2 A |
| Rated supply voltage | 24 V DC |
| Permissible supply voltage | 19.2 V to 28.8 V DC |
| Maximum current per module | 6 A; note derating data in the manual |
| Diagnostics | Diagnostics function and diagnostic alarm; substitute values not connectable |
| Usable BaseUnits | BU type A0 |
| Isolation test | 707 V DC (type test) |
Applications
- Digital output control: The module controls digital inputs through its digital outputs according to IEC 61131-2, type 2.
Key Features
- Fail-safe digital outputs: 4 parameterizable transistor outputs with 24 V DC rated output voltage and 2 A rated output current.
- Output protection: Short-circuit and overload protection are provided; open-circuit detection is supported.
- Diagnostics and status: Diagnostics, diagnostic alarms, channel status indication, RUN, ERROR, PWR, and DIAG LEDs are supported.
- Supply and power: Rated supply voltage is 24 V DC, with a permissible range of 19.2 V to 28.8 V DC; reverse polarity protection is provided.

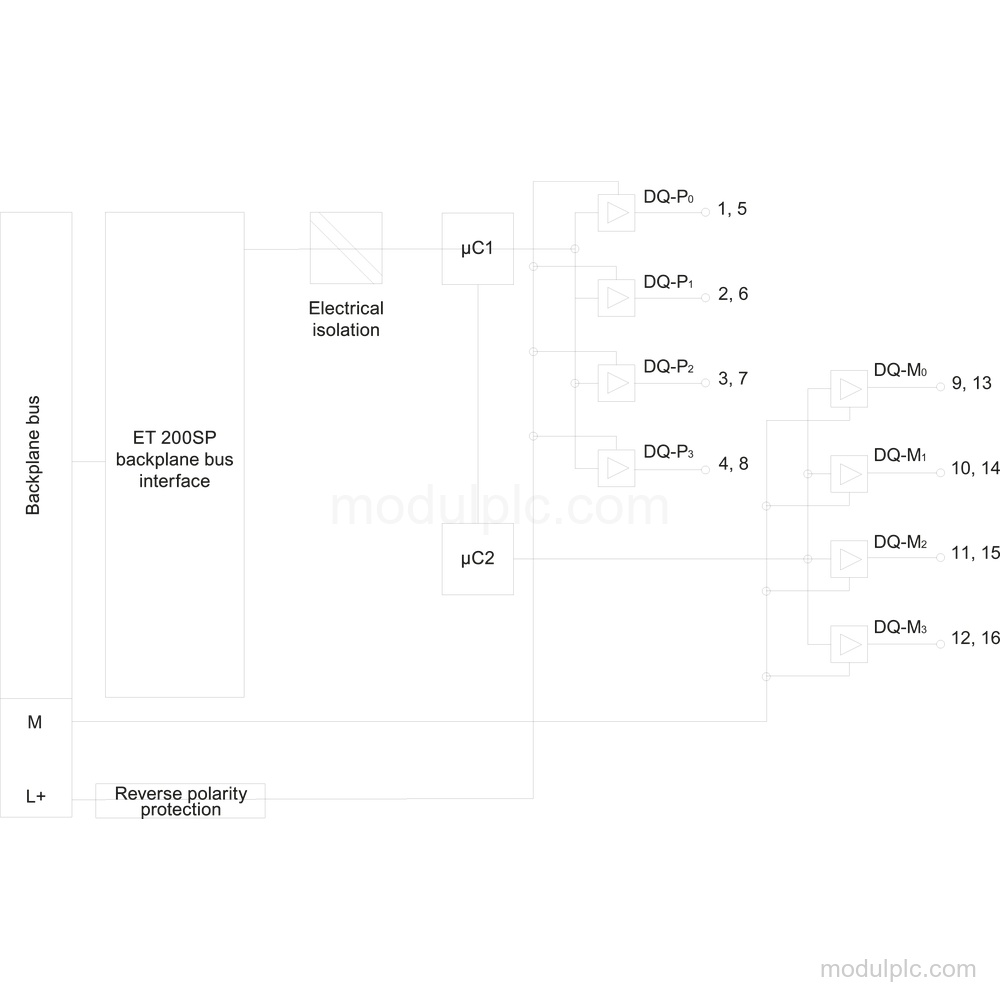

- Isolation: Channels are isolated from the backplane bus; isolation is tested with 707 V DC (type test).

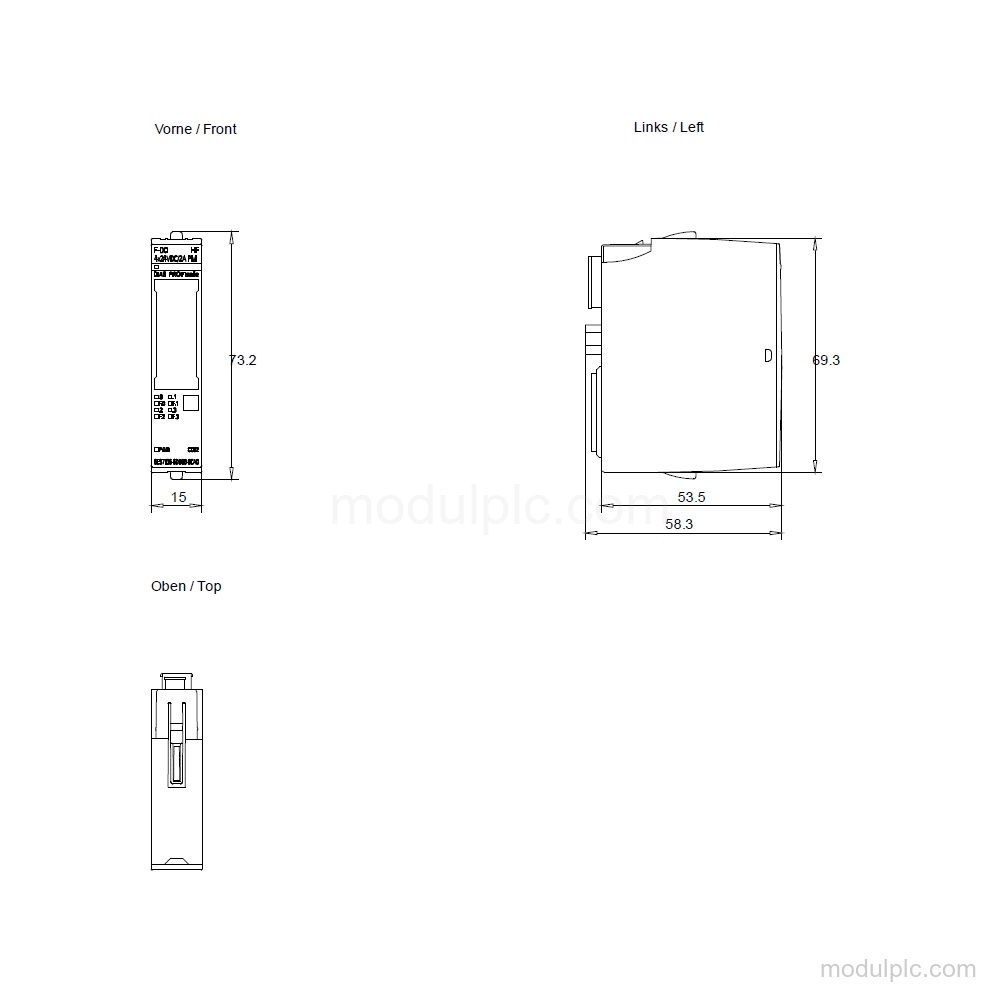

- Connection and configuration: The module has 15 mm width, uses BU type A0, and supports automatic encoding and electronic coding element type F.
Frequently Asked Questions
1. How many digital outputs does 6ES7136-6DB00-0CA0 have?
It has 4 parameterizable transistor outputs.
2. What output voltage and current does the module provide?
The rated output voltage is 24 V DC and the rated output current is 2 A.
3. What supply voltage does 6ES7136-6DB00-0CA0 require?
The rated supply voltage is 24 V DC, with a permissible range of 19.2 V to 28.8 V DC.
4. What diagnostics are available?
The module supports diagnostics and diagnostic alarms, with channel status, channel diagnostics, module diagnostics, RUN, ERROR, PWR, and DIAG LEDs.
