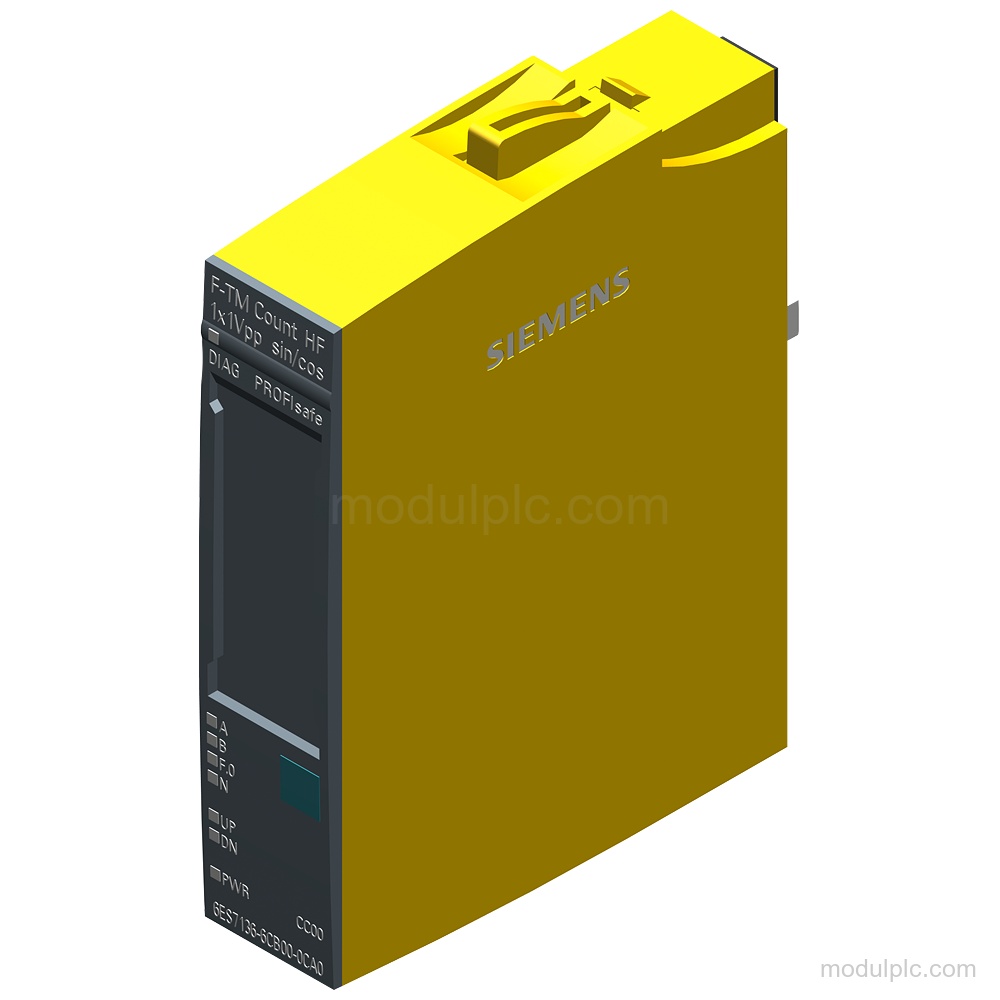

Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Product type | F-TM Count 1x1Vpp sin/cos HF |
| Channel count | 1 |
| Input signal | sin/cos 1 Vpp, centered at 2.5 V offset |
| Input frequency, max. | 200 kHz |
| Counting frequency, max. | 800 kHz; with quadruple evaluation |
| Supply voltage | 24 V DC |
| Encoder supply | 5.1 V ±3.5 %; output current, max. 300 mA |
| Frequency measurement range | 0.04 Hz to 800 kHz; with quadruple evaluation |
| Cycle duration measurement range | 1 μs to 25 s |
| Suitable BaseUnit | BU type A0 |
| Isolation tested with | 707 V DC (type test) |
Applications
- Incremental encoder counting: Counts signals from incremental rotary encoders using sin/cos 1 Vpp inputs and quadruple evaluation.
- Frequency and cycle duration measurement: Measures frequency from 0.04 Hz to 800 kHz and cycle duration from 1 μs to 25 s.
- Velocity measurement: Measures velocity from 0 to 2 147 483 in configured units per selected time basis.
- Encoder diagnostics: Monitors wire break, short-circuit, supply voltage, and A/B transition errors at the incremental encoder.
Key Features
- Encoder counting channel: 1 channel for incremental rotary encoders with symmetrical sin/cos 1 Vpp input signals.
- Signal and counting frequency: Input frequency: max. 200 kHz. Counting frequency: max. 800 kHz with quadruple evaluation.
- Encoder supply: 5.1 V ±3.5 % encoder supply with output current: max. 300 mA and electronic overload protection.
- Supply voltage: Rated supply voltage: 24 V DC. Load voltage L+: 20.4 V to 28.8 V DC with reverse polarity protection.
- Diagnostics and safety functions: Diagnostics include wire break, short-circuit, supply-voltage monitoring, and A/B transition error. Safe Operating Stop (SOS), Safely-Limited Speed (SLS), Safe Direction (SDI), and Safe Speed Monitor (SSM) are supported.

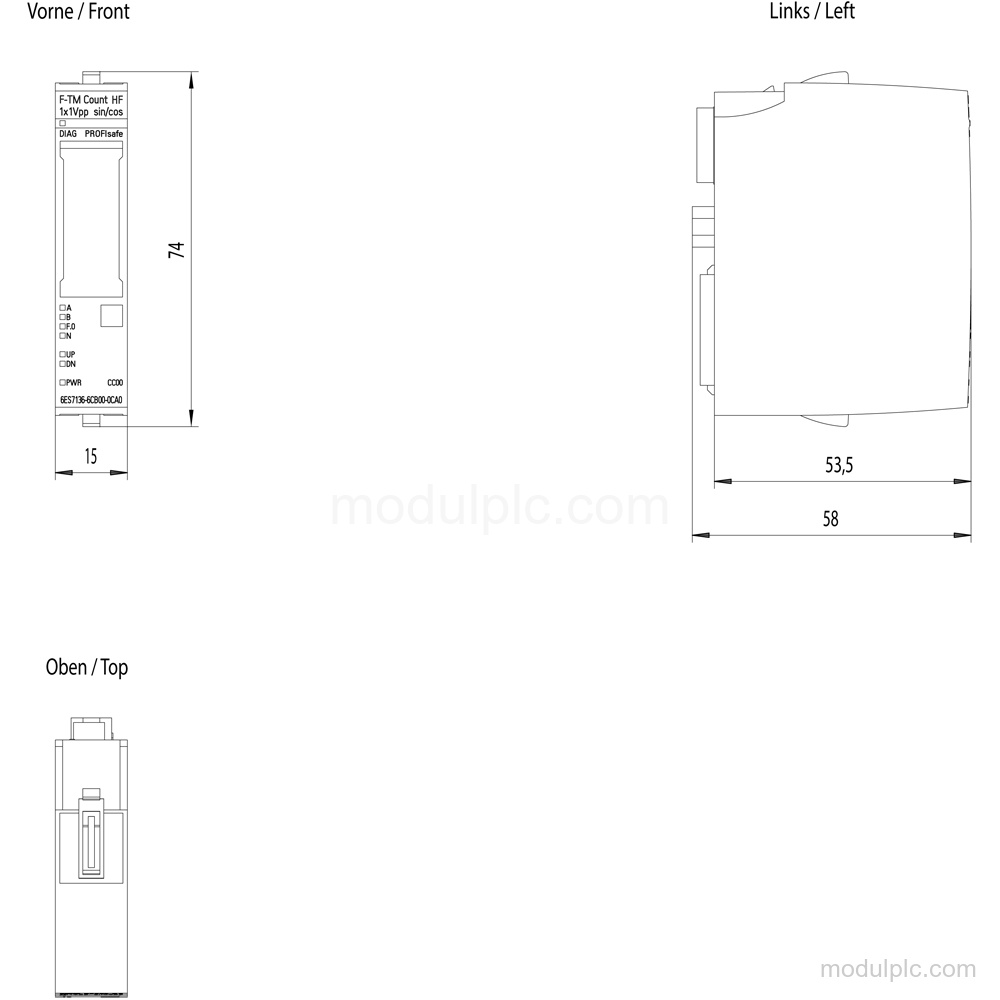

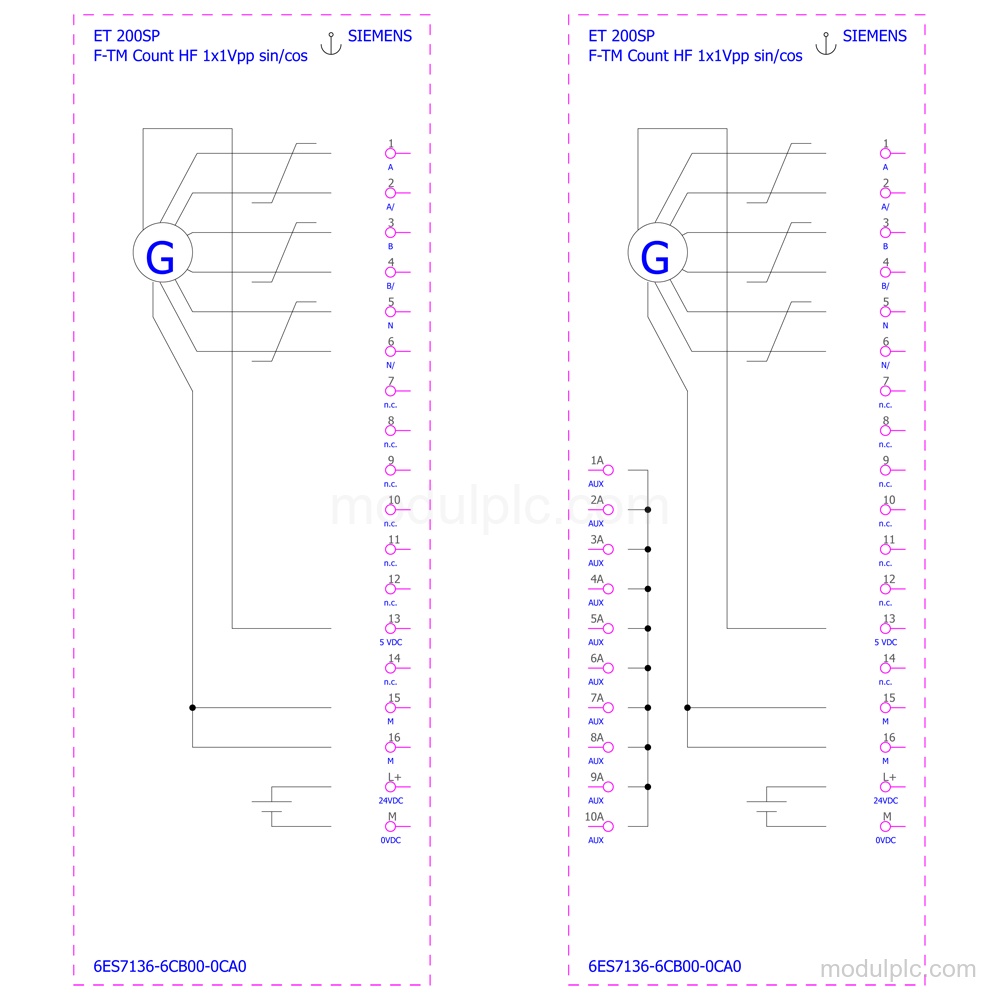

- Mounting and connections: Suitable BaseUnit: BU type A0. Shielded cable length: max. 150 m. Packaging dimensions: 7.70 x 6.80 x 2.70 cm.
Frequently Asked Questions
1. How many encoder channels does Siemens 6ES7136-6CB00-0CA0 have?
It has 1 channel for incremental rotary encoders.
2. Which encoder signal does 6ES7136-6CB00-0CA0 support?
It supports symmetrical sin/cos 1 Vpp input signals, centered at 2.5 V offset.
3. What are the maximum input and counting frequencies?
Input frequency is max. 200 kHz. Counting frequency is max. 800 kHz with quadruple evaluation.
4. What supply and BaseUnit are specified for this module?
Rated supply voltage is 24 V DC, and the module is suitable for BU type A0.
5. Which diagnostics are available?
Diagnostics include supply-voltage monitoring, wire break, short-circuit, A/B transition error, diagnostic alarms, and diagnostic LEDs.
