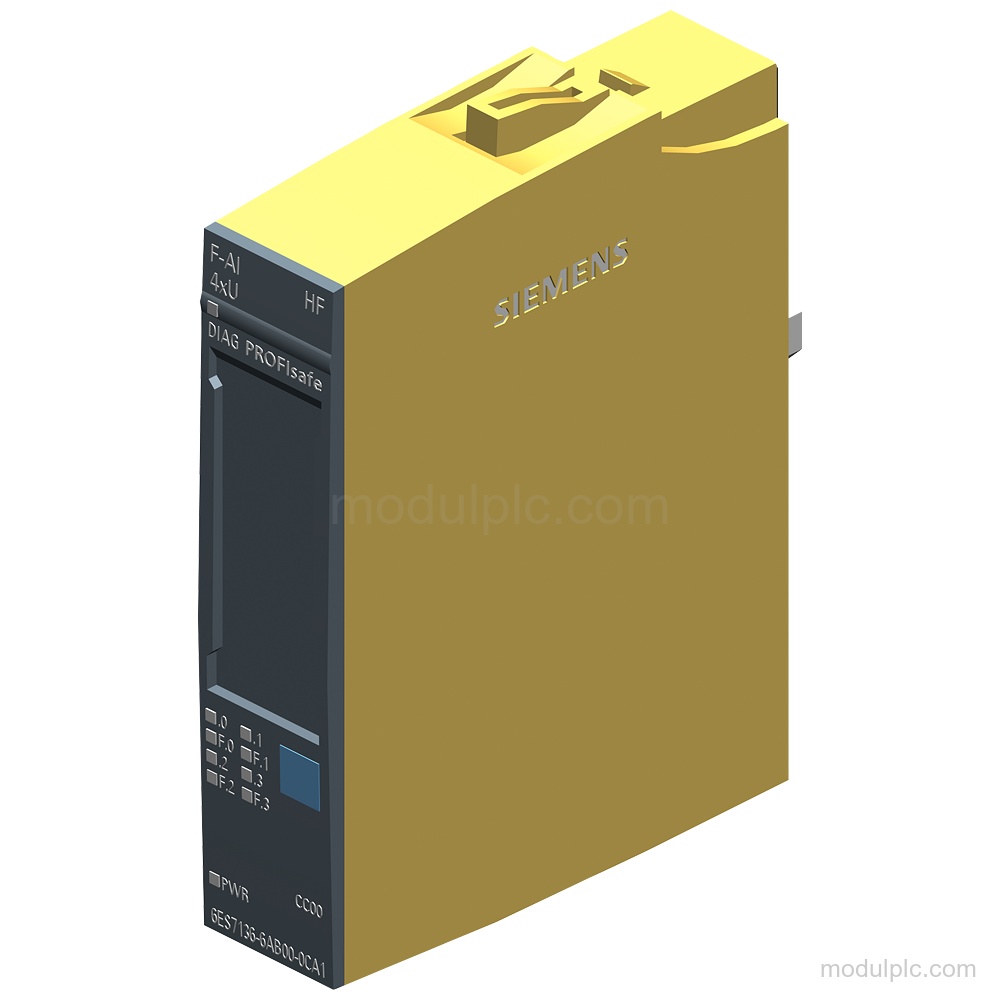

Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Module type | F-AI 4XU 0..10V HF electronics module |
| Analog input channels | 4 |
| Input signal range | 0 to +10 V |
| Input resistance | 16 kΩ |
| Resolution with overrange | 16 bit including sign |
| Measurement principle | Sigma Delta |
| Rated supply voltage | 24 V DC |
| Permissible supply voltage | 19.2 V to 28.8 V DC |
| Diagnostics | Supply-voltage monitoring and wire-break detection |
| Safety level | PLe / Cat. 4 according to ISO 13849-1; SIL 3 according to IEC 61508 |
Applications
- Fail-safe voltage measurement: The module performs fail-safe analog voltage measurement through 4 voltage inputs in the 0 to +10 V range.
Key Features

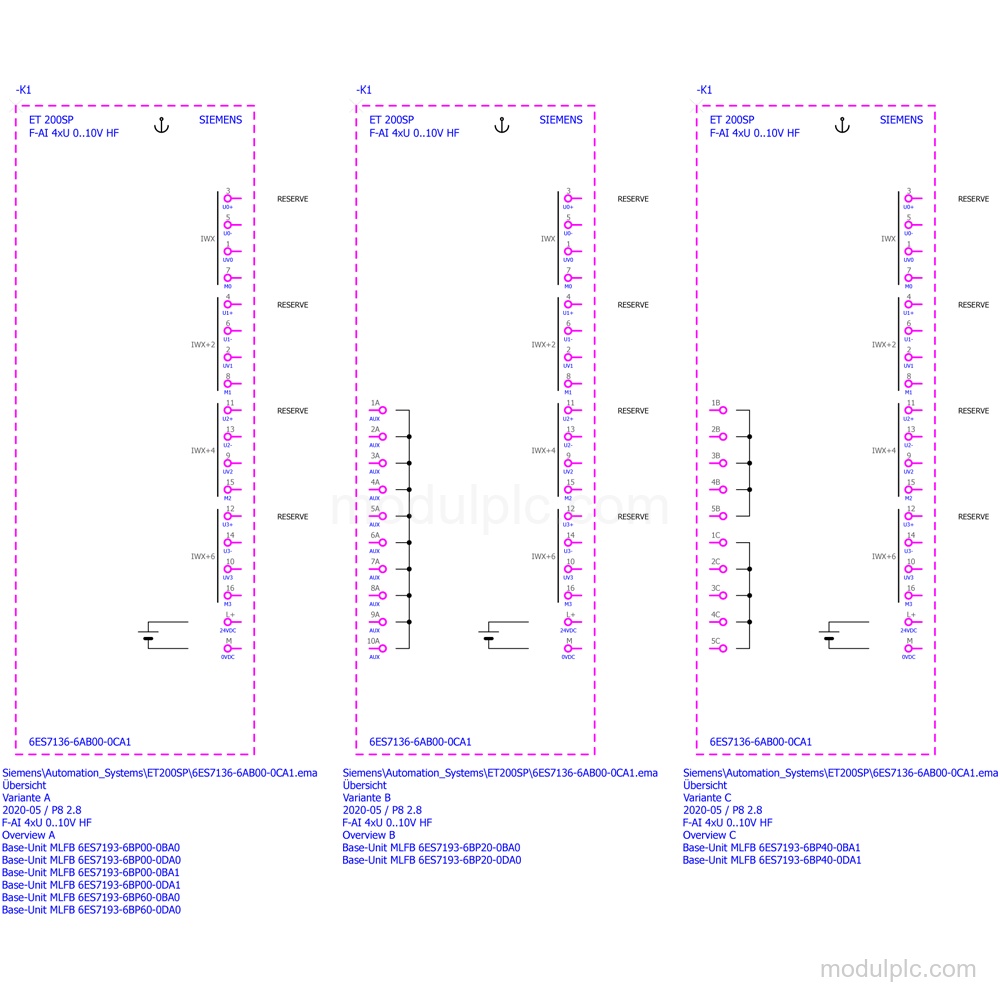

- Fail-safe analog inputs: The F-AI 4XU 0..10V HF module has 4 analog inputs for voltage measurement.
- Input signal range: The rated input range is 0 to +10 V, with 16 kΩ input resistance.
- Resolution and measurement: Resolution with overrange is 16 bit including sign; the measurement principle is Sigma Delta.
- Supply and current: Rated supply voltage is 24 V DC, with a permissible range of 19.2 V to 28.8 V DC. Current consumption is 0.38 A rated and 0.4 A maximum.
- Diagnostics and isolation: The module supports diagnostics, supply-voltage monitoring, wire-break detection, and diagnostic LEDs. Channels are isolated from the backplane bus and electronics power supply, but not from each other.

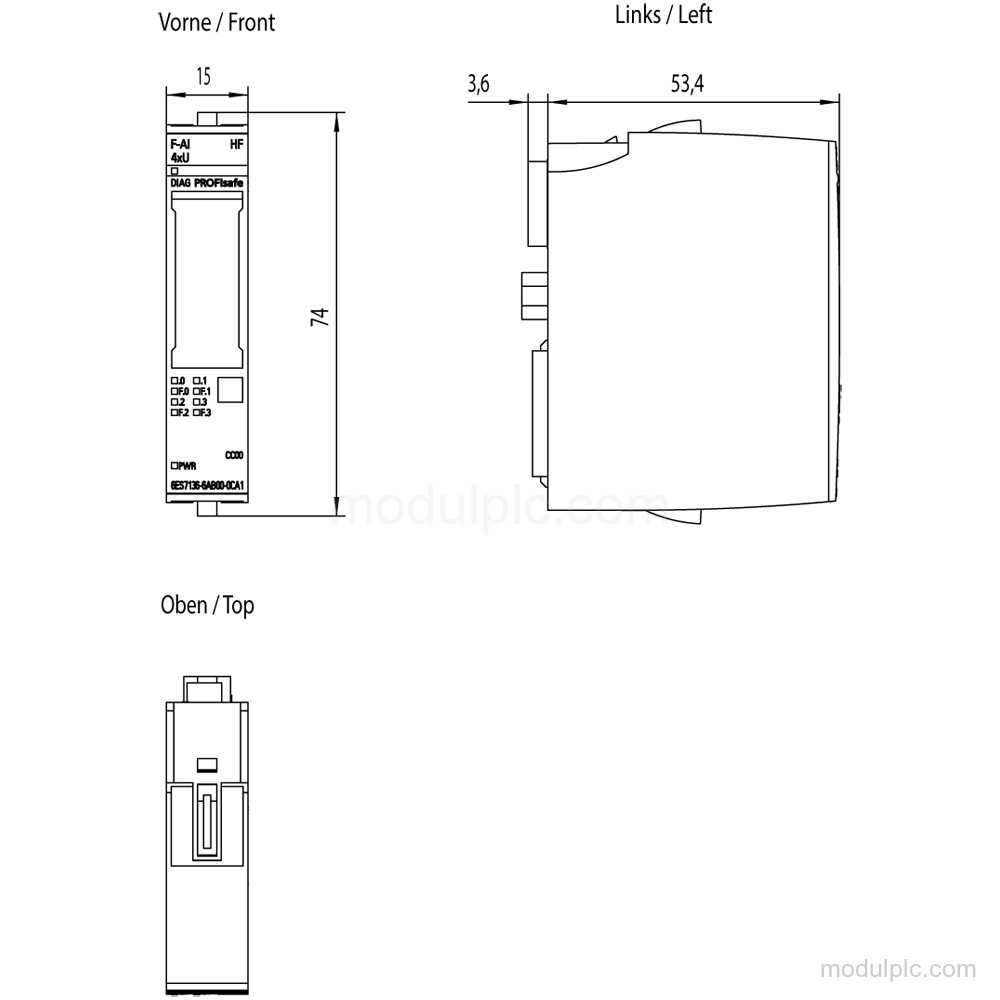

- Installation limits and dimensions: Ambient operation is 0 °C to 60 °C with horizontal installation and 0 °C to 50 °C with vertical installation. Dimensions are 15 mm wide, 73 mm high, and 58 mm deep.
Frequently Asked Questions
1. How many analog inputs does 6ES7136-6AB00-0CA1 have?
It has 4 analog inputs for voltage measurement.
2. Which voltage range does this module support?
It supports a rated input range of 0 to +10 V.
3. What resolution does the module provide?
It provides 16 bit resolution with overrange, including sign.
4. What diagnostics are available?
The module supports supply-voltage monitoring, wire-break detection, diagnostic alarms, and diagnostic LEDs.
