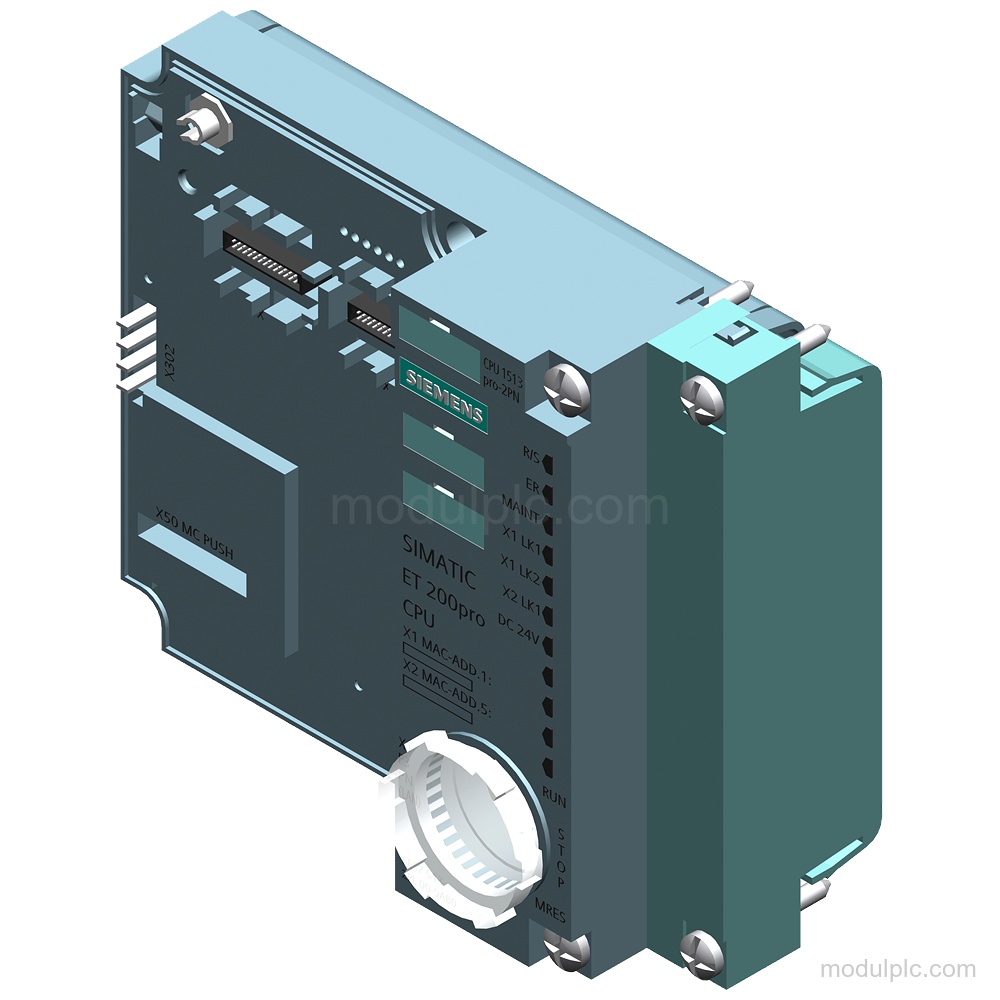

Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Product type | CPU 1513pro-2 PN |
| Program work memory | 300 KB |
| Data work memory | 1.5 MB |
| PROFINET interfaces | 2 |
| Interface ports | 2x M12 + 1x RJ45 |
| Bit operation time, typ. | 40 ns |
| Permissible DC supply voltage | 20.4 V to 28.8 V |
| Protection degree | IP65/67 |
| Required components | SIMATIC Memory Card and connection module |
Applications
- Motion control: Supports Motion Control technology objects, including speed-controlled, positioning, synchronous, and external Encoder resources.
- PID control: Supports PID_Compact, PID_3Step, and PID-Temp controllers with integrated optimization.
- Industrial communication: Supports PROFINET IO Controller and IO Device functions, SIMATIC communication, Open IE communication, OPC UA, and MODBUS TCP.
Key Features
- CPU and memory: CPU 1513pro-2 PN with 300 KB integrated work memory for the program and 1.5 MB for data. Plug-in SIMATIC Memory Card load memory is supported up to 32 Gbyte.

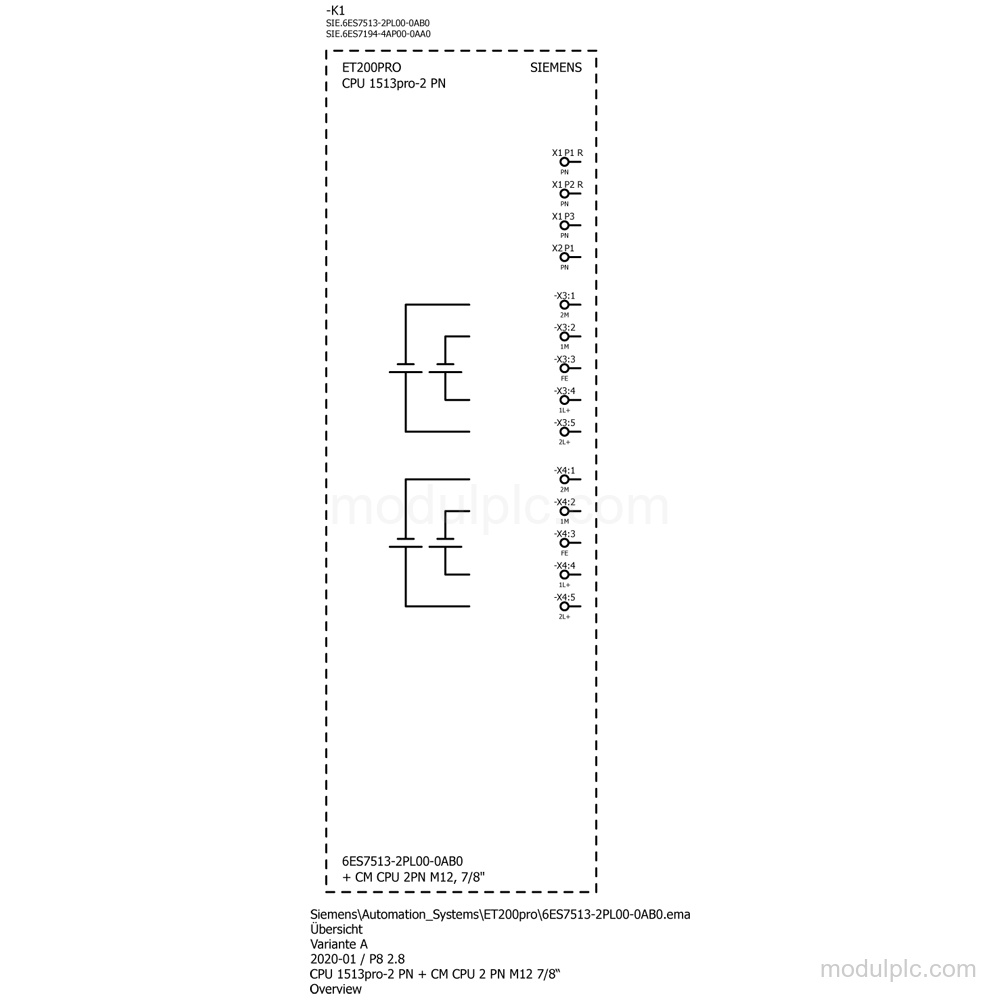

- PROFINET interfaces: The first interface provides PROFINET IRT with a 3-port switch; the second provides PROFINET RT. The interfaces use 2x M12 + 1x RJ45 ports.
- Processing performance: Bit operations have a typical processing time of 40 ns; word operations are 48 ns, fixed-point arithmetic is 64 ns, and floating-point arithmetic is 256 ns.
- Supply and current: Permissible DC supply voltage is 20.4 V to 28.8 V. Rated current consumption is 0.31 A and maximum current consumption is 0.4 A.
- Diagnostics and control: The CPU has a diagnostic buffer with up to 1 000 entries, 4 configurable traces, RUN/STOP, ERROR, MAINT, PWR, and LINK TX/RX indication, plus Motion Control and PID controllers.

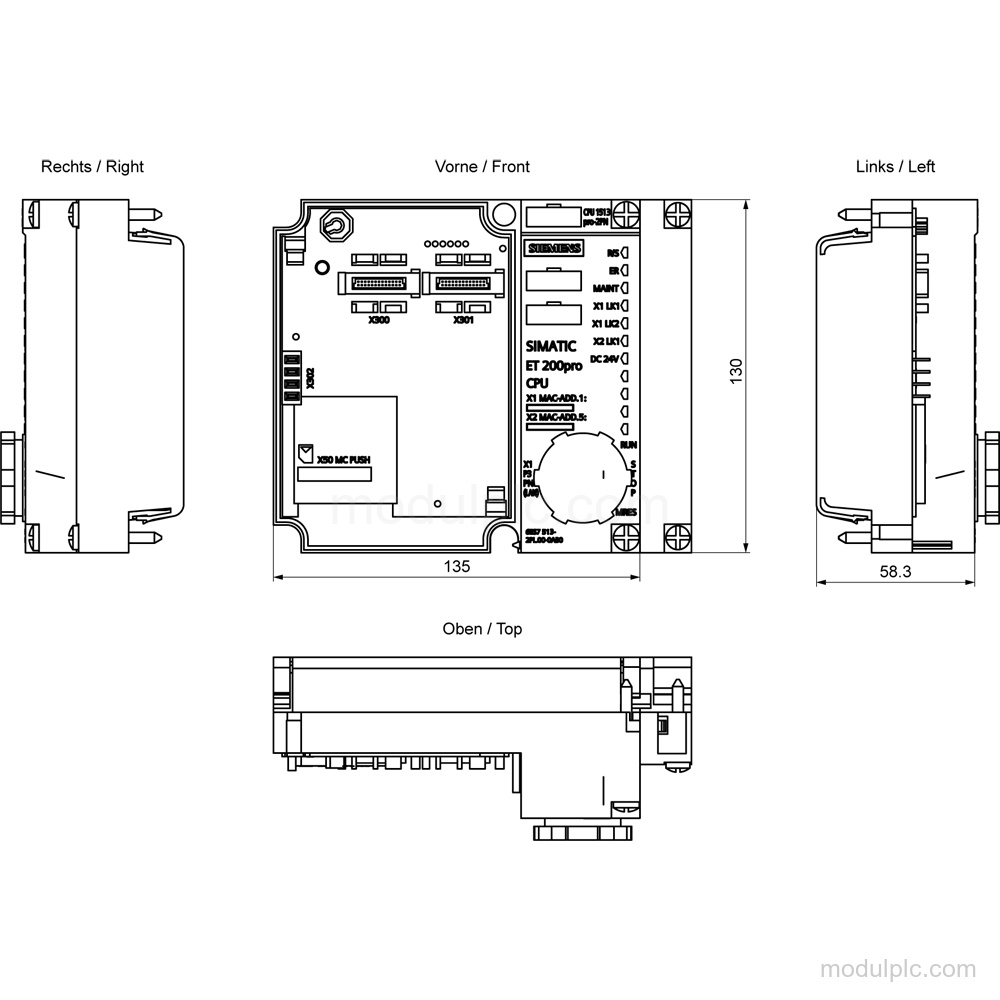

- Protection and installation: Protection degree is IP65/67. Dimensions are 135 mm wide, 130 mm high, and 65 mm deep; weight is approximately 614 g. A SIMATIC Memory Card and connection module are required.
Frequently Asked Questions
1. What function does the Siemens 6ES7513-2PL00-0AB0 provide?
It is a SIMATIC DP CPU 1513pro-2 PN central processing unit for ET 200pro.
2. What memory is available on this CPU?
It has 300 KB of integrated work memory for the program and 1.5 MB for data. Plug-in SIMATIC Memory Card load memory is supported up to 32 Gbyte.
3. Which PROFINET interfaces and ports are provided?
The first interface provides PROFINET IRT with a 3-port switch, and the second provides PROFINET RT. The interface arrangement includes 2x M12 + 1x RJ45 ports.
4. What supply voltage does the CPU require?
The permissible DC supply voltage range is 20.4 V to 28.8 V.
5. What must be verified before ordering?
Verify that a SIMATIC Memory Card and connection module are included in your planned configuration; both are required.
