Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Module type | SIMATIC DP connection module |
| System context | ET 200 PRO |
| Function description | CM IO 8 x M12 D |
| Digital input channels | 16 DI at 24 V DC |
| Digital I/O channels | 4 DIO/4DO at 24 V DC/0.5 A |
| Connections | 8xM12 |
Key Features
- Connection module: Function description: CM IO 8 x M12 D.
- Digital input channels: Supports 16 DI at 24 V DC.
- Digital I/O channels: Supports 4 DIO/4DO at 24 V DC/0.5 A.
- M12 connections: The module has 8xM12 connections.

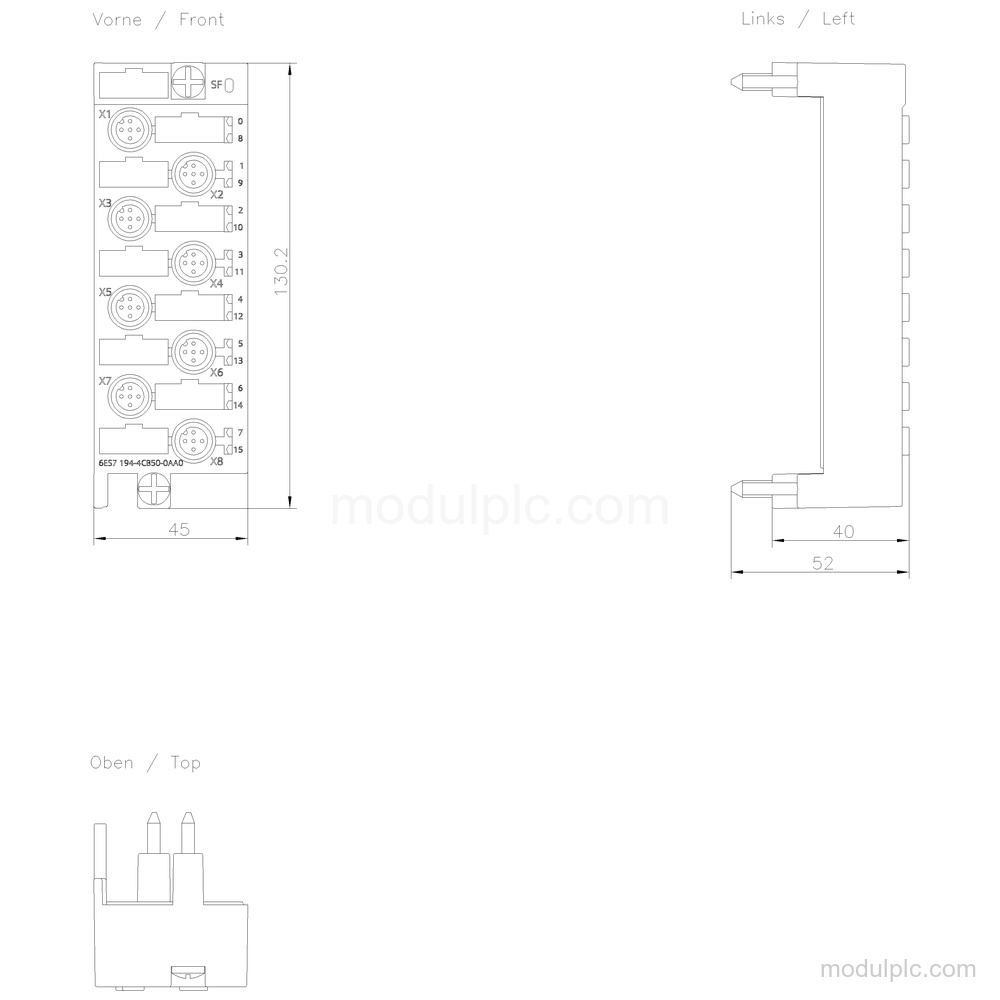

- Dimensions and weight: Dimensions: 45 mm width, 130 mm height, and 39 mm depth. Weight, approx.: 305 g.
Frequently Asked Questions
1. What is the function of Siemens 6ES7194-4CB50-0AA0?
It is a SIMATIC DP connection module for ET 200 PRO digital electronic modules; its function description is CM IO 8 x M12 D.
2. How many digital channels does 6ES7194-4CB50-0AA0 support?
It supports 16 DI at 24 V DC and 4 DIO/4DO at 24 V DC/0.5 A.
3. What connections does this connection module have?
It has 8xM12 connections.
4. What are the dimensions and approximate weight?
The dimensions are 45 mm width, 130 mm height, and 39 mm depth. Weight, approx.: 305 g.
