Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Module type | SIMATIC DP connection module for IO-Link master ET 200pro |
| Connections | 4xM12 |
| Function description | CM IO-Link 4x M12 P |
| Product association | 4 IO-Link High Feature |
| Version | Plastic |
Applications
- IO-Link master connection: Provides the connection module function for the IO-Link master ET 200pro.
Key Features
- Connection module: Connection module for the IO-Link master ET 200pro in a plastic version.
- 4xM12 connections: Function description: CM IO-Link 4x M12 P.
- Product association: Belongs to 4 IO-Link High Feature.

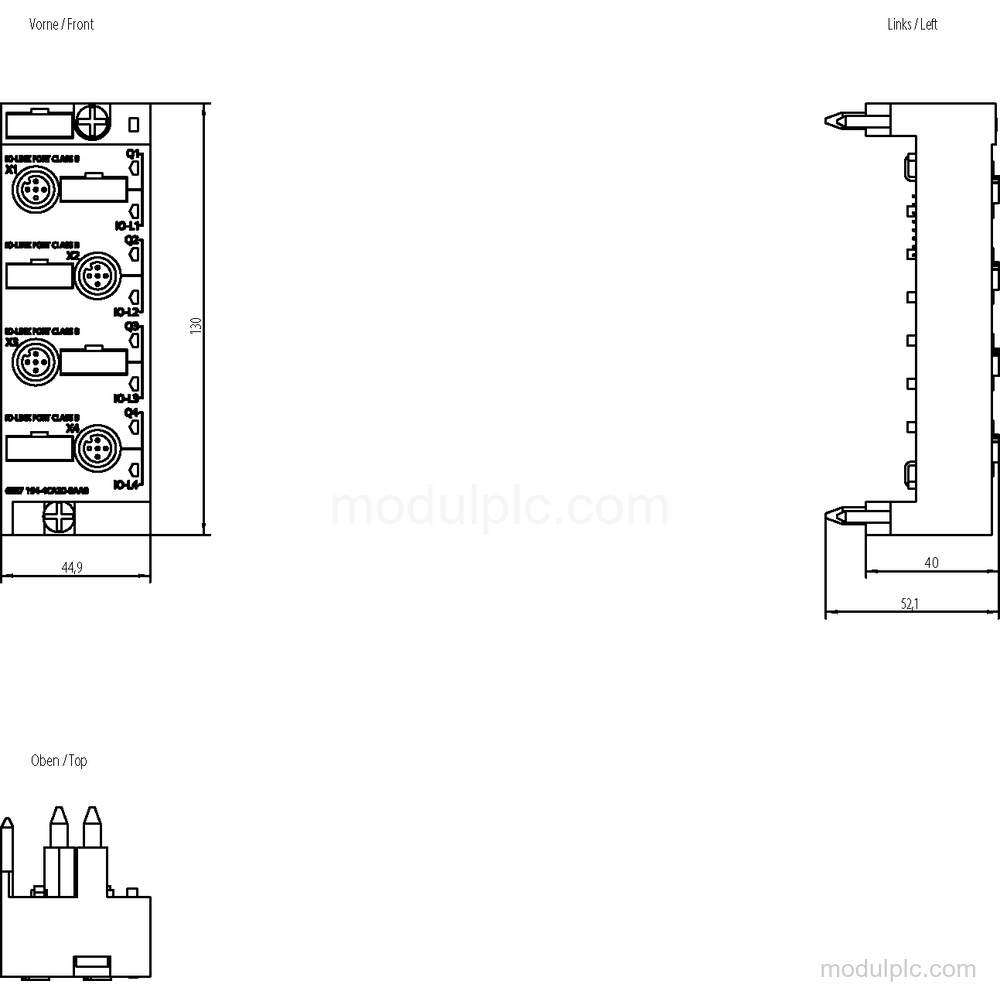

- Product dimensions: Width: 45 mm; height: 130 mm; depth: 39 mm.
Frequently Asked Questions
1. What is Siemens 6ES7194-4CA20-0AA0?
It is a SIMATIC DP connection module for the IO-Link master ET 200pro, in a plastic version with 4xM12 connections.
2. What function description is given for this module?
The function description is CM IO-Link 4x M12 P.
3. Which product does the module belong to?
It belongs to 4 IO-Link High Feature.
4. What are the module dimensions?
Width is 45 mm, height is 130 mm, and depth is 39 mm.
