Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Module type | SIMATIC DP connection module for Power module PM-E ET 200 PRO |
| Load-voltage function | Feeding of load voltage 2L+ within a station |
| Input current from load voltage 2L+ (without load), max. | 8 A |

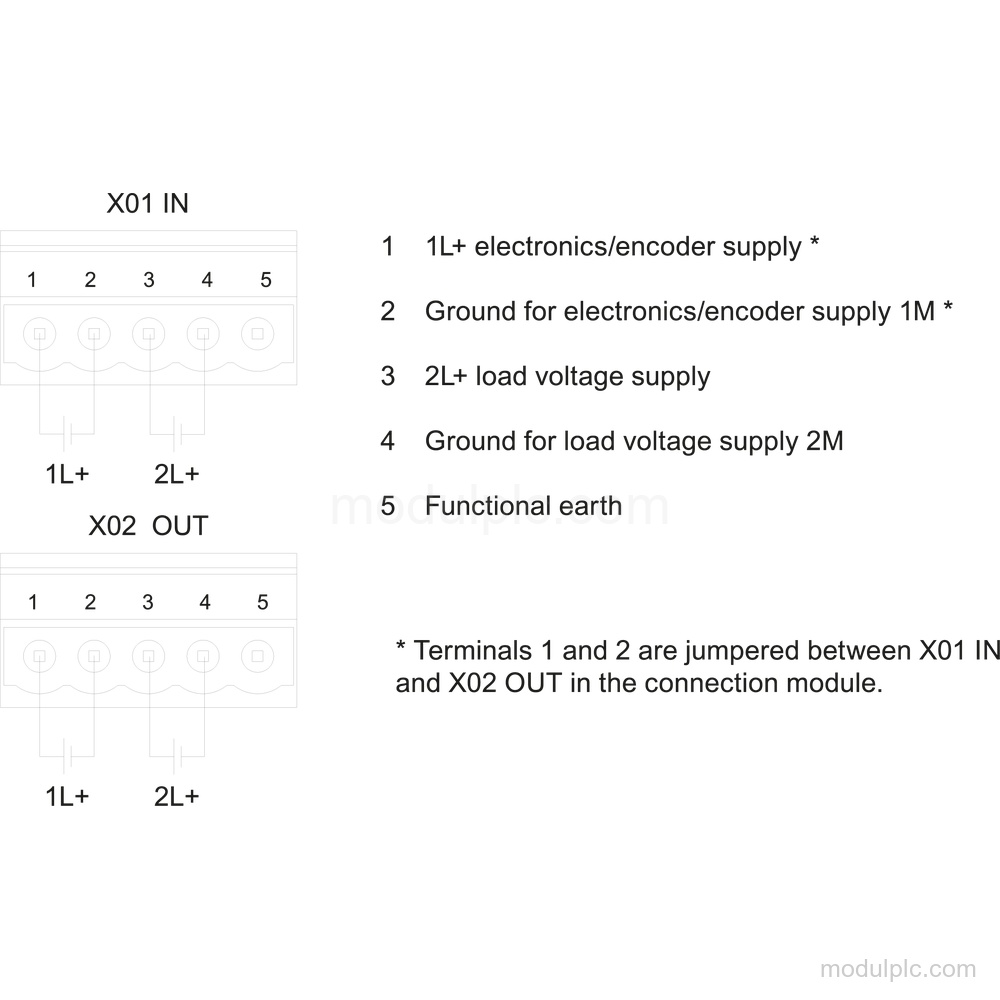

| Connection | 1x PushPull |
Applications
- Load-voltage feeding: Feeds load voltage 2L+ within a station.
Key Features
- Connection module: SIMATIC DP connection module for the PM-E ET 200 PRO Power module.
- Load-voltage feeding: Feeds load voltage 2L+ within a station.
- Input current: Maximum input current from load voltage 2L+ without load: 8 A.
- Connection: 1x PushPull.

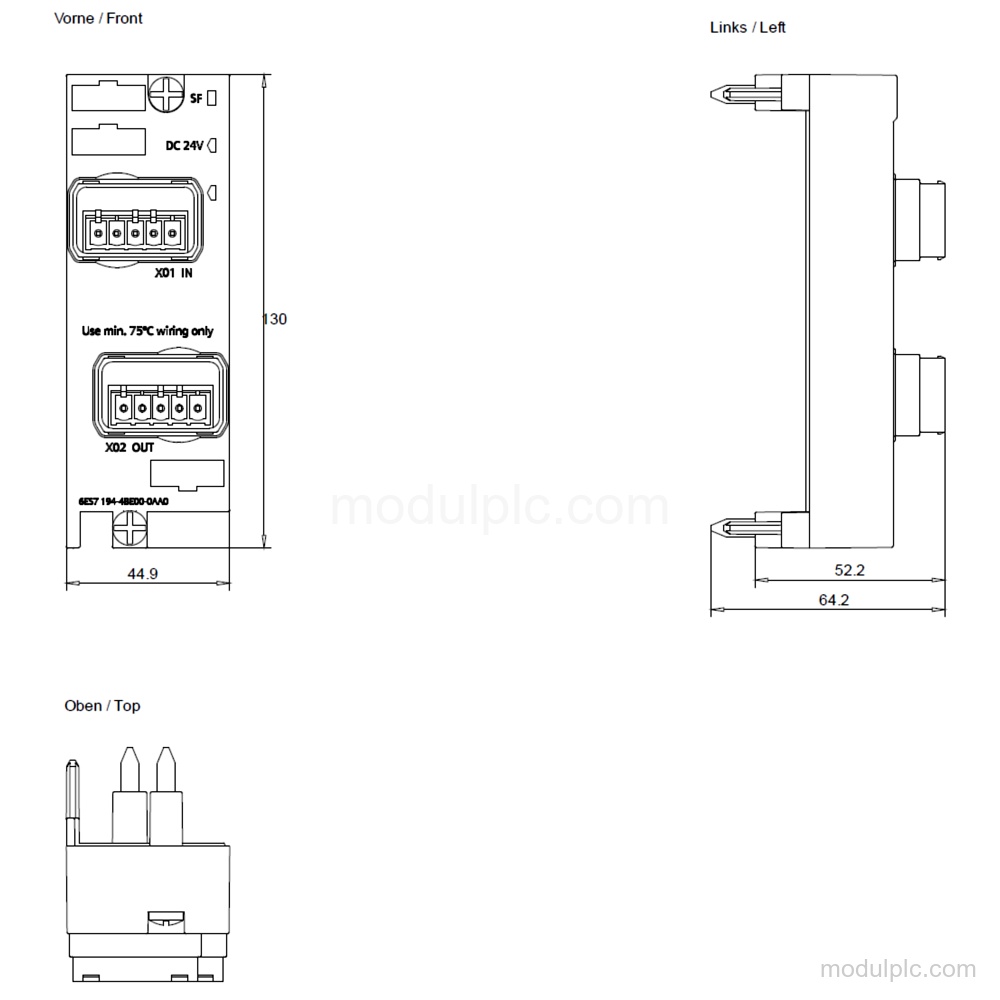

- Dimensions: Width: 45 mm; height: 130 mm; depth: 60 mm.
- Weight: Weight, approx.: 110 g.
Frequently Asked Questions
1. What is the function of 6ES7194-4BE00-0AA0?
It is a SIMATIC DP connection module for the PM-E ET 200 PRO Power module and feeds load voltage 2L+ within a station.
2. What connection does the module provide?
It provides 1x PushPull.
3. What is the maximum input current?
The maximum input current from load voltage 2L+ without load is 8 A.
4. What are its dimensions and weight?
The dimensions are 45 mm wide, 130 mm high and 60 mm deep; weight is approx. 110 g.
