Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Module type | SIMATIC DP connection module for Power module PM-E ET 200 PRO 7/8" |
| Load-voltage function | Feeding of load voltage 2L+ within a station |

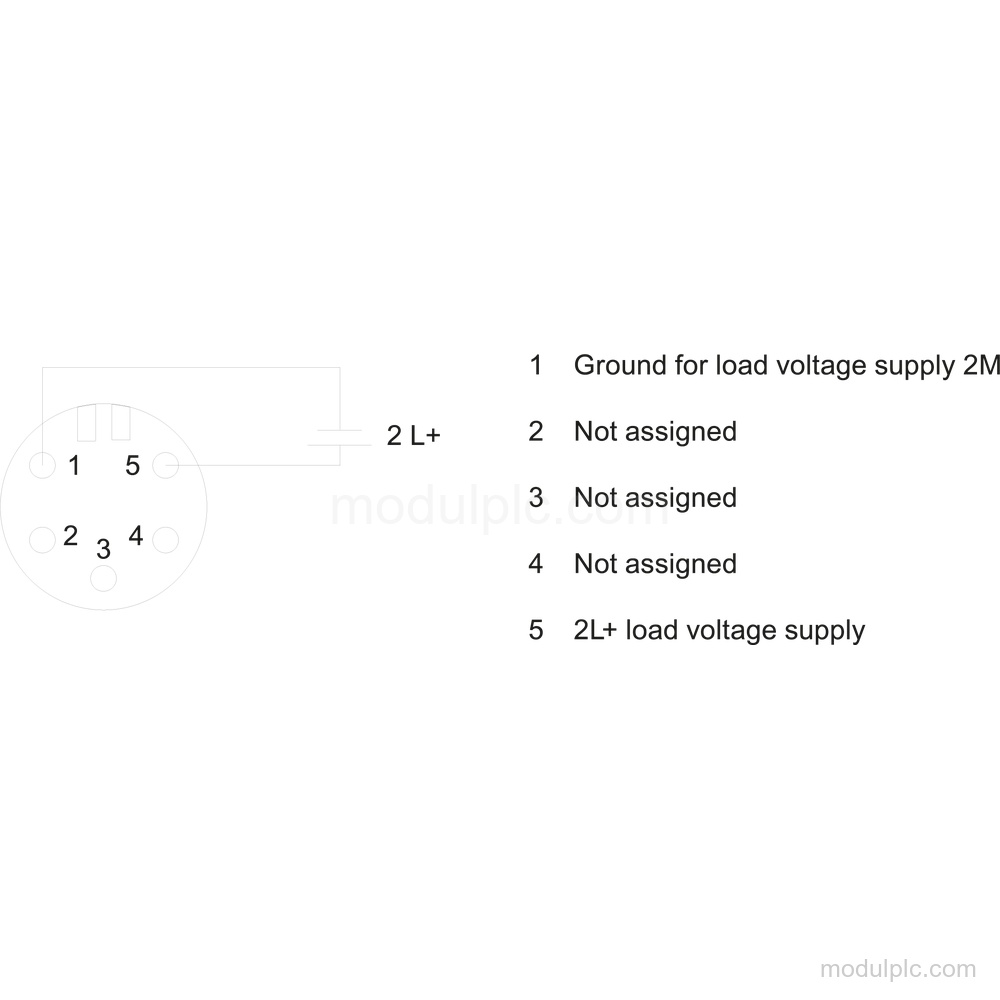

| Connection | 1x 7/8" |
| Maximum input current | 8 A from load voltage 2L+ without load |
Applications
- Load-voltage feeding: Feeds load voltage 2L+ within a station.
Key Features
- Connection module: SIMATIC DP connection module for Power module PM-E ET 200 PRO 7/8".
- Load-voltage feeding: Feeds load voltage 2L+ within a station.
- Connection: 1x 7/8" connection.
- Input current: Maximum 8 A from load voltage 2L+ without load.

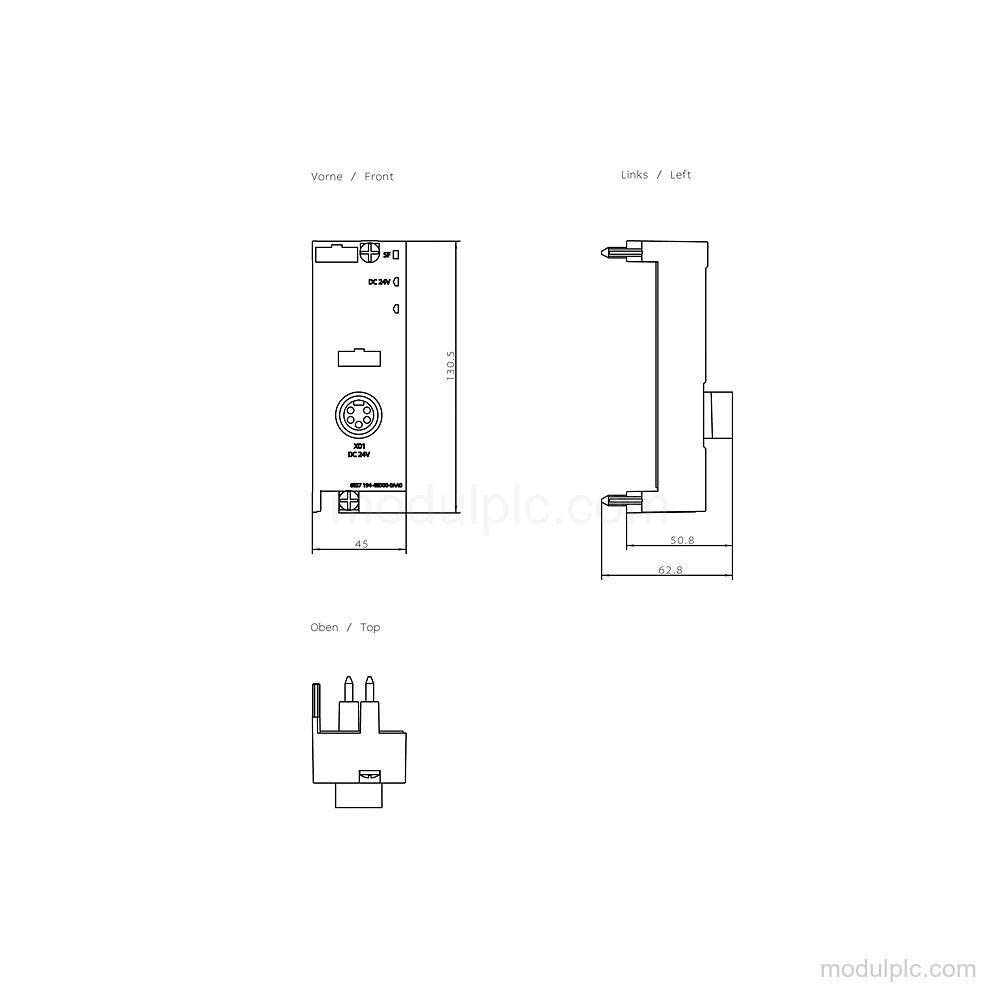

- Dimensions: Width: 45 mm; height: 130 mm; depth: 48 mm.
- Weight: Approx. 120 g.
Frequently Asked Questions
1. What is the function of the Siemens 6ES7194-4BD00-0AA0?
It is a SIMATIC DP connection module for the PM-E ET 200 PRO 7/8" and feeds load voltage 2L+ within a station.
2. What connection does this module have?
It has 1x 7/8" connection.
3. What is the maximum input current?
The maximum input current is 8 A from load voltage 2L+ without load.
4. What are the dimensions and weight?
The dimensions are 45 mm wide, 130 mm high, and 48 mm deep. Weight is approx. 120 g.
