Product Overview
Technical Summary
| Parameter | Value |
|---|---|

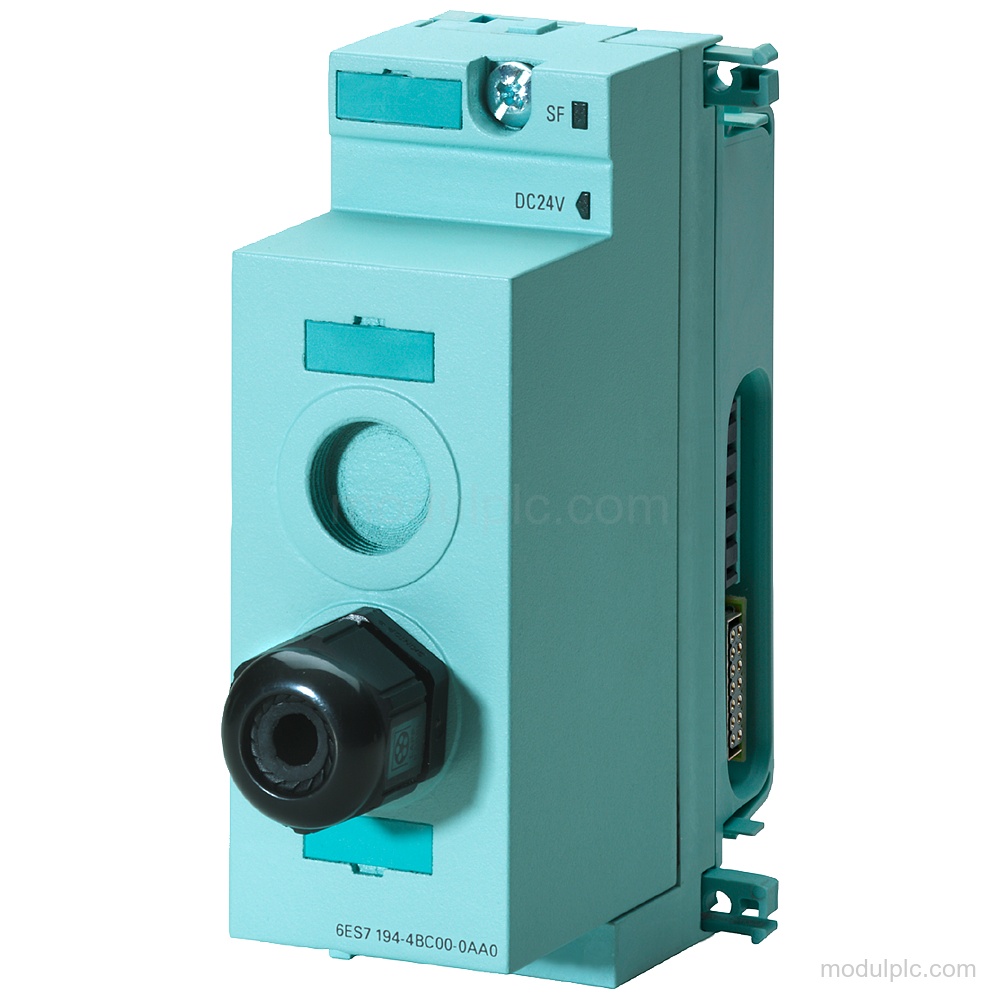

| Module type | SIMATIC DP connection module for PM-E ET 200 PRO power module |
| Connection | Direct connection |

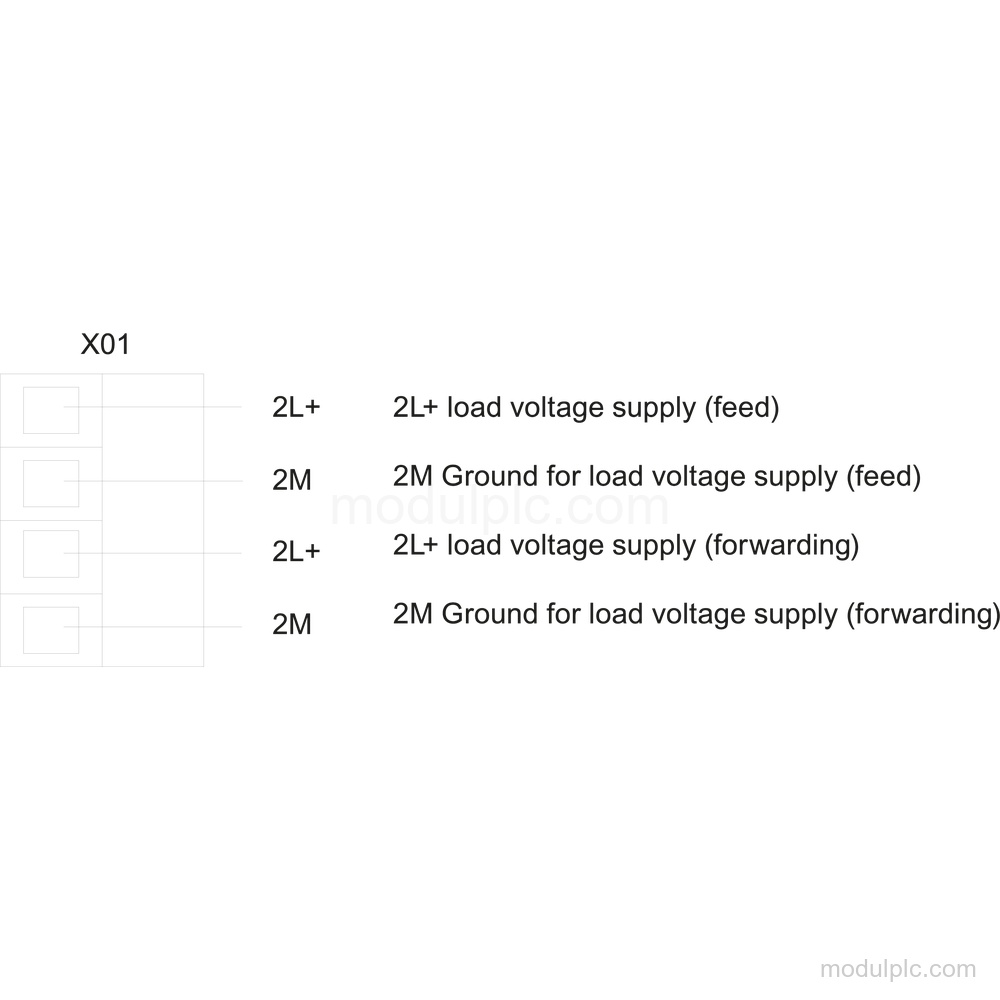

| Load-voltage function | Feeding of load voltage 2L+ within a station |
| Maximum input current | 16 A from load voltage 2L+ (without load) |
| Cable-gland provision | Up to 2x M20 cable gland |
Applications
- Station load-voltage feeding: Feeding load voltage 2L+ within a station.
Key Features
- Connection module: SIMATIC DP connection module for the PM-E ET 200 PRO power module with direct connection.
- Load-voltage feeding: Feeds load voltage 2L+ within a station.
- Input current: Maximum input current from load voltage 2L+ without load: 16 A.
- Cable glands: Supports up to 2 M20 cable glands.

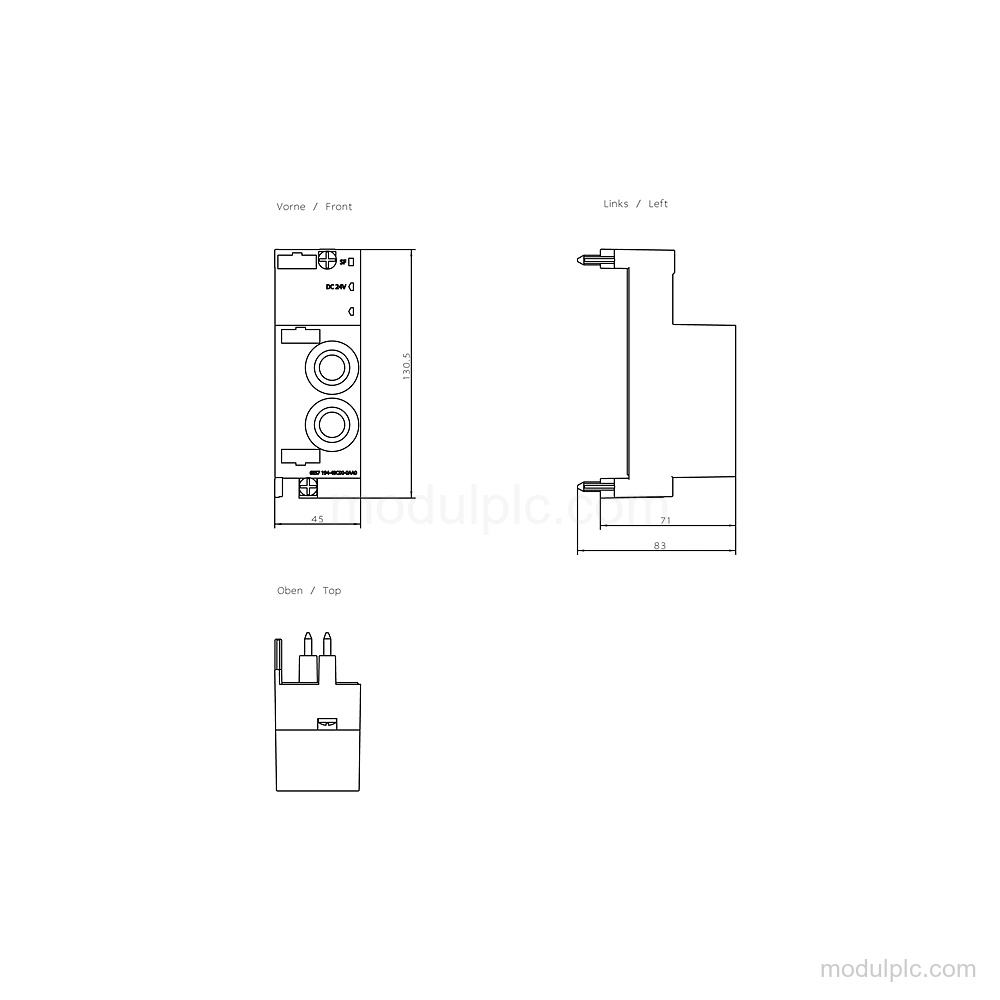

- Dimensions and weight: Dimensions: 45 mm width, 130 mm height, and 100 mm depth. Weight, approx.: 140 g.
- Product lifecycle: Active Product.
Frequently Asked Questions
1. What is the function of the Siemens 6ES7194-4BC00-0AA0?
It is a SIMATIC DP connection module for the PM-E ET 200 PRO power module with direct connection and 2L+ load-voltage feeding within a station.
2. What input current does the connection module support?
The maximum input current from load voltage 2L+ without load is 16 A.
3. How many cable glands can it accommodate?
It supports up to 2 M20 cable glands.
