Product Overview
Technical Summary
| Parameter | Value |
|---|---|

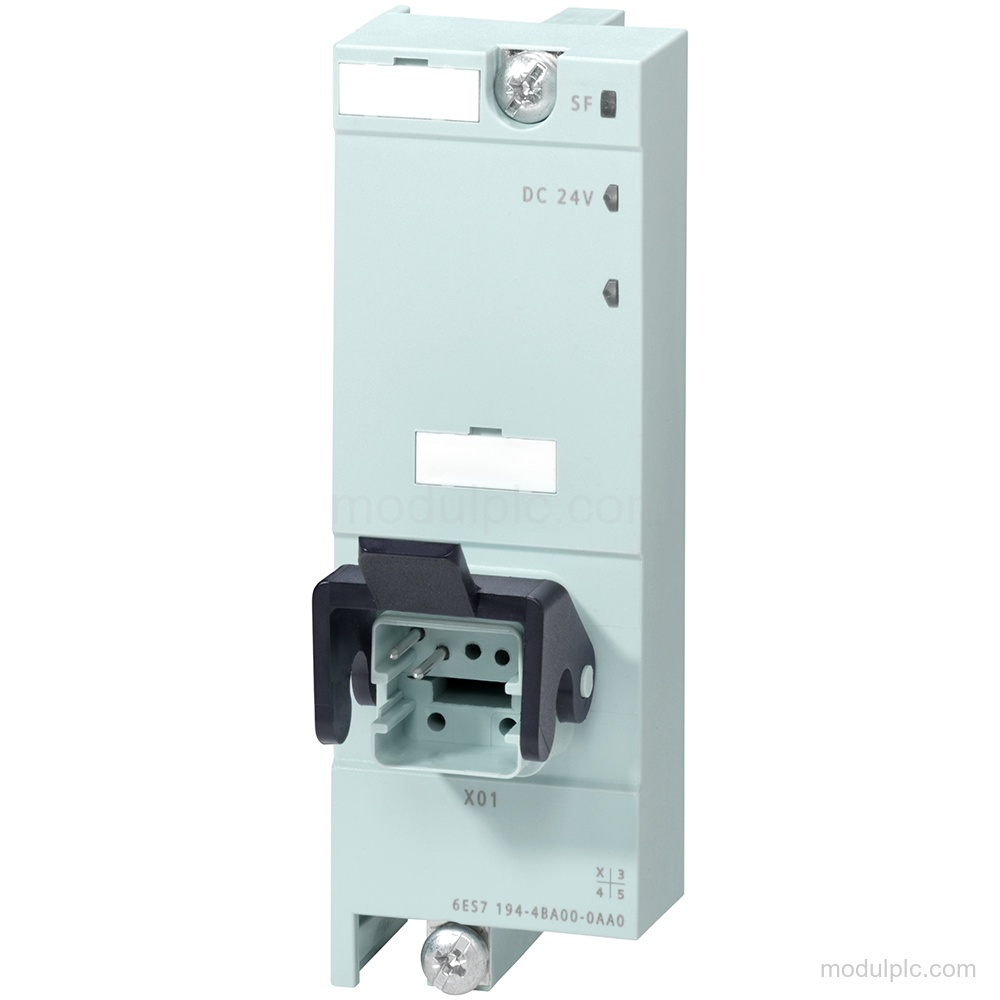

| Module type | SIMATIC DP connection module |
| Supported power module | PM-E ET 200 Pro ECOFAST CU DP |
| Connection | 1x ECOFAST connection, RS-485 |
| Load-voltage function | Feeding of load voltage 2L+ within a station |
| Maximum input current | 10 A from load voltage 2L+, without load |
| Connection conductor | 1x ECOFAST Cu |
Applications
- Station load-voltage feeding: Feeds load voltage 2L+ within a station.
Key Features
- Module function: Connection module for power module PM-E ET 200 Pro ECOFAST CU DP.
- ECOFAST interface: Has 1x ECOFAST connection for RS-485.

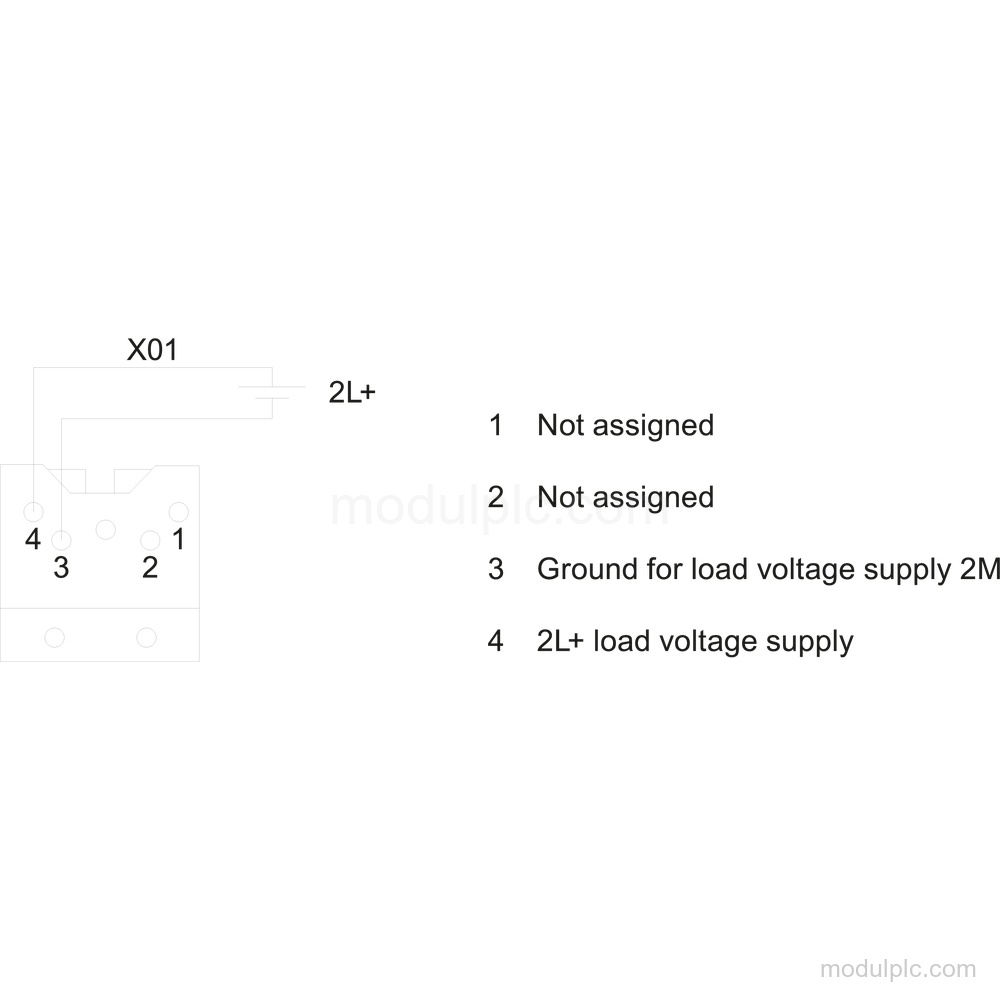

- Load-voltage feeding: Feeds load voltage 2L+ within a station through 1x ECOFAST Cu.
- Maximum input current: Input current from load voltage 2L+ is max. 10 A without load.

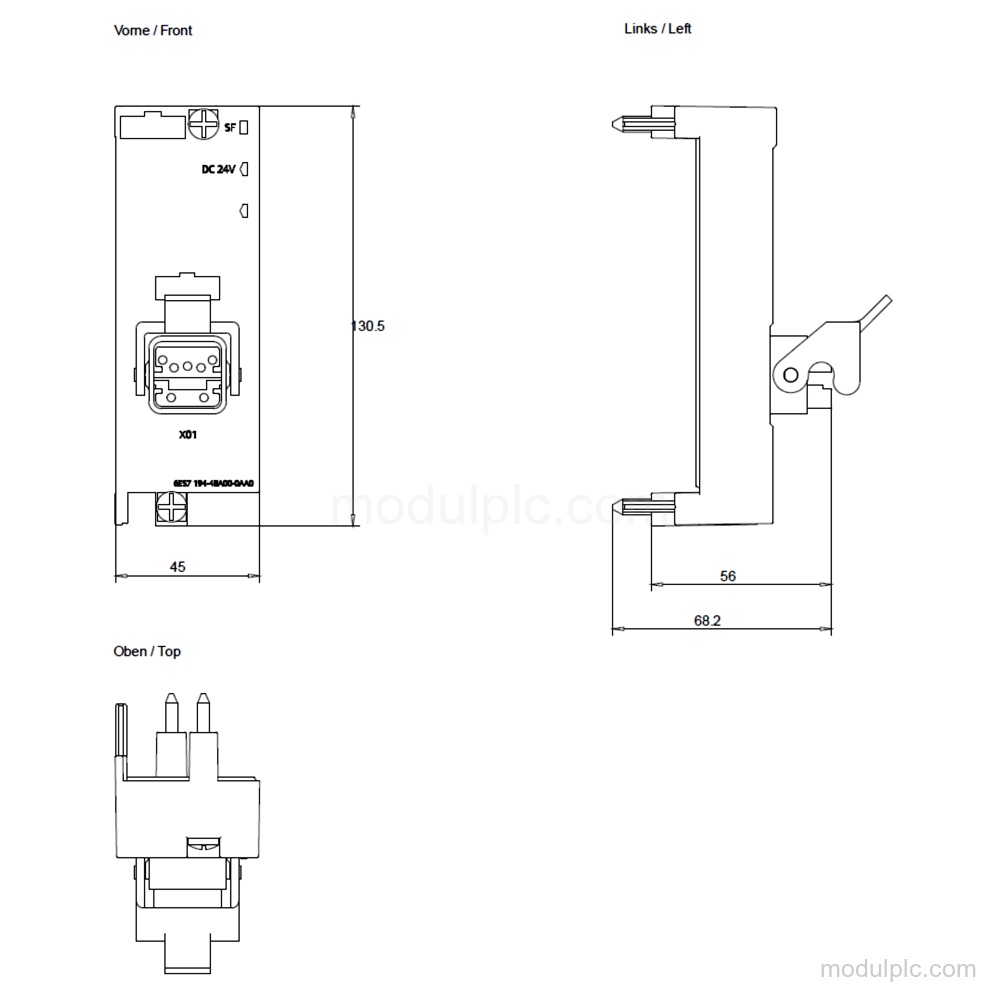

- Product dimensions: Width: 45 mm; height: 130 mm; depth: 60 mm.
Frequently Asked Questions
1. What is the function of Siemens 6ES7194-4BA00-0AA0?
It is a SIMATIC DP connection module for the power module PM-E ET 200 Pro ECOFAST CU DP.
2. Which connection does the 6ES7194-4BA00-0AA0 provide?
It provides 1x ECOFAST connection for RS-485.
3. What input current limit applies to this module?
The input current from load voltage 2L+ is max. 10 A without load.
