Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Module type | SIMATIC DP connection module |
| Supported CPU | ET 200pro CPU IM 154-8 PN/DP |

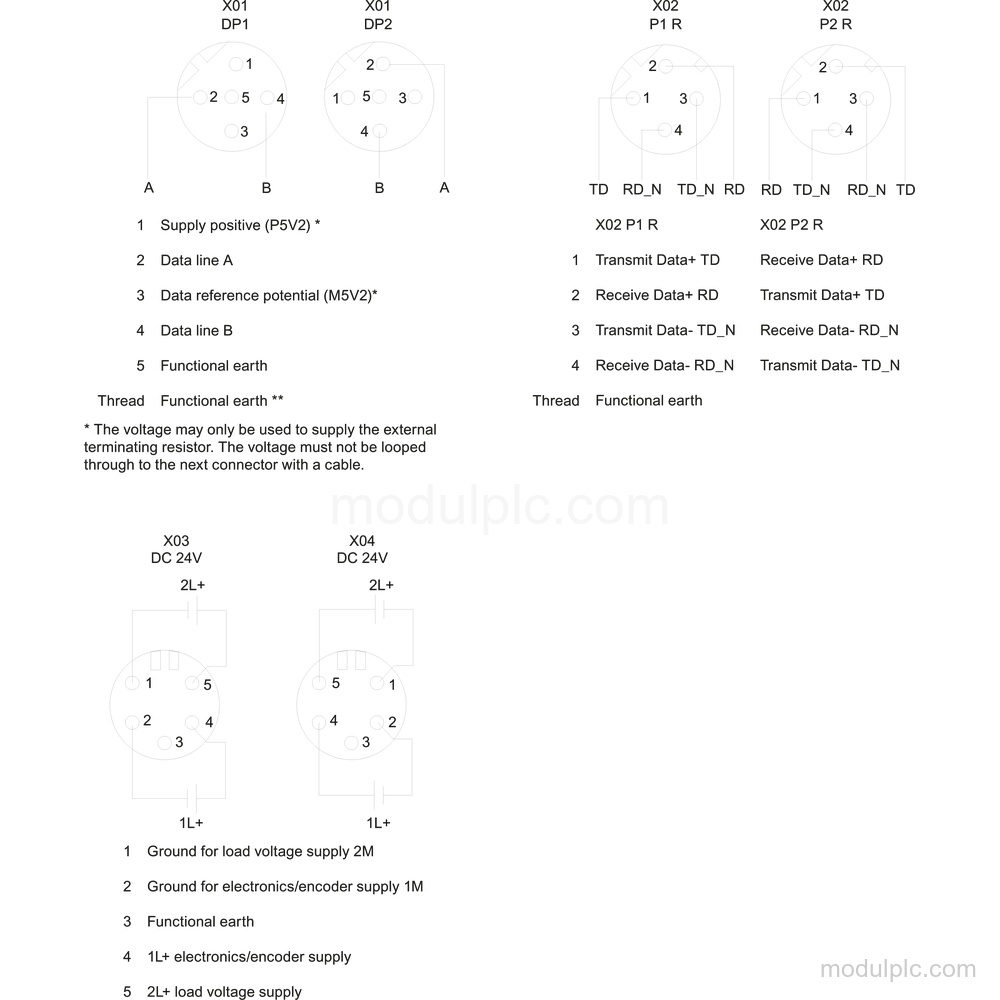

| Connections | 4x M12 and 2x 7/8" |
| Supported protocols | PROFINET and PROFIBUS DP |
| Lifecycle | Product cancellation |
Applications
- CPU connection: Connects the ET 200pro CPU IM 154-8 PN/DP through 4x M12 and 2x 7/8" connections for PROFINET and PROFIBUS DP.
Key Features
- Connection module: SIMATIC DP connection module for ET 200pro CPU IM 154-8 PN/DP.
- Connections: Has 4x M12 and 2x 7/8" connections.
- Supported protocols: Supports PROFINET and PROFIBUS DP.

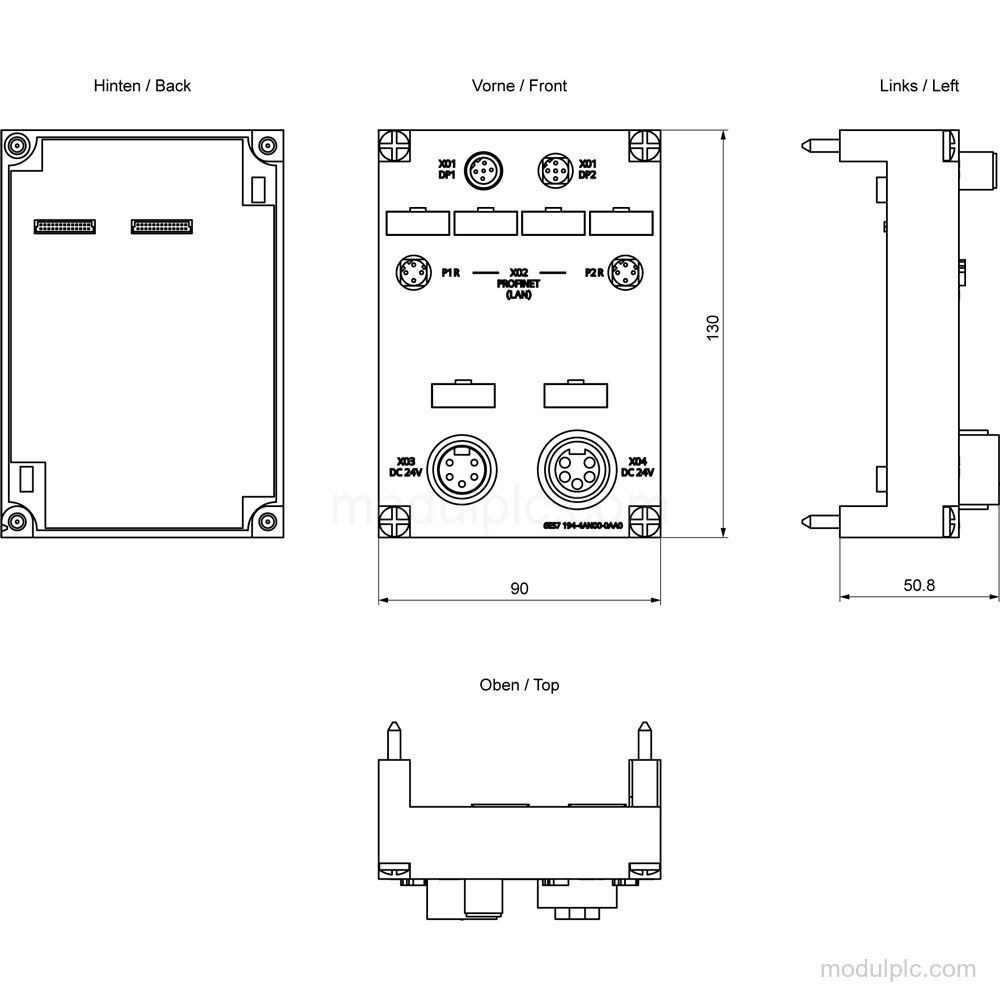

- Dimensions: Width: 90 mm; height: 130 mm; depth: 51 mm.
- Product lifecycle: Product cancellation.
- Weight: Net weight: 0.610 kg.
Frequently Asked Questions
1. What is the function of Siemens 6ES7194-4AN00-0AA0?
It is a SIMATIC DP connection module for ET 200pro CPU IM 154-8 PN/DP.
2. Which connections does the module have?
It has 4x M12 and 2x 7/8" connections.
3. Which protocols does it support?
It supports PROFINET and PROFIBUS DP.
4. What are its dimensions?
Width is 90 mm, height is 130 mm, and depth is 51 mm.
