Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Module type | Fail-safe electronic module F-switch with PROFIsafe |
| Digital inputs | 2 fail-safe digital inputs |
| Digital outputs | 3 fail-safe digital outputs |
| Supply voltage | 24 V DC rated value |
| Power loss | 3 W typical |
| Input current, signal "1" | 3.5 mA typical |
| Short-circuit protection | Yes, for digital outputs |
| Performance level | e according to ISO 13849-1 |
| SIL | 3 according to IEC 61508 |
Applications

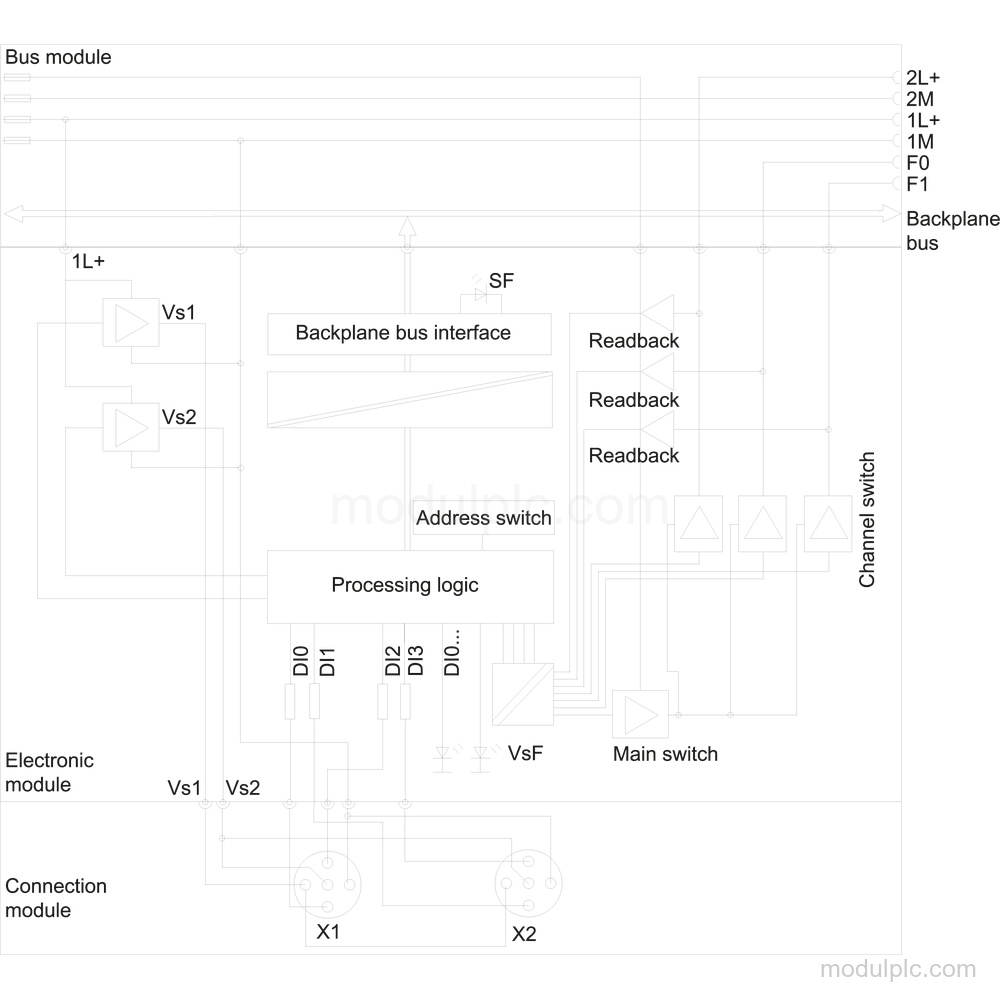

- Safe backplane busbar switching: Provides 3 fail-safe outputs for safe switching of the backplane busbars 2L+, F0, and F1.
Key Features
- Fail-safe electronic module: SIMATIC DP ET200 PRO F-switch module with PROFIsafe.
- Fail-safe inputs and outputs: Has 2 fail-safe digital inputs and 3 fail-safe digital outputs.
- Backplane busbar switching: Outputs are for safe switching of the backplane busbars 2L+, F0, and F1.
- Supply and power loss: Rated supply voltage: 24 V DC. Power loss, typical: 3 W.
- Protection and safety level: Digital outputs have short-circuit protection. Performance level: e according to ISO 13849-1; SIL: 3 according to IEC 61508.

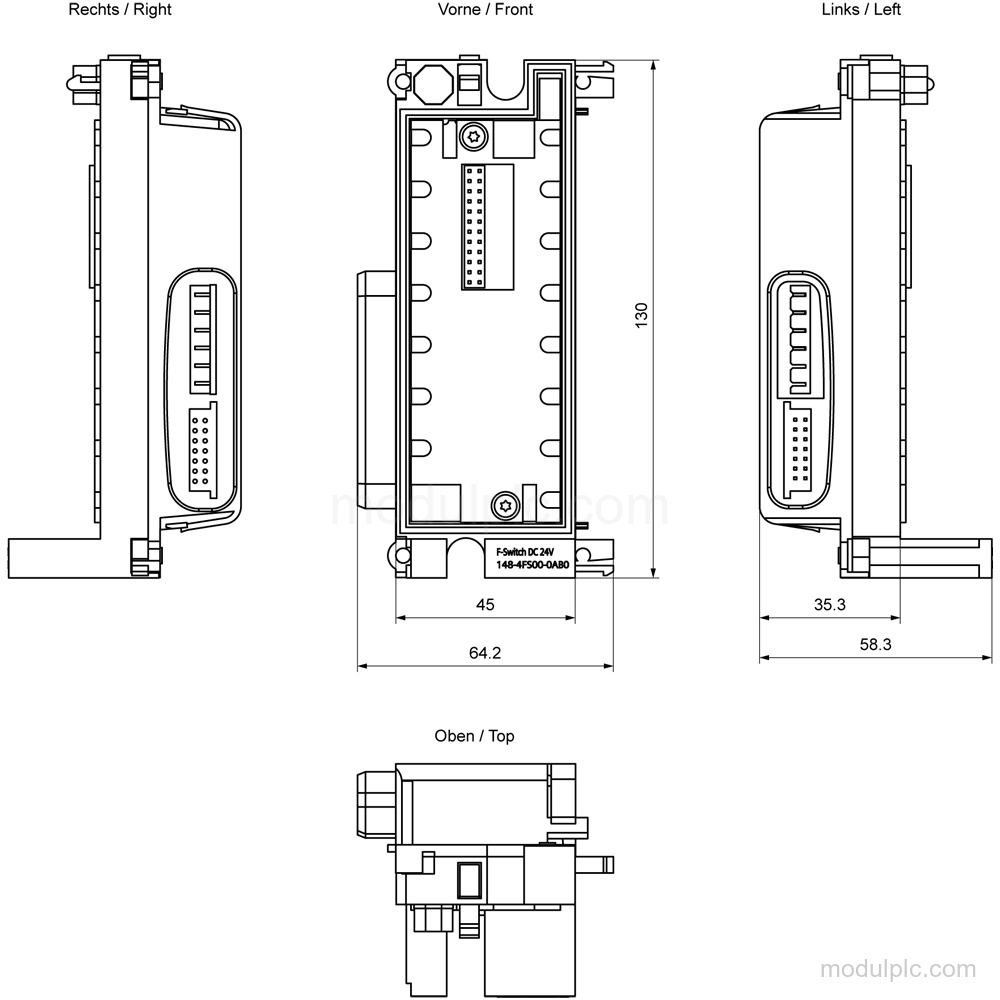

- Module dimensions: Width: 45 mm; height: 130 mm; depth: 65 mm.
Frequently Asked Questions
1. What is the function of Siemens 6ES7148-4FS00-0AB0?
It is a SIMATIC DP ET200 PRO fail-safe electronic module with PROFIsafe and 3 fail-safe outputs for safe switching of the backplane busbars 2L+, F0, and F1.
2. How many inputs and outputs does the module have?
It has 2 fail-safe digital inputs and 3 fail-safe digital outputs.
3. What supply voltage does this module require?
The rated supply voltage is 24 V DC.
