Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Digital inputs | 8 |
| Digital outputs | 4 |
| Rated supply voltage | 24 V |
| Rated output current for signal "1" | 2 A |
| Performance level according to ISO 13849-1 | e |
| SIL according to IEC 61508 | 3 |
| Typical power loss | 5.8 W |
Applications
- Fail-safe digital signal acquisition: The module provides 8 digital inputs for fail-safe digital signal acquisition.
- Fail-safe digital output control: The module provides 4 digital outputs with a rated output current of 2 A for signal "1".
Key Features
- Fail-safe digital I/O: Provides 8 digital inputs and 4 digital outputs for the SIMATIC DP ET200 PRO system.
- 24 V supply: Rated supply voltage: 24 V DC.
- 2 A output current: Rated output current for signal "1": 2 A.
- Output protection: The digital outputs have short-circuit protection and can control a digital input according to IEC 61131-2, type 2.
- Safety performance: Achieves performance level e according to ISO 13849-1 and SIL 3 according to IEC 61508 in safety mode.

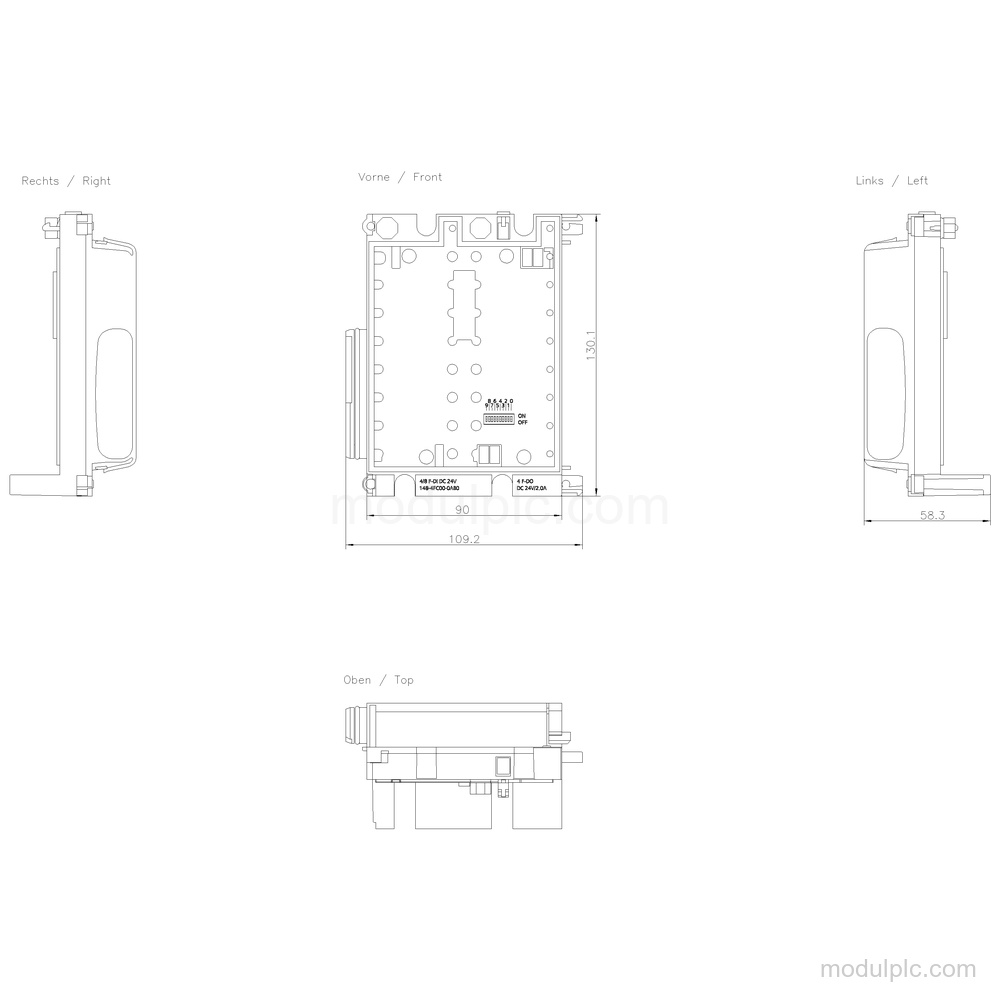

- Compact dimensions: Dimensions: 90 mm width, 130 mm height, and 65 mm depth.
Frequently Asked Questions
1. How many digital inputs and outputs does the 6ES7148-4FC00-0AB0 have?
It has 8 digital inputs and 4 digital outputs.
2. What supply voltage does this fail-safe module use?
Its rated supply voltage is 24 V DC.
3. What is the rated output current?
The rated output current for signal "1" is 2 A.
4. Does the module provide output short-circuit protection?
Yes, the digital outputs have short-circuit protection.
5. What are the module dimensions?
The dimensions are 90 mm wide, 130 mm high, and 65 mm deep.
