Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Module type | SIMATIC DP ET200 PRO fail-safe electronic module |
| Digital inputs | 16 |
| Input type | 8/16 F-DI |
| Rated supply voltage | 24 V DC |
| Communication | PROFIsafe |
| Maximum input current from supply voltage 1L+ | 120 mA; Typical |
| Backplane bus input current | 20 mA from 3.3 V DC |
| Typical power loss | 4.5 W |
| Safety performance level | e according to ISO 13849-1 |
| Safety integrity level | 3 according to IEC 61508 |
Applications
- Fail-safe signal acquisition: The module performs fail-safe digital signal acquisition through its F-DI inputs and PROFIsafe.
Key Features
- Fail-safe digital inputs: The module has 8/16 F-DI and 16 digital inputs for fail-safe signal acquisition.
- PROFIsafe communication: The module supports PROFIsafe in SIMATIC DP ET200 PRO applications.
- Supply voltage: Rated supply voltage: 24 V DC. Reverse polarity protection: Yes.
- Input current: Maximum input current from supply voltage 1L+: 120 mA, typical. Input current from the backplane bus 3.3 V DC: 20 mA.
- Safety performance: Achievable safety classification in safety mode: Performance Level e according to ISO 13849-1 and SIL 3 according to IEC 61508.

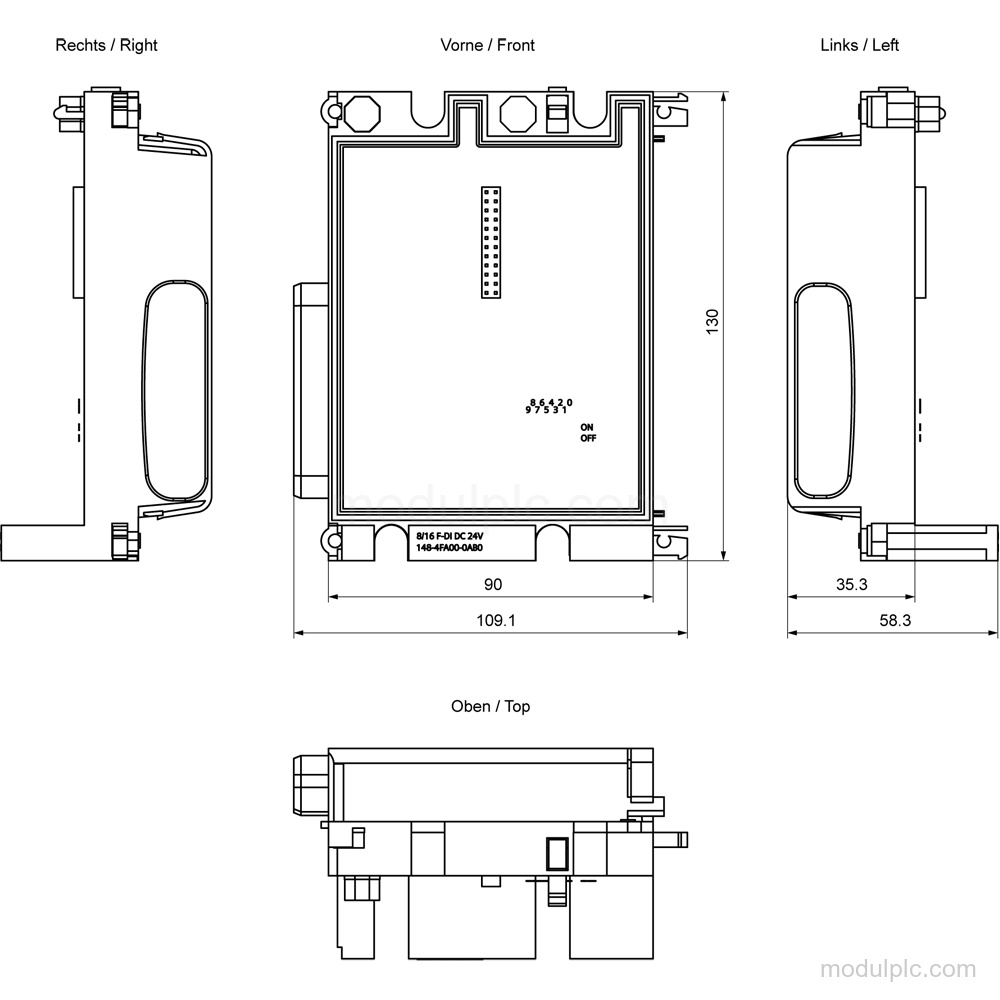

- Dimensions and power loss: Width: 90 mm; height: 130 mm; depth: 65 mm. Typical power loss: 4.5 W.
Frequently Asked Questions
1. What type of module is Siemens 6ES7148-4FA00-0AB0?
It is a SIMATIC DP ET200 PRO fail-safe electronic module with 8/16 F-DI and PROFIsafe.
2. How many digital inputs does the module have?
The module has 16 digital inputs.
3. What supply voltage does it require?
Its rated supply voltage is 24 V DC, and it has reverse polarity protection.
4. What safety performance can it achieve?
In safety mode, it can achieve Performance Level e according to ISO 13849-1 and SIL 3 according to IEC 61508.
