Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Module type | Pneumatic interface for ET 200 PRO |
| Digital pneumatic outputs | 16 |
| Connectable valves, max. | 16 |
| Rated load voltage 2L+ | 24 V |
| Load current, max. | 370 mA; Including valves |
| Output current for signal "1", rated | 16 mA |
| Permissible working pressure | 3 bar to 8 bar |
| Rated flow rate | 800 l/min |
| Diagnostic function | Yes |
| Potential separation | Between the channels and backplane bus; between backplane bus and all other circuit components |
| Power loss, typ. | 3.7 W |
Applications
- Pneumatic valve coupling: Couples 16 digital pneumatic outputs with the Festo valve terminal CPV-14.
Key Features

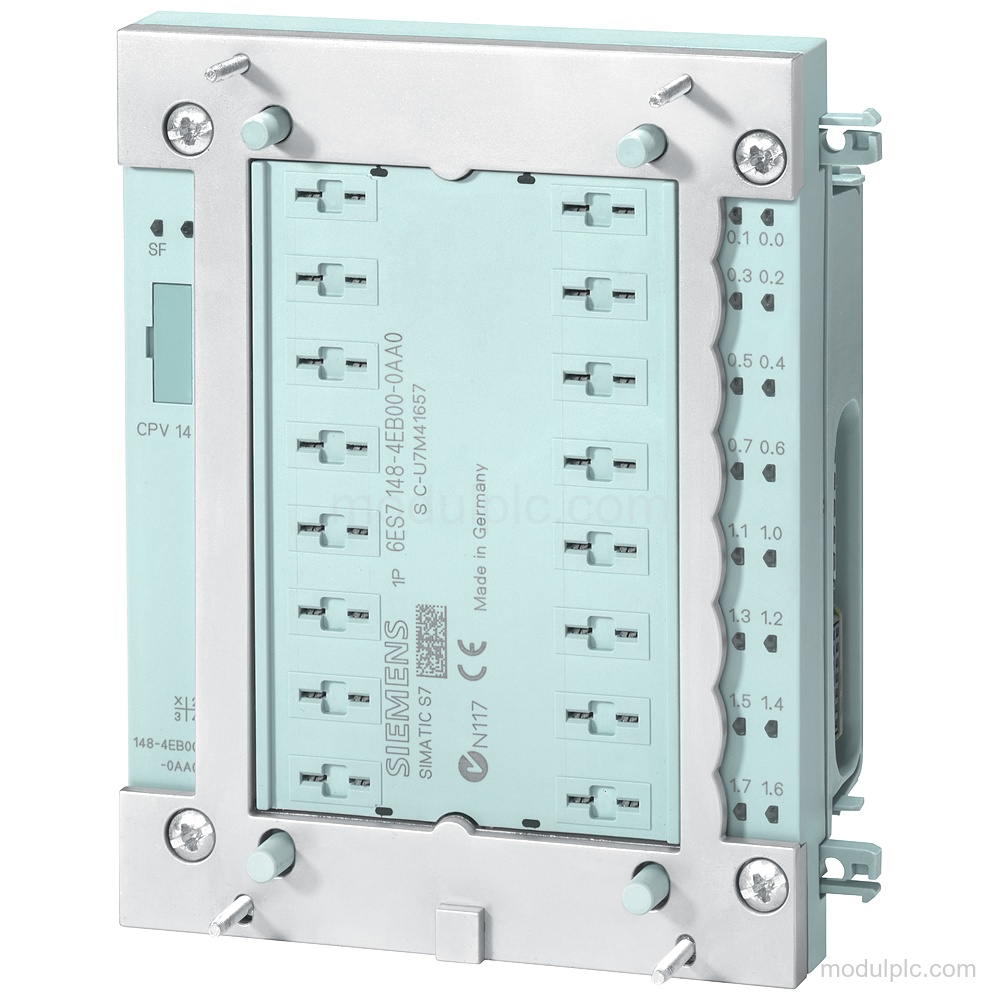

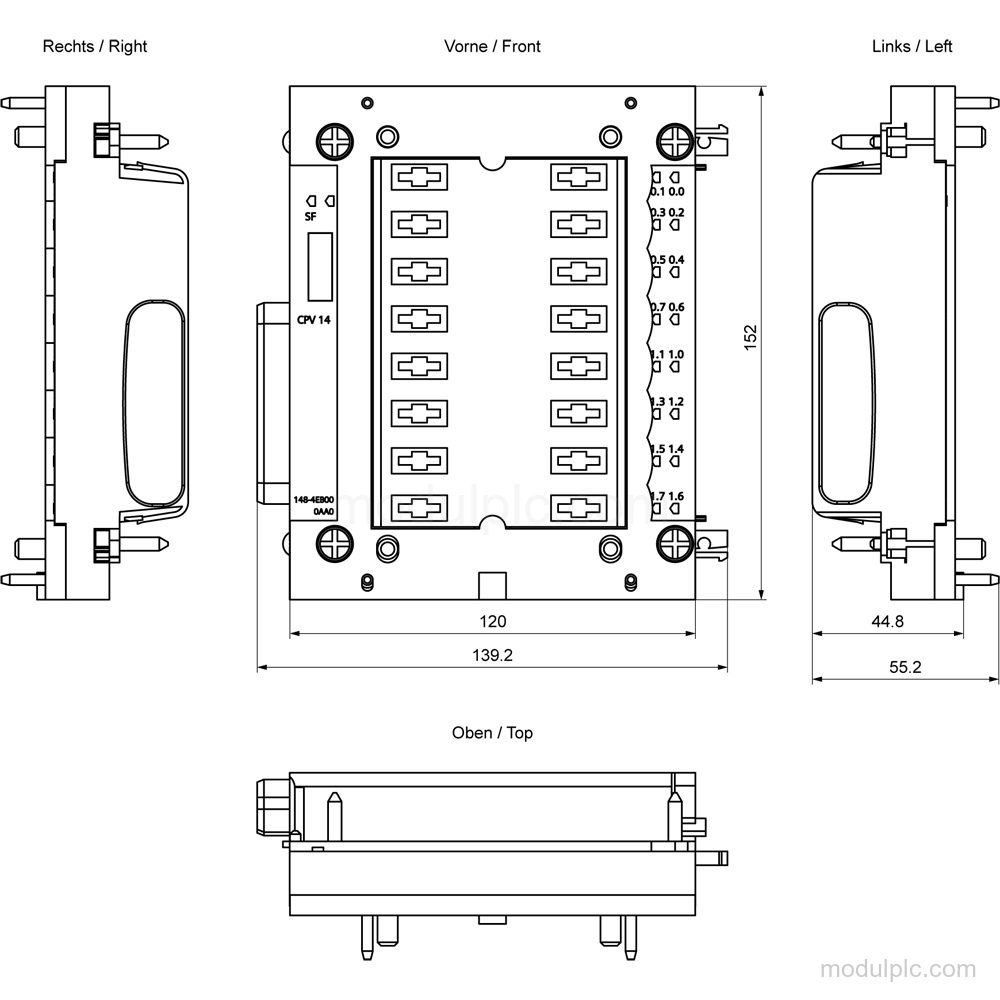

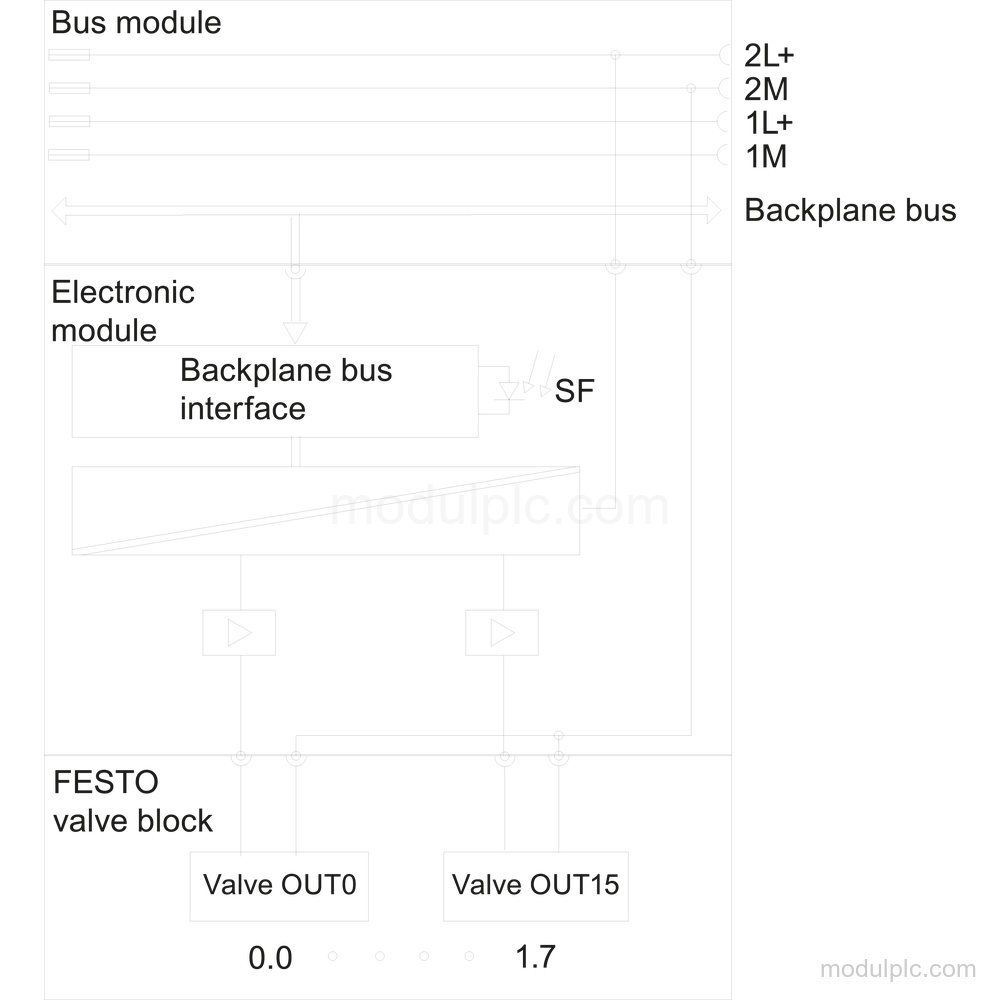

- Pneumatic interface: Pneumatic interface for ET 200 PRO for coupling with the Festo valve terminal CPV-14; bus module included.
- Digital pneumatic outputs: Has 16 digital pneumatic outputs and supports up to 16 connectable valves.
- Supply and protection: Rated load voltage 2L+ is 24 V; short-circuit protection and reverse polarity protection are available.
- Output characteristics: Output current for signal "1" is 16 mA rated, with a permissible range of 14 mA to 20 mA; switching frequency with inductive load is 20 Hz max.
- Diagnostics and indicators: Has diagnostics function, diagnostic alarm, readable diagnostic information, red Group error SF LED, and green digital output status indicators.
- Pneumatic data and isolation: Permissible working pressure is 3 bar to 8 bar, rated flow rate is 800 l/min, and isolation is tested with 707 V DC (type test).
Frequently Asked Questions
1. What is the function of Siemens 6ES7148-4EB00-0AA0?
It is a pneumatic interface for ET 200 PRO with 16 digital pneumatic outputs for coupling with the Festo valve terminal CPV-14; the bus module is included.
2. How many valves can this pneumatic interface connect?
It supports up to 16 connectable valves.
3. What supply voltage and diagnostics does it have?
The rated load voltage 2L+ is 24 V. It has a diagnostics function, diagnostic alarm, readable diagnostic information, a red Group error SF LED, and green digital output status indicators.
