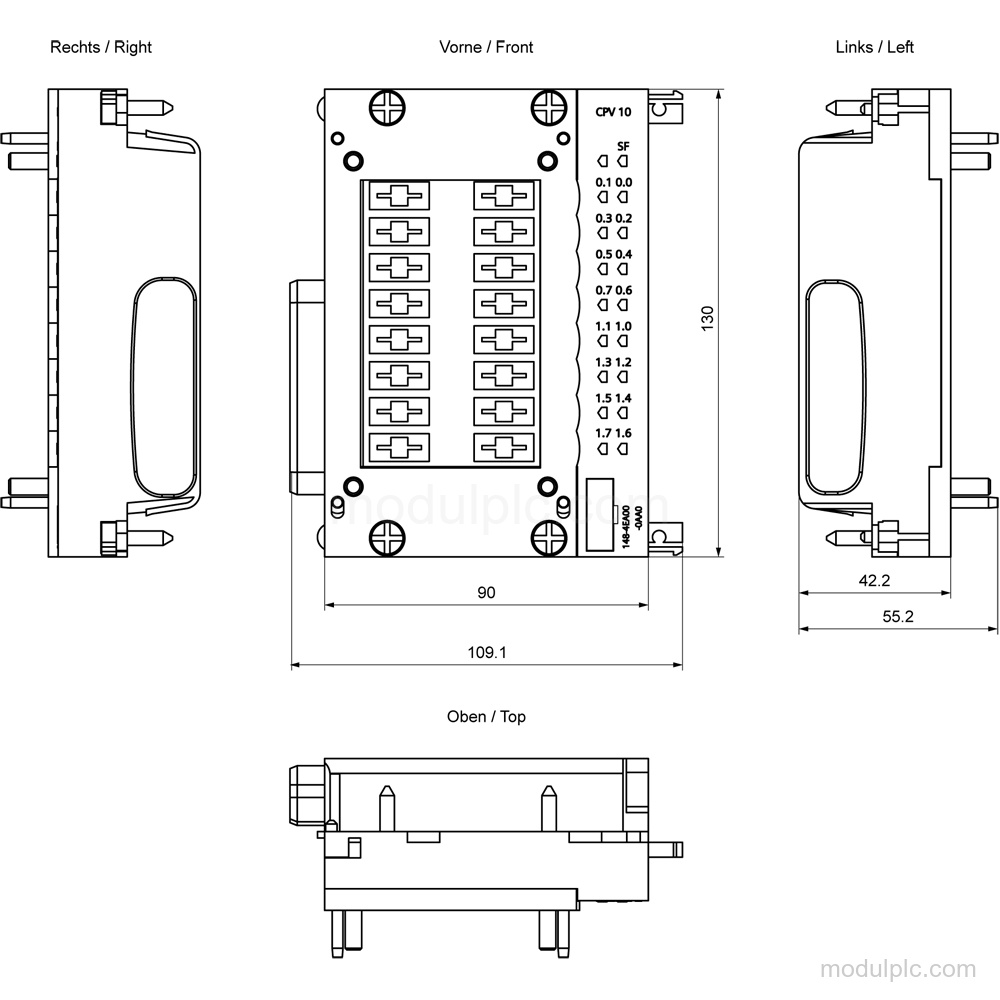

Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Module type | SIMATIC DP pneumatic interface |
| Digital outputs | 16 |
| Rated load voltage | 24 V DC |
| Output current for signal "1" | 12 mA rated; 11 mA to 15 mA permissible range |
| Connectable valves, max. | 16 |
| Permissible working pressure | 3 bar to 8 bar |
| Rated flow rate | 400 l/min |
| Input current from load voltage, max. | 300 mA; including valves |
| Input current from backplane bus, max. | 25 mA |
| Power loss, typ. | 2.6 W |
| Diagnostics | Diagnostics function, diagnostic alarm, readable diagnostic information |
| Isolation tested with | 707 V DC (type test) |
Applications
- Pneumatic valve-terminal coupling: Couples with the Festo valve terminal CPV-10 through a pneumatic interface with 16 digital outputs.
Key Features
- Pneumatic interface: SIMATIC DP pneumatic interface for coupling with the Festo valve terminal CPV-10; bus module included.
- Digital outputs: 16 digital outputs with a rated output current of 12 mA for signal "1" and a permissible range of 11 mA to 15 mA.
- Supply protection: The 24 V load voltage has short-circuit protection and reverse polarity protection.
- Pneumatics: Up to 16 connectable valves; permissible working pressure is 3 bar to 8 bar and rated flow rate is 400 l/min.
- Diagnostics: Diagnostics function, diagnostic alarm, readable diagnostic information, group error SF LED, and digital-output status LED are available.

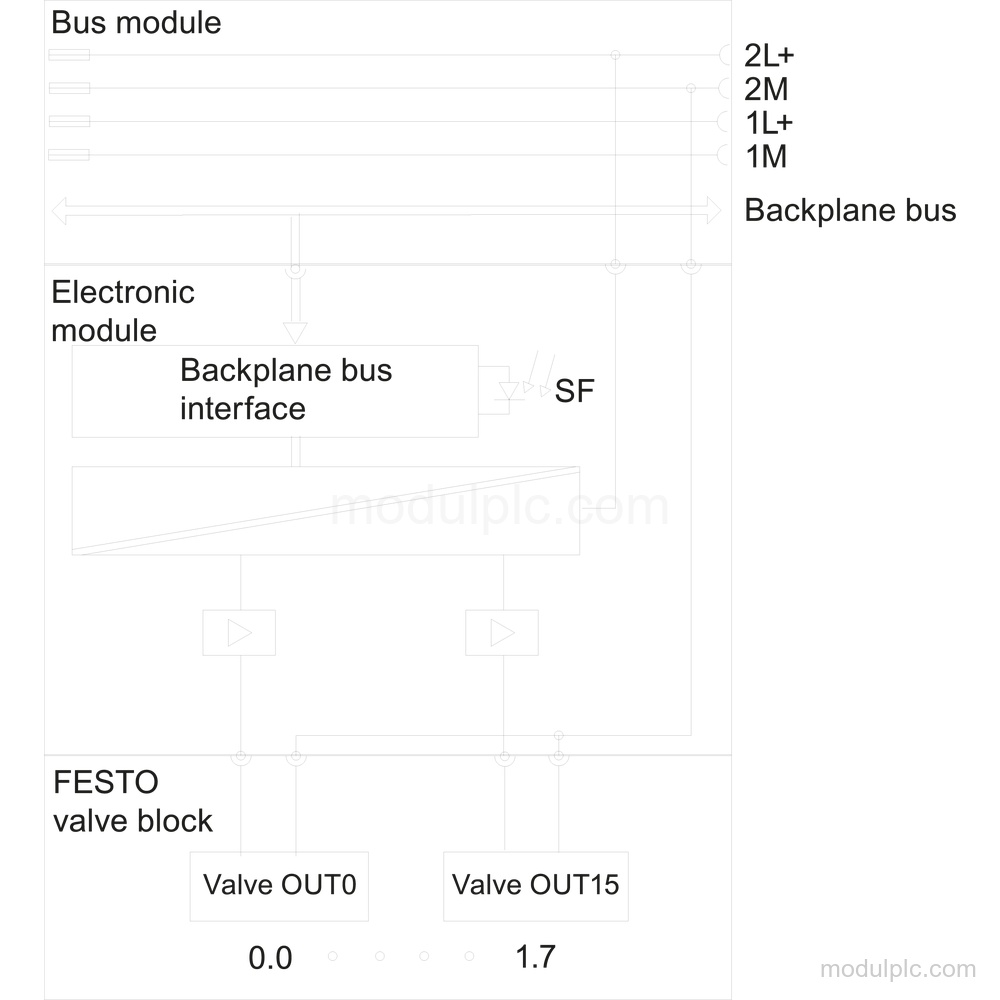

- Electrical isolation: Potential separation is provided between the backplane bus and all other circuit components, and between the digital-output channels and the backplane bus.
Frequently Asked Questions
1. What is the function of Siemens 6ES7148-4EA00-0AA0?
It is a SIMATIC DP pneumatic interface for coupling with the Festo valve terminal CPV-10 and has 16 digital outputs.
2. How many valves can this pneumatic interface connect?
It can connect up to 16 valves.
3. What supply voltage does the module use?
The rated load voltage 2L+ is 24 V DC.
4. What working pressure and flow rate are supported?
The permissible working pressure is 3 bar to 8 bar, with a rated flow rate of 400 l/min.
