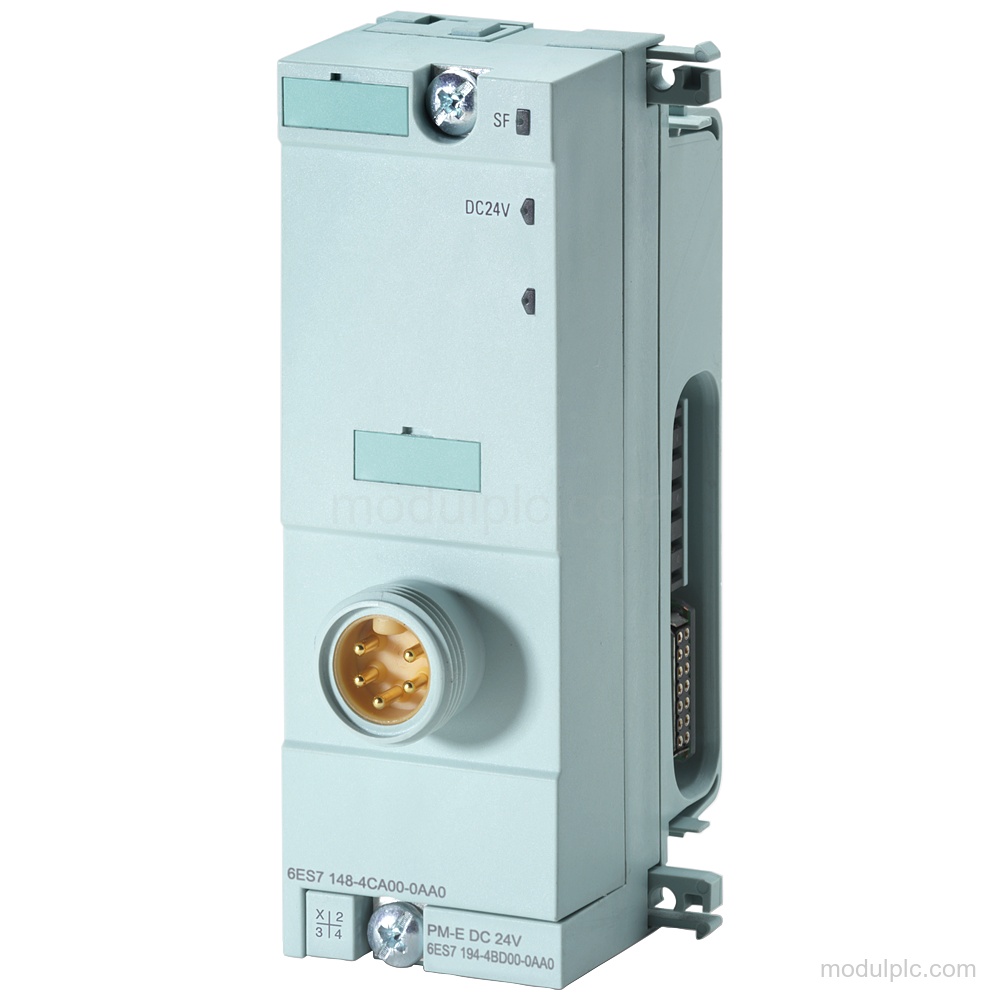

Product Overview
Technical Summary

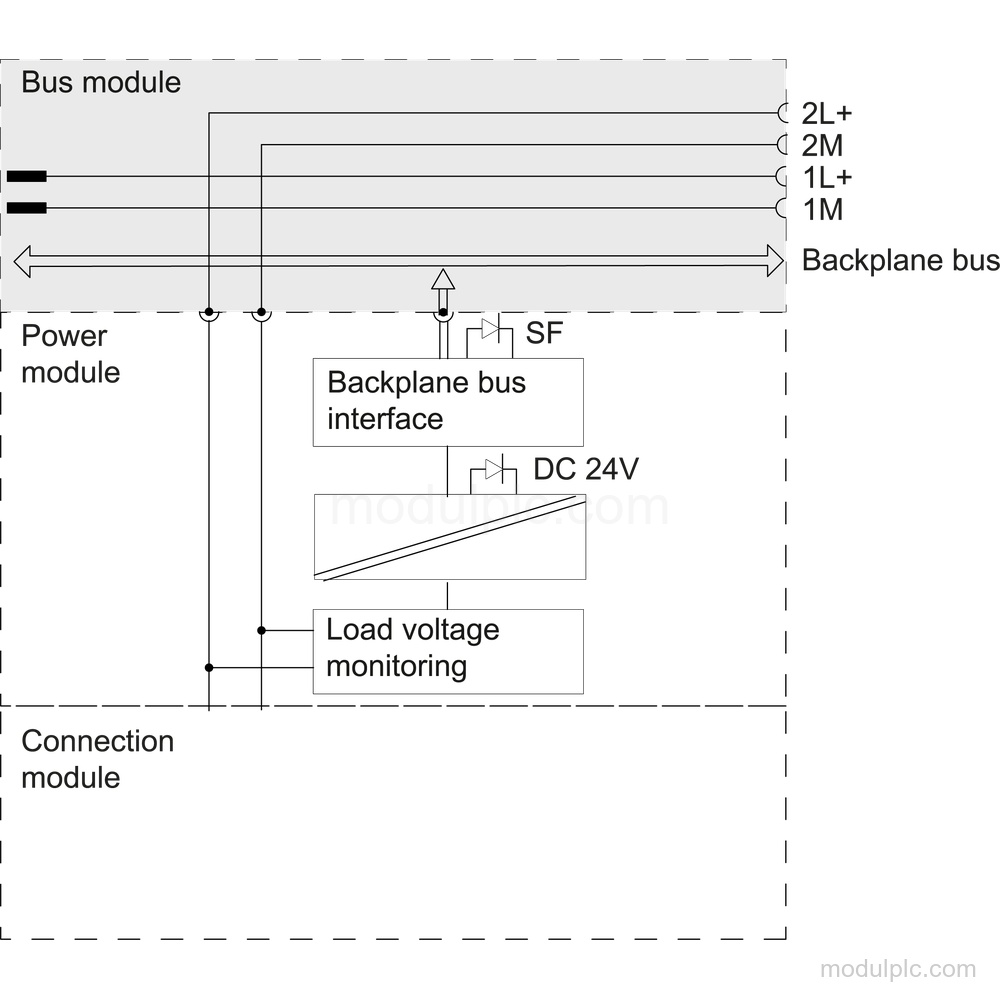

| Parameter | Value |
|---|---|
| Product type | SIMATIC DP power module for Electronic modules ET 200 PRO |
| Rated load voltage 2L+ | 24 V DC |
| Maximum current carrying capacity | 10 A up to 55 °C on the internal busbars of the ET 200pro |
| Input current from load voltage 2L+, max. | 3 mA |
| Power loss, typ. | 0.1 W |
| Short-circuit protection | Yes; via an exchangeable fuse in the power module |
| Reverse polarity protection | Yes; against destruction |
| Diagnostics | Diagnostics function, readable diagnostic information, missing load voltage, and load voltage monitoring LED |
| Potential separation | Yes; between load voltage and backplane bus |
| Isolation tested with | 707 V DC (type test) |
Key Features
- Power module for ET 200 PRO: SIMATIC DP power module for Electronic modules ET 200 PRO.
- 24 V DC load voltage: Rated load voltage 2L+: 24 V DC.
- Current carrying capacity: Maximum 10 A up to 55 °C on the internal busbars of the ET 200pro.
- Protection and diagnostics: Has short-circuit protection via an exchangeable fuse, reverse polarity protection against destruction, and diagnostics for missing load voltage.
- Electrical separation: Has potential separation between load voltage and backplane bus; isolation is tested with 707 V DC (type test).

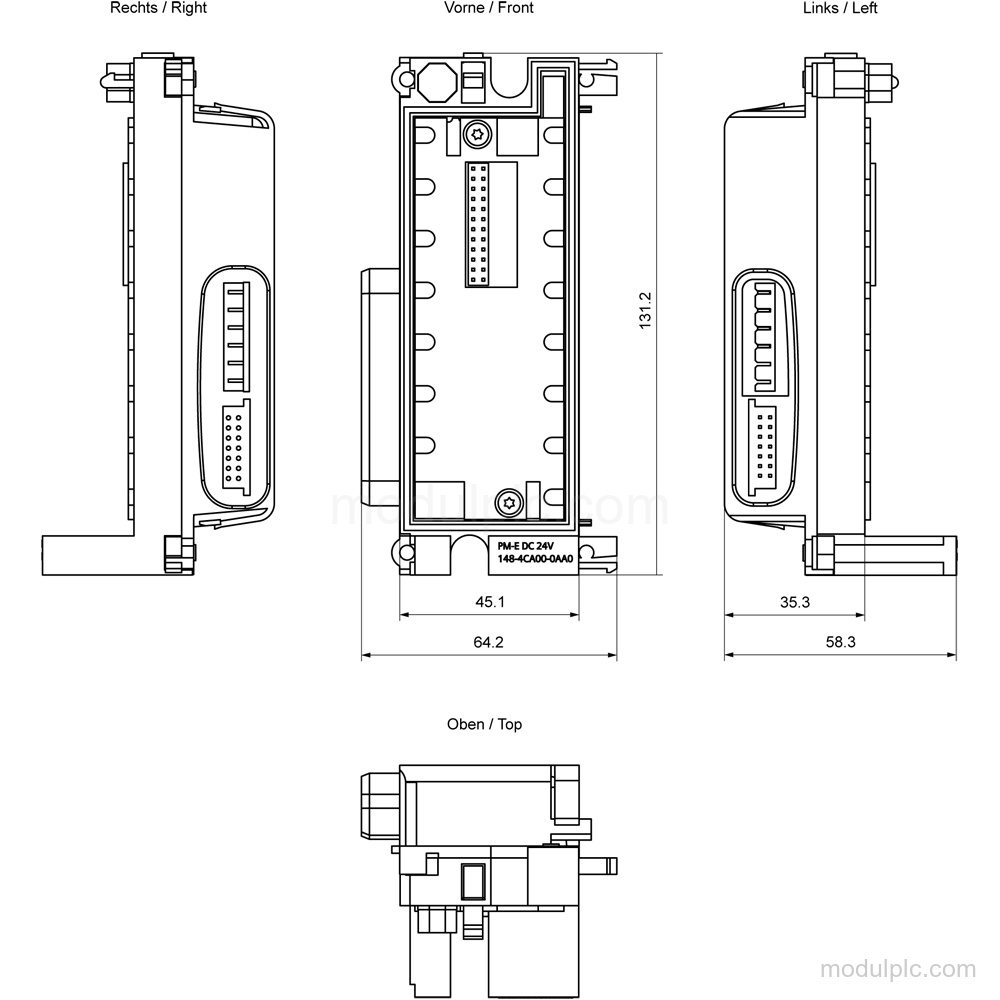

- Connection and dimensions: Includes a bus module. The PM-E connection module is ordered separately. Dimensions: 45 mm width, 130 mm height, and 35 mm depth.
Frequently Asked Questions
1. What is the function of the Siemens 6ES7148-4CA00-0AA0?
It is a SIMATIC DP power module for Electronic modules ET 200 PRO.
2. What load voltage does this power module use?
The rated load voltage 2L+ is 24 V DC.
3. What is the maximum current carrying capacity?
It is 10 A up to 55 °C on the internal busbars of the ET 200pro.
4. What diagnostics does the module provide?
It has a diagnostics function, readable diagnostic information, missing-load-voltage diagnostics, and a load voltage monitoring LED, plus a red group error SF LED.
5. What is included and what must be ordered separately?
It includes a bus module. The PM-E connection module 6ES7194-4B.00-0AA0 is ordered separately.
