Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Module type | SIMATIC DP electronic module for ET 200 PRO |
| Digital outputs | 4 |
| Rated load voltage | 24 V DC |
| Rated output current, signal "1" | 2 A |
| Output type | Current-sourcing; IEC 61131, type 2 |
| Wire-break diagnosis | Yes; channel by channel |
| Short-circuit diagnosis | Yes; channel by channel |
| Power loss | 2.5 W, typical |
| Bus module | Included |
| Connection module | IO 6ES7194-4..00-0AA0 ordered separately |
Applications
- Digital output control: Controls digital inputs and loads through the 4 digital outputs.
- Redundant load control: Supports redundant control of a load using two outputs.
Key Features
- Digital outputs: 4 current-sourcing digital outputs with output type according to IEC 61131, type 2.
- Load voltage: Rated load voltage: 24 V DC. Electronic short-circuit protection is provided per channel.
- Output current: Rated output current for signal "1": 2 A; residual current for signal "0", max.: 0.5 mA.
- Diagnostics: Channel-by-channel wire-break and short-circuit diagnosis, diagnostic alarm, readable diagnostic information, and LED indicators.

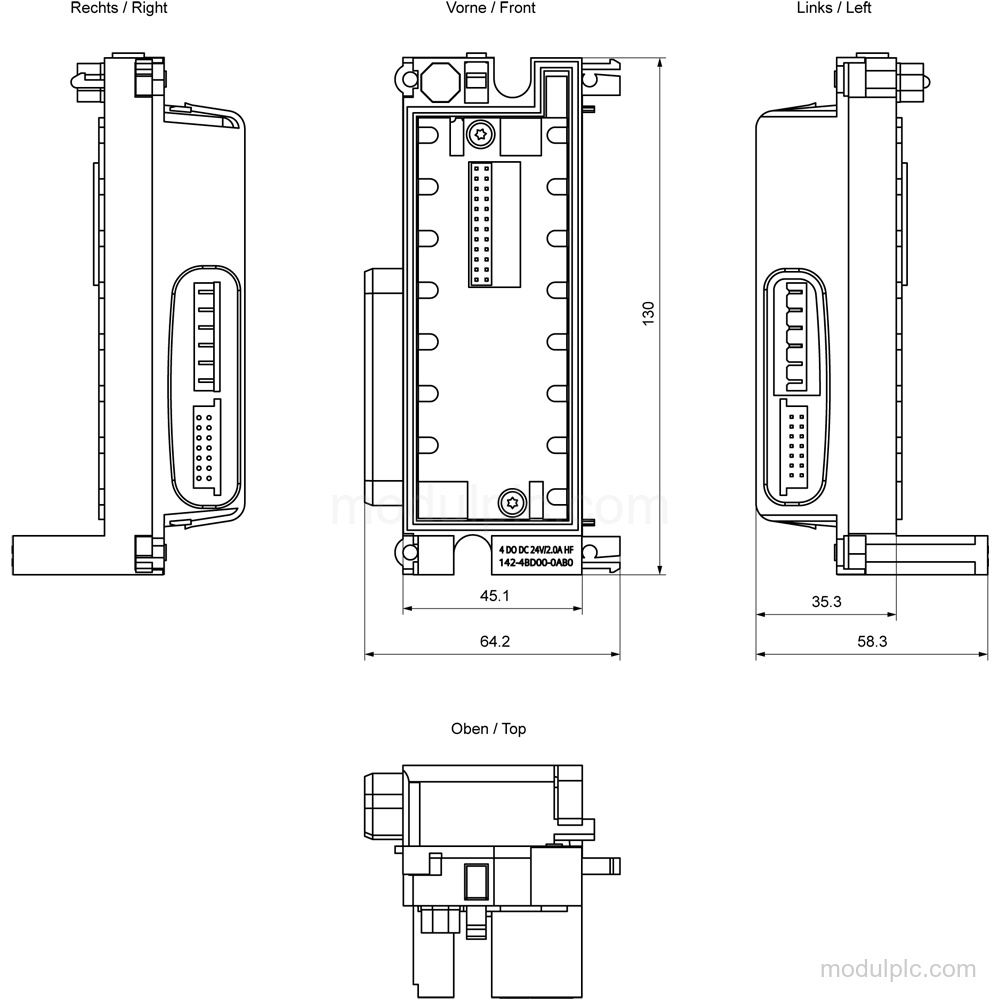

- Connection and mounting: Includes the bus module. Connection module IO 6ES7194-4..00-0AA0 is ordered separately. Shielded and unshielded cable length: max. 30 m.

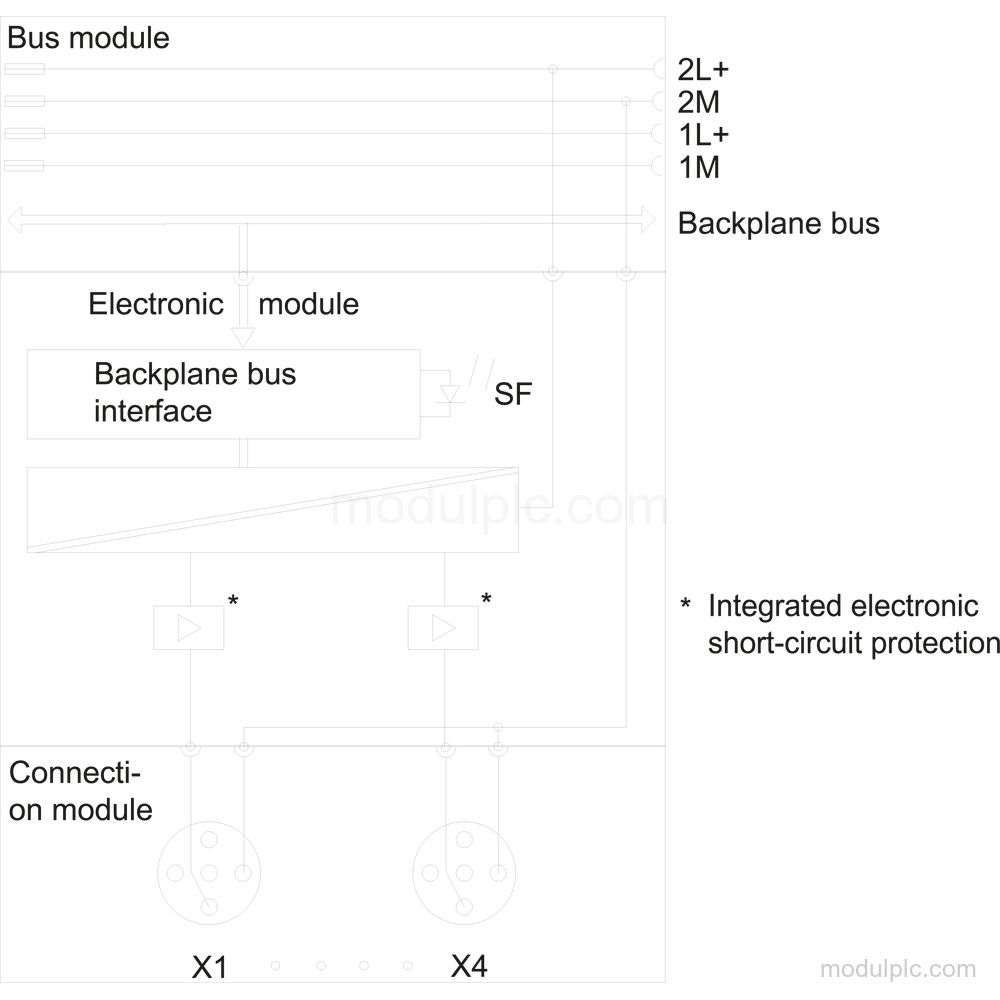

- Electrical isolation: Potential separation exists between the backplane bus and all other circuit components, and between digital-output channels and the backplane bus.
Frequently Asked Questions
1. How many digital outputs does 6ES7142-4BD00-0AB0 have?
It has 4 current-sourcing digital outputs.
2. What load voltage does the module use?
The rated load voltage is 24 V DC.
3. What diagnostics are available?
It provides channel-by-channel wire-break and short-circuit diagnosis, diagnostic alarms, readable diagnostic information, and LED indicators.
4. What is included in the configuration?
The bus module is included. Connection module IO 6ES7194-4..00-0AA0 is ordered separately.
