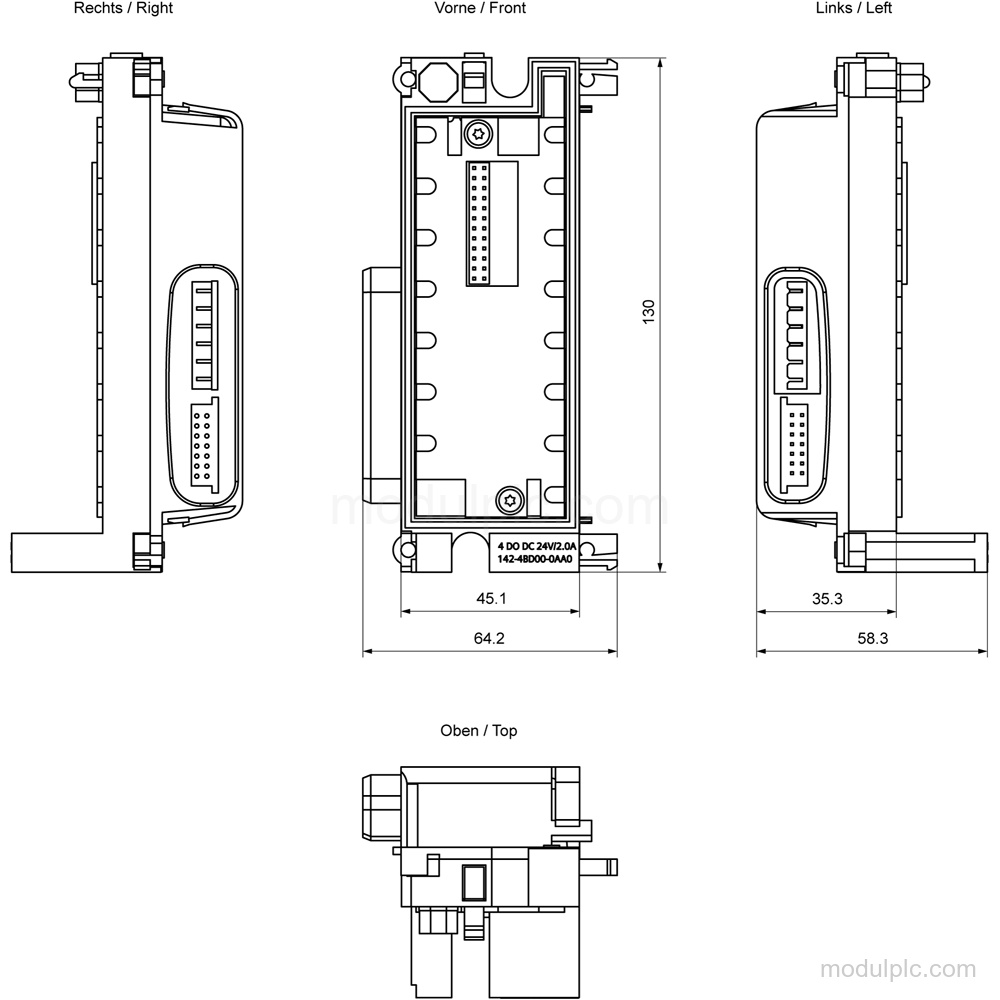

Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Digital output channels | 4 |
| Rated load voltage | 24 V DC |
| Rated output current for signal "1" | 2 A |
| Output type | Current-sourcing; IEC 61131 type 2 |
| Load resistance range | 12 Ω to 4 kΩ |
| Switching frequency with resistive load, max. | 100 Hz |
| Input current from load voltage 2L+ (without load), max. | 20 mA |
| Power loss, typ. | 2 W |
| Isolation tested with | 707 V DC (type test) |
Applications
- Digital output control: Controls digital loads through 4 current-sourcing outputs at 24 V DC.
- Redundant load control: Supports redundant control of a load using two outputs; parallel switching for uprating is not supported.
- Digital input control: Can control a digital input.
Key Features
- Digital outputs: 4 current-sourcing digital outputs, output type according to IEC 61131 type 2.
- Supply and output current: Rated load voltage is 24 V DC; rated output current for signal "1" is 2 A.
- Output protection: Outputs have short-circuit protection; inductive shutdown voltage is limited to 2L+ (-47 V).
- Diagnostics: Module diagnostics, diagnostic alarm, readable diagnostic information, and short-circuit diagnosis are supported.
- Status indication: LEDs indicate group error SF (red) and digital output status (green).

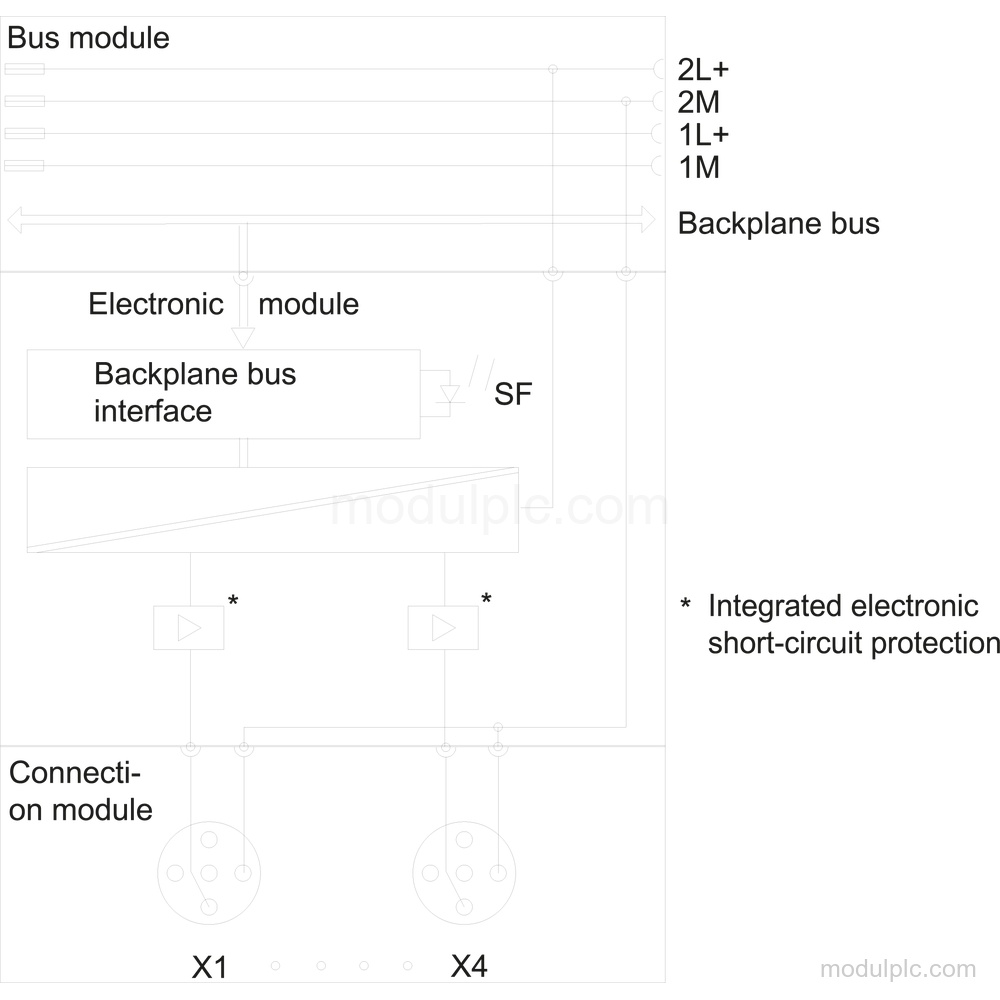

- Isolation and connection: Potential separation is provided between the backplane bus and other circuit components, and between digital outputs and the backplane bus. The IO connection module is ordered separately.
Frequently Asked Questions
1. How many digital outputs does Siemens 6ES7142-4BD00-0AA0 have?
It has 4 current-sourcing digital outputs.
2. What load voltage and output current does the module use?
The rated load voltage is 24 V DC, and the rated output current for signal "1" is 2 A.
3. What diagnostics are available?
The module supports module diagnostics, diagnostic alarms, readable diagnostic information, short-circuit diagnosis, a red group error SF LED, and green digital output status LEDs.
4. Is the IO connection module included?
It is without the IO connection module; connection module IO 6ES7194-4..00-0AA0 is ordered separately.
