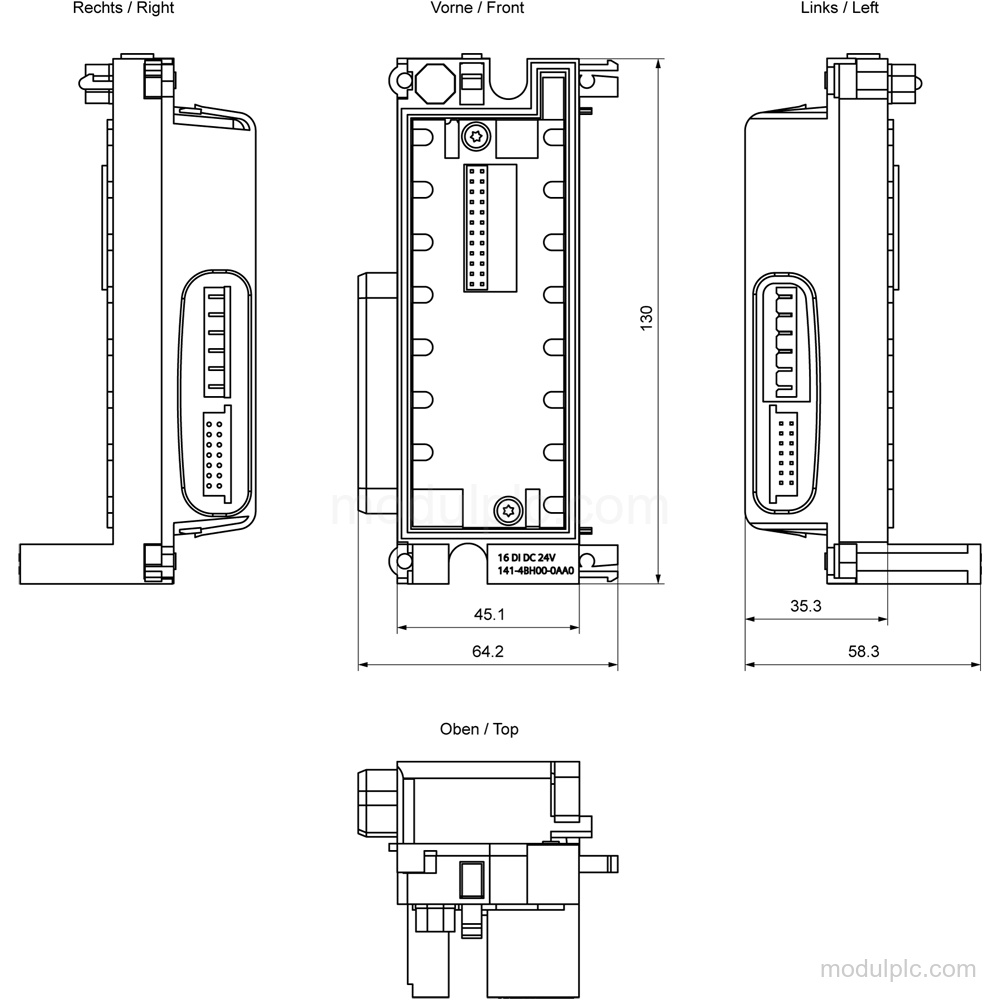

Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Module type | SIMATIC DP electronic module for ET 200 PRO |
| Digital inputs | 16 |
| Rated input voltage | 24 V DC |
| Signal "0" input voltage | -3 to +5V |
| Signal "1" input voltage | +11 to +30V |
| Input current for signal "1", typ. | 4 mA |
| Encoder supply outputs | 8 |
| Module diagnostics | Yes |
| Output current, max. | 1 A up to 55 °C |
| Power loss, typ. | 3 W |
Key Features
- Digital inputs: 16 digital inputs with P-reading sourcing/sinking input and IEC 61131 type 1 input characteristic.
- 24 V DC signals: Rated input voltage is 24 V DC; signal "0" is -3 to +5V and signal "1" is +11 to +30V.
- Module diagnostics: The module has diagnostics, diagnostic alarms, readable diagnostic information, and a red SF group error LED.
- Encoder connections: Supports 2-wire sensors with a permissible quiescent current of 1.5 mA max.; encoder supply has 8 outputs.

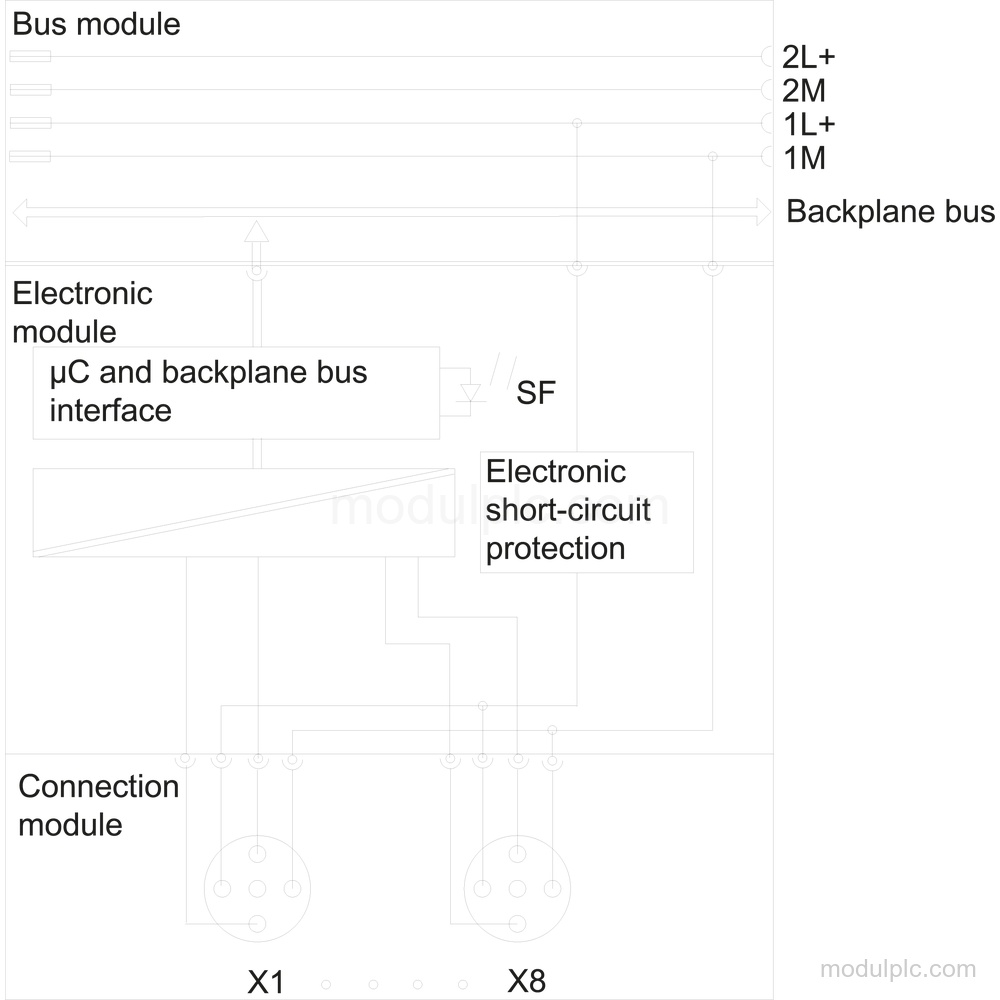

- Protection and isolation: Encoder supply outputs have electronic short-circuit protection; digital inputs are electrically separated from the backplane bus.
- Included and separate components: The bus module is included. Connection module IO 6ES7194-4CB50-0AA0 is not included and must be ordered separately.
Frequently Asked Questions
1. How many digital inputs does Siemens 6ES7141-4BH00-0AA0 have?
It has 16 digital inputs.
2. What input voltage does the module use?
The rated input voltage is 24 V DC. Signal "0" is -3 to +5V, and signal "1" is +11 to +30V.
3. Does the module provide diagnostics?
Yes. It has module diagnostics, diagnostic alarms, readable diagnostic information, and a red SF group error LED.
4. What encoder connections are supported?
It supports 2-wire sensors with a permissible quiescent current of 1.5 mA max. Encoder supply has 8 outputs.
5. What is not included in this configuration?
The connection module IO 6ES7194-4CB50-0AA0 is not included and must be ordered separately.
