Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Module type | SIMATIC DP electronic module for ET 200 PRO |
| Digital inputs | 8 |
| Rated input voltage | 24 V DC |
| Signal 0 input voltage | -3 to +5 V |
| Signal 1 input voltage | 13 to 30 V |
| Input current for signal 1, typ. | 7 mA |
| Encoder supply outputs | 8 |
| Supply voltage input current, max. | 20 mA from supply voltage 1L+; 20 mA from backplane bus 3.3 V DC |
| Diagnostic functions | Diagnostics, diagnostic alarm, readable diagnostic information and short-circuit diagnosis |
| Included | Bus module |
| Not included | Connection module IO 6ES7194-4..00-0AA0 |
Applications
- Digital signal acquisition: The 8 digital inputs acquire 24 V DC signals.
- Encoder signal connection: The module connects 2-wire sensors with a permissible quiescent current of up to 1.5 mA.
Key Features
- 8 digital inputs: The module has 8 digital inputs with P-reading sourcing/sinking input and an IEC 61131 type 1 input characteristic curve.
- 24 V DC input signals: Rated input voltage is 24 V DC; signal 0 is -3 to +5 V and signal 1 is 13 to 30 V.
- SIMATIC DP diagnostics: The module has diagnostics, diagnostic alarms, readable diagnostic information, short-circuit diagnosis and a red group error SF LED.
- Encoder supply outputs: The module has 8 encoder supply outputs with electronic short-circuit protection per module.
- ET 200 PRO connection: A bus module is included. Connection module IO 6ES7194-4..00-0AA0 is not included and must be ordered separately.

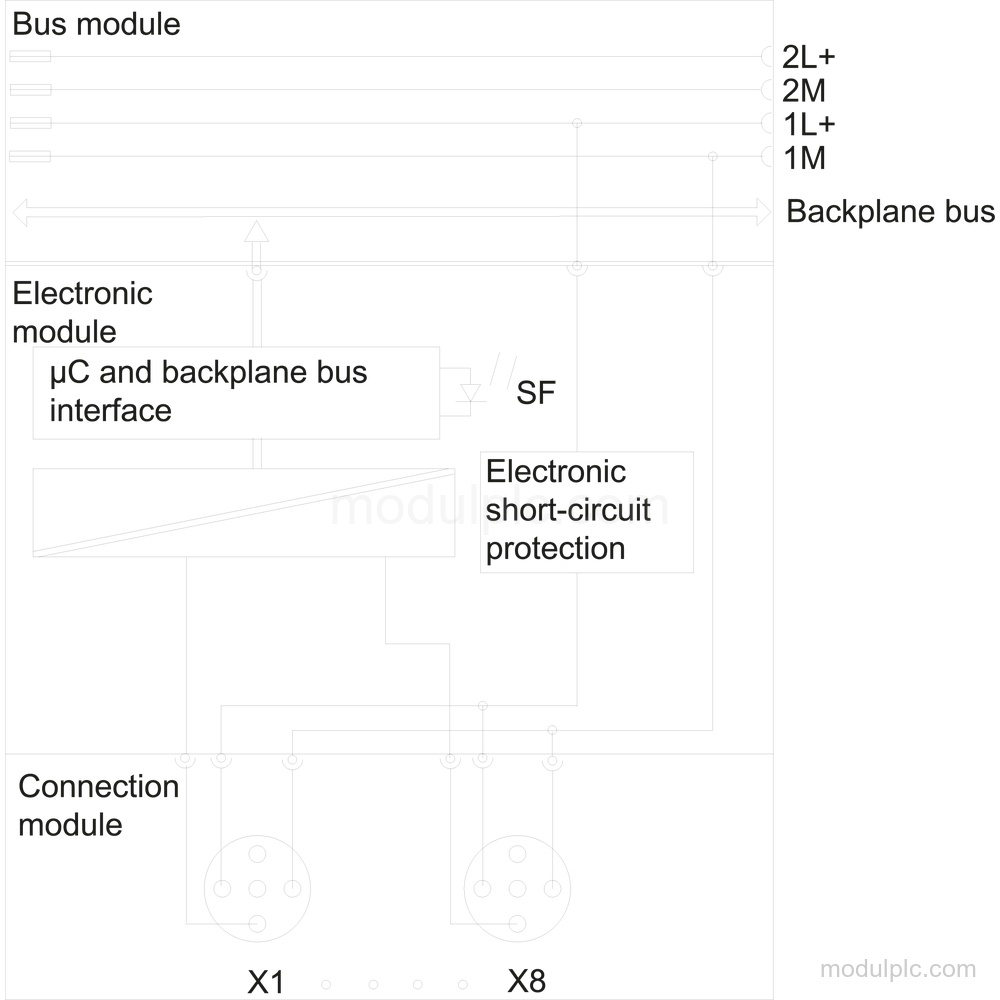

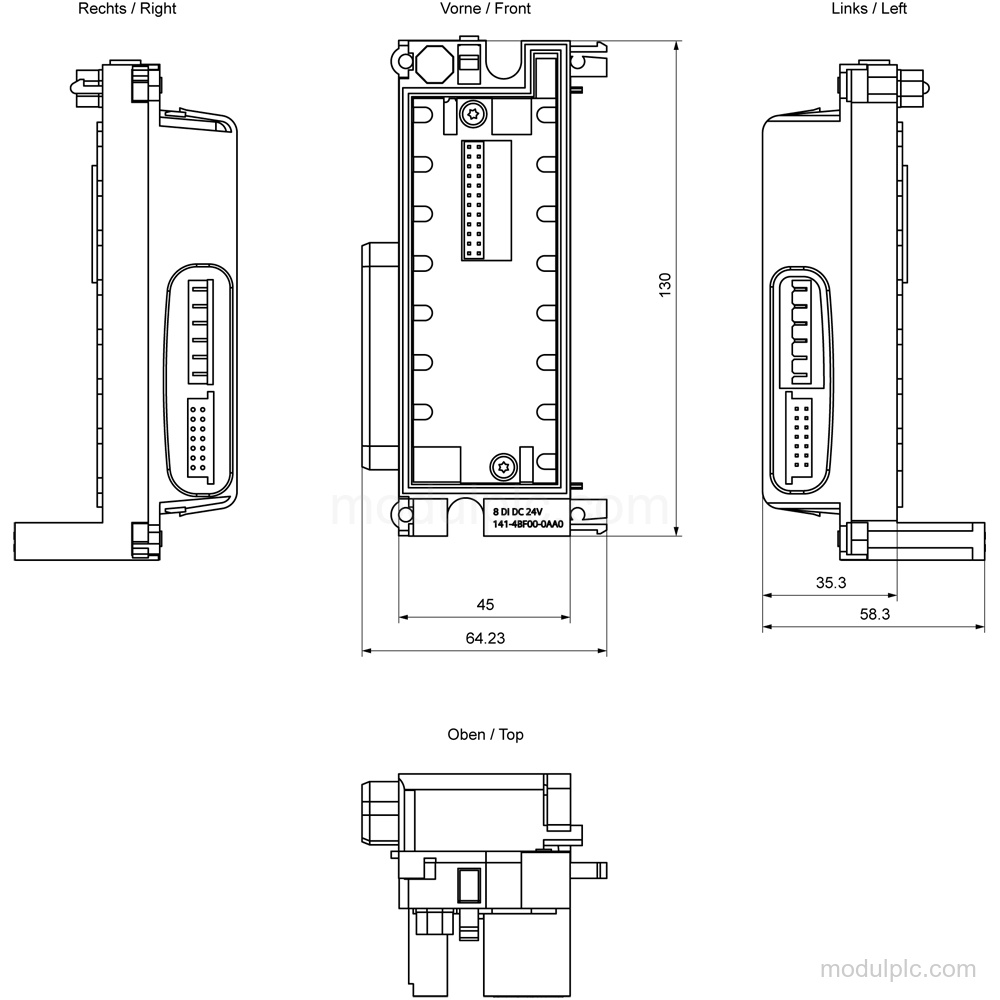

- Compact dimensions: Dimensions are 45 mm wide, 130 mm high and 35 mm deep; weight is approximately 140 g.
Frequently Asked Questions
1. How many digital inputs does Siemens 6ES7141-4BF00-0AA0 have?
It has 8 digital inputs.
2. What input voltage signals does this module support?
The rated input voltage is 24 V DC. Signal 0 is -3 to +5 V, and signal 1 is 13 to 30 V.
3. What diagnostics are available?
It has diagnostics, a diagnostic alarm, readable diagnostic information, short-circuit diagnosis and a red group error SF LED.
4. Is the connection module included with 6ES7141-4BF00-0AA0?
It is not included. Connection module IO 6ES7194-4..00-0AA0 must be ordered separately.
