Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Product type | Vehicle docking accessory |
| Design of the programming device | Mobile computer |
| LAN interface | 1x 10/100 Mbps |
| USB interfaces | 4x USB 2.0 Type A |
| RS-232 interfaces | 1 |
| DC supply, rated value | 19 V |
| DC supply, permissible range | 9 V to 36 V |
Key Features

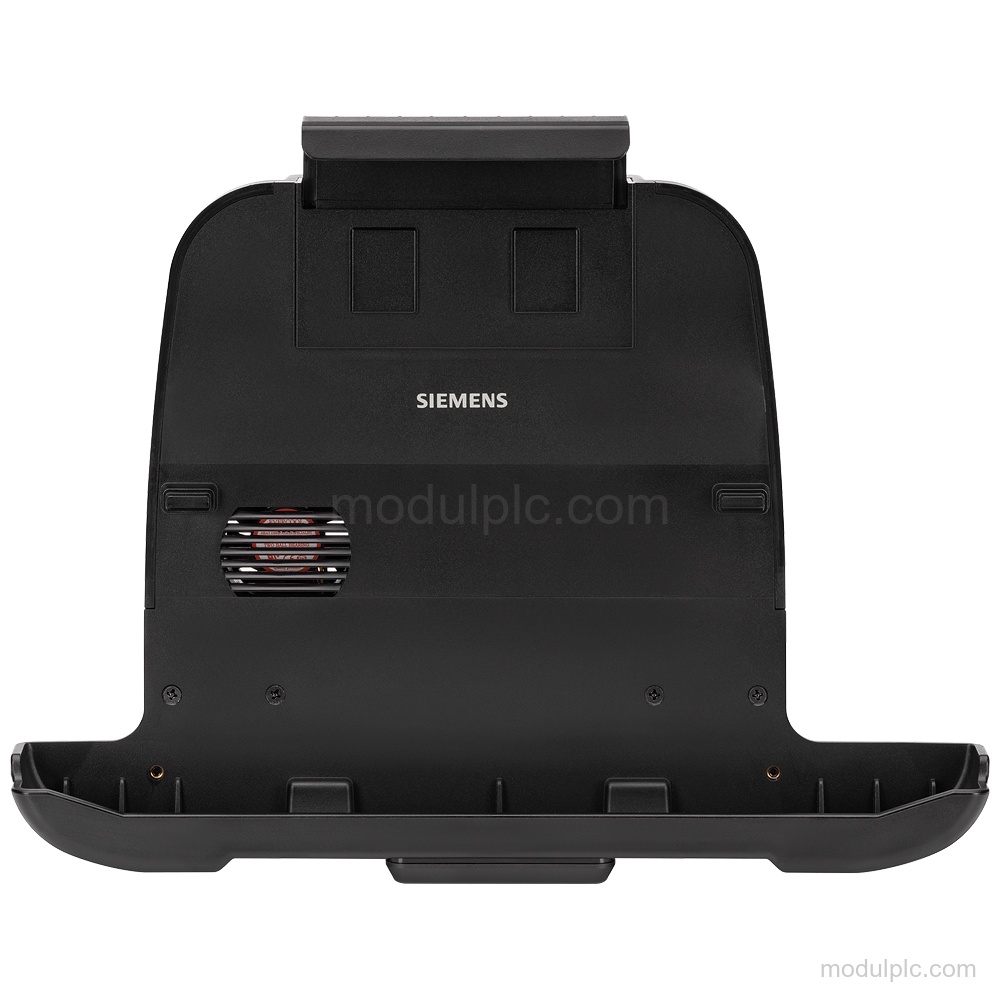

- Vehicle docking accessory: Designed for SIMATIC IPC MD-34A Entry, Entry Plus and Outdoor configurations.
- Network interface: 1x LAN with 10/100 Mbps capability.

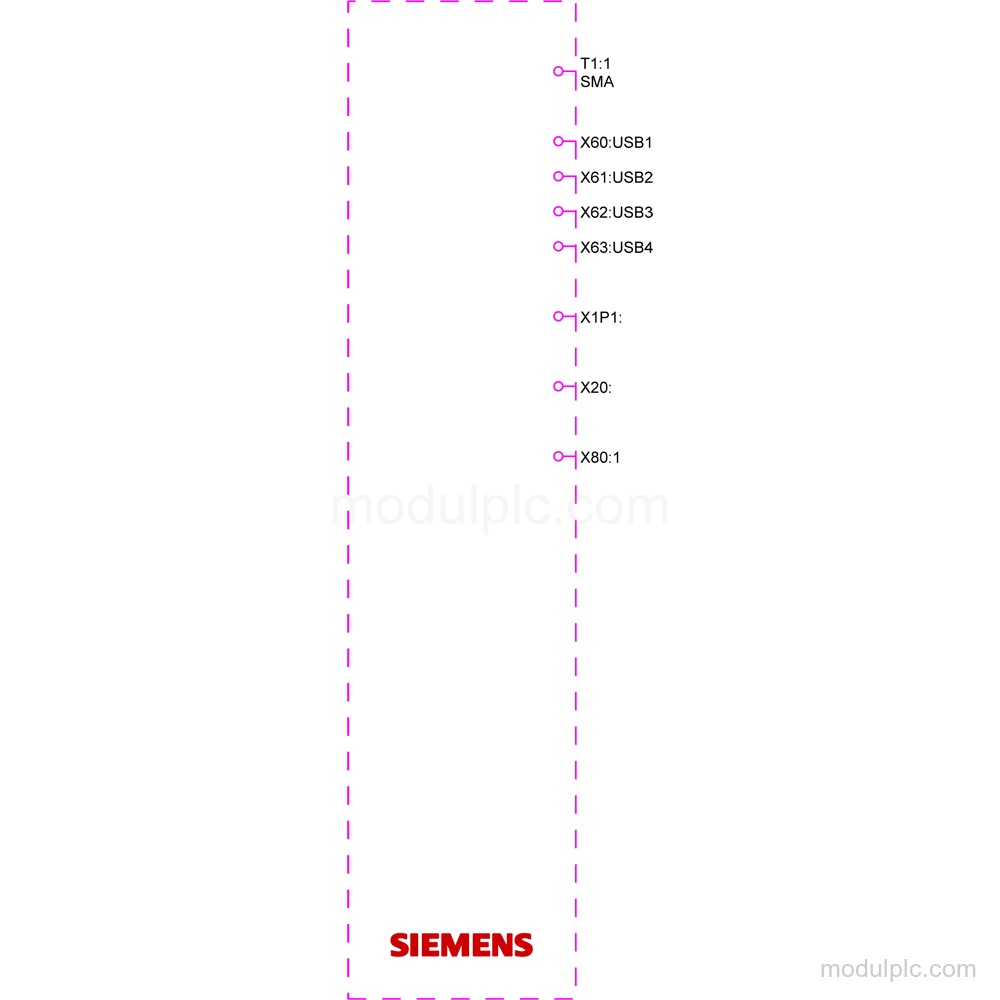

- USB interfaces: 4x USB 2.0 Type A interfaces: 2 in the rear I/O and 2 in the side I/O.
- Serial interface: 1x RS-232 interface.
- DC supply range: Permissible DC supply range: 9 V to 36 V; rated value: 19 V.
- Weight: Net weight: 0.670 kg.
Frequently Asked Questions
1. Which interfaces does 6AV7676-1AC10-0AA0 provide?
It has 1x LAN 10/100 Mbps, 4x USB 2.0 Type A, 1x RS-232 and 1x VGA. The analog video signal (VGA) is No.
2. What DC supply does the vehicle dock use?
The rated DC supply value is 19 V, with a permissible range of 9 V to 36 V.
3. Which USB connections are included?
It has 4x USB 2.0 Type A connections: 2 in the rear I/O and 2 in the side I/O.
4. What should be checked before requesting a quote?
Select the required power supply cord. The High-End and Automation versions cannot be adapted to the vehicle docking station because of the RFID module's mechanical design.
