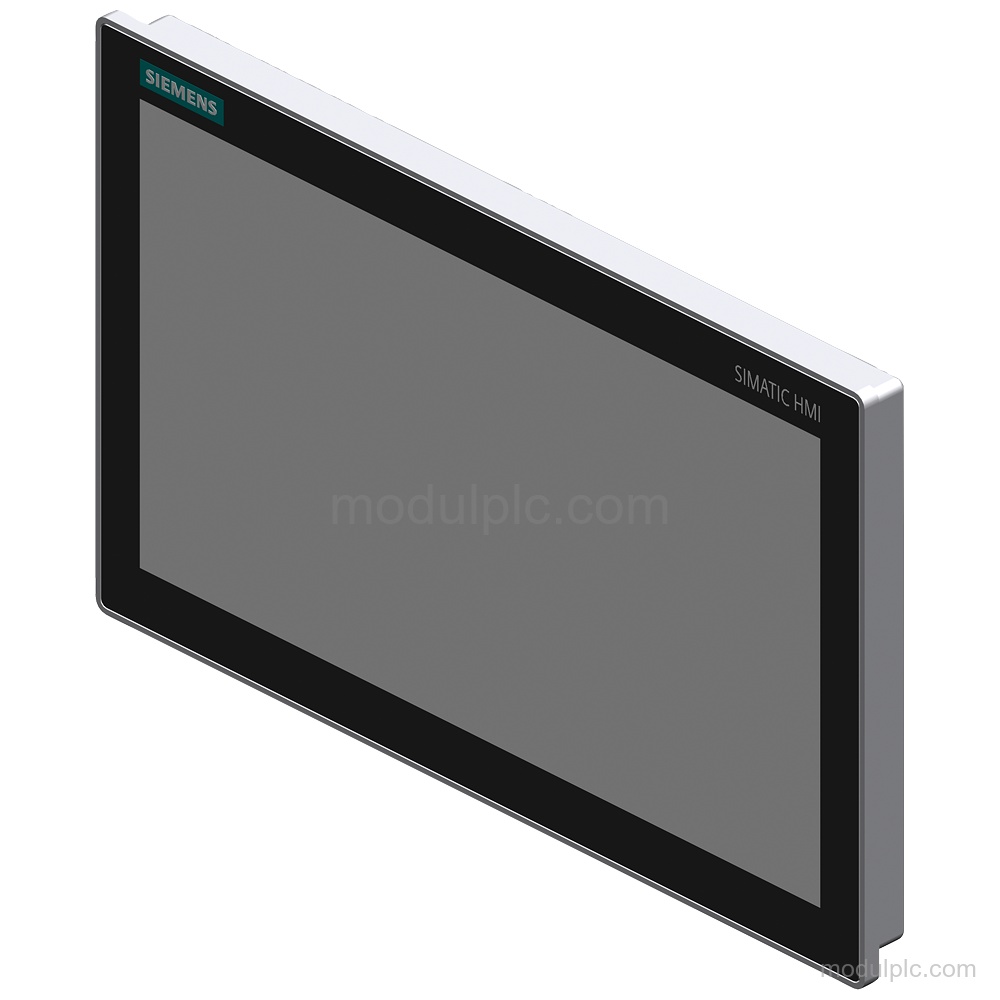

Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Display type | TFT widescreen display, LED backlighting |
| Screen diagonal | 18.5 in; 19" |
| Image resolution | 1 920 x 1 080 pixels |
| Touch technology | Projective-capacitive multi-touch screen |

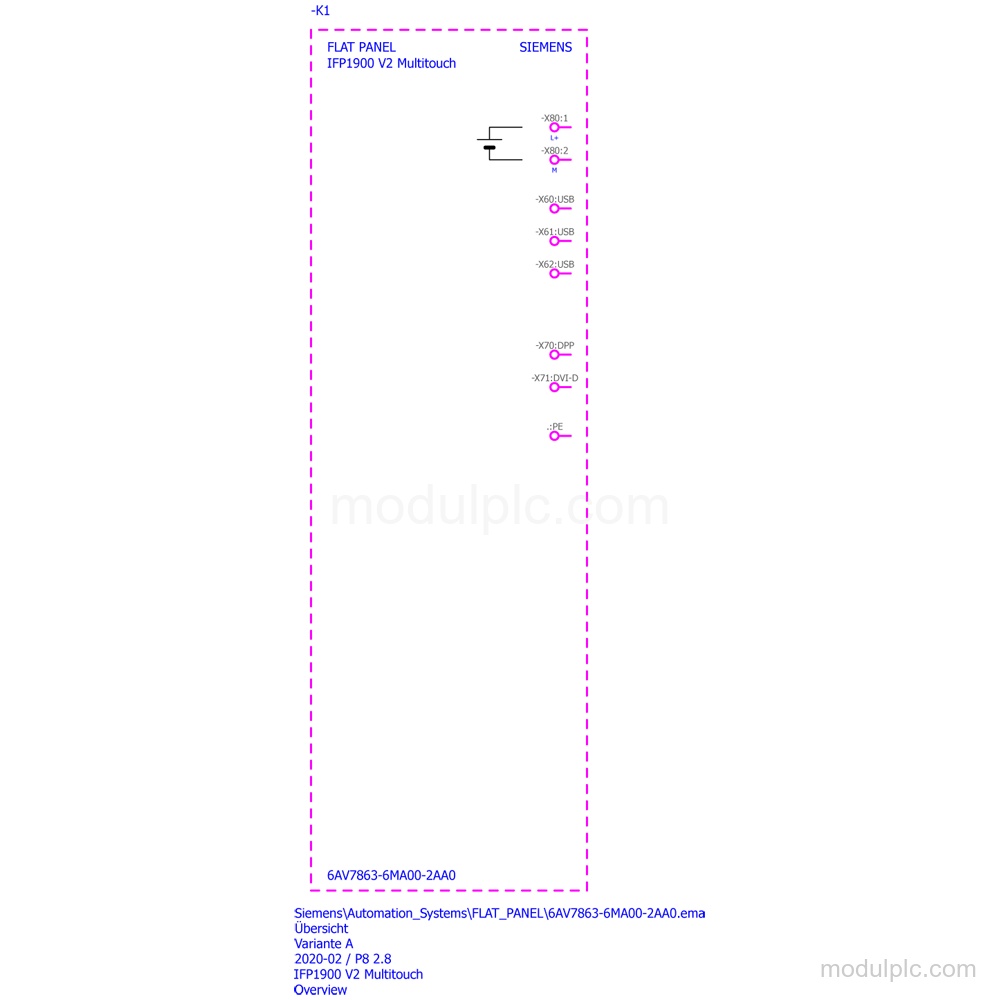

| Interfaces | DisplayPort V1.2; DVI-D; 2 USB 2.0 type A |
| Rated supply | 24 V DC; PELV / SELV floating |
| Supply range | 19.2 V to 28.8 V |

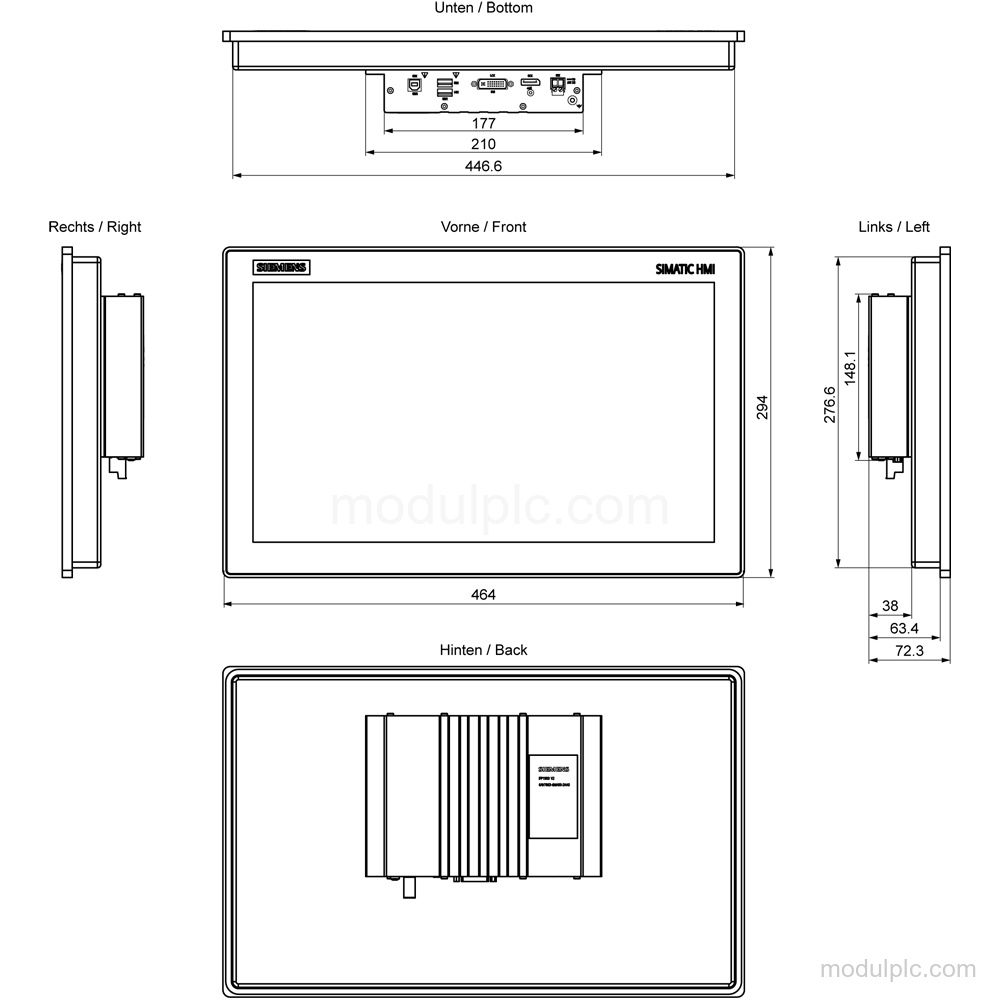

| Installation | Built-in unit; front mounting; VESA 100 x 100 integrated |
| Protection | IP65 at the front; IP20 at the rear |
| Power loss, typ. | 29 W |
| Included cable | DP/USB cable 1.8 m |
Applications
- Visual display: Provides a 1 920 x 1 080 pixel display with projective-capacitive multi-touch operation.
- Touch operation: Supports multi-touch screen operation and integrated mouse cursor control; external control is also possible via USB.
Key Features
- Display and touch: TFT widescreen display with LED backlighting, 18.5 in; 19" screen diagonal, and projective-capacitive multi-touch screen.
- Image resolution: Image resolution: 1 920 x 1 080 pixels; viewing angle: 178° x 178°.
- Interfaces: DisplayPort V1.2, DVI-D, and 2 USB 2.0 type A interfaces; USB is also provided for keyboard/mouse connection and touch.
- Supply: Rated supply: 24 V DC, PELV / SELV floating; permissible range: 19.2 V to 28.8 V.
- Installation: Built-in unit with front mounting and integrated VESA 100 x 100 mounting; portrait and landscape mounting are possible.
- Protection: Protection rating: IP65 at the front and IP20 at the rear; the front has NEMA Type 4, Type 4x, and Type 12.
Frequently Asked Questions
1. What display resolution does the Siemens 6AV7863-6MA00-2AA0 have?
It has an image resolution of 1 920 x 1 080 pixels.
2. Which video interfaces are available?
It has DisplayPort V1.2 and DVI-D video interfaces.
3. What supply voltage does this display require?
The rated supply is 24 V DC, PELV / SELV floating, with a permissible range of 19.2 V to 28.8 V.
