Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Display | 10.1" TFT LCD with Multi-Touch |
| Display resolution | 1280 × 800 pixel |
| Processor | Intel Core i5-1135G7 2.4 GHz |
| Memory | 16 Gbyte DDR4 SDRAM |
| Storage | 256 Gbyte SSD |
| Industrial Ethernet interfaces | 1 |
| USB interfaces | 2 |
| Rated supply voltage | 19 V DC |
| Battery capacity | 3 500 mA·h |
| Battery runtime, min. | 6 h |
| Protection | IP65 |
Key Features
- Display and resolution: 10.1" TFT LCD with Multi-Touch, LED backlighting, 1280 × 800 pixel resolution and 350 cd/m2 luminance.
- Computing and storage: Intel Core i5-1135G7 2.4 GHz processor, Intel HM570 PCH chipset, 16 Gbyte DDR4 SDRAM and 256 Gbyte SSD.
- Network and wireless interfaces: 1 industrial Ethernet interface with 100 Mbps and 1000 Mbps support, WLAN 802.11 a/b/g/n/ac/ax and Bluetooth V5.3.
- USB and video connections: 2 USB interfaces: 1 USB 3.0 Type A and 1 USB 3.0 Type C; 1 Micro HDMI interface.
- Power and battery: External wide-range 3-pole power supply with a rated value of 19 V DC; replaceable 3 500 mA·h Lithium-ion battery with minimum 6 h runtime.
- Protection and status display: IP65 degree of protection and 2x LED Indicator for Power, Battery.
Frequently Asked Questions
1. What display does the 6AV7880-4DB01-1AA1 have?
It has a 10.1" TFT LCD with Multi-Touch, LED backlighting, 1280 × 800 pixel resolution and 350 cd/m2 luminance.
2. How much memory and storage does this model provide?
It has 16 Gbyte DDR4 SDRAM and a 256 Gbyte SSD.

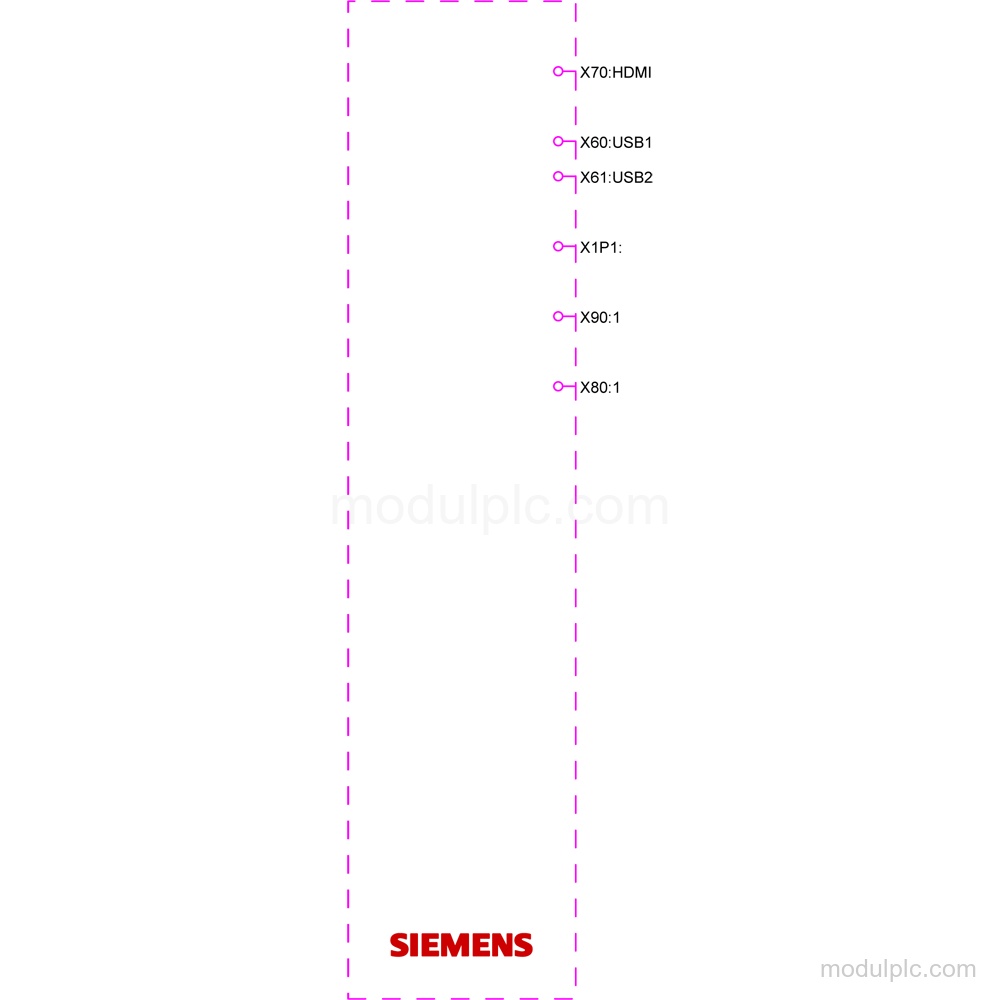

3. Which interfaces are available?
The model has 1 industrial Ethernet interface, 2 USB interfaces, 1 Micro HDMI interface, WLAN 802.11 a/b/g/n/ac/ax and Bluetooth V5.3.
4. What battery configuration is supplied?
It has a replaceable 3 500 mA·h Lithium-ion battery with a minimum runtime of 6 h.
5. Is the power supply cord included?
The power supply cord must be selected separately: EU, GB, Swiss, USA, Italy, China or India versions are available by order code.
