Product Overview
Technical Summary
| Parameter | Value |
|---|---|

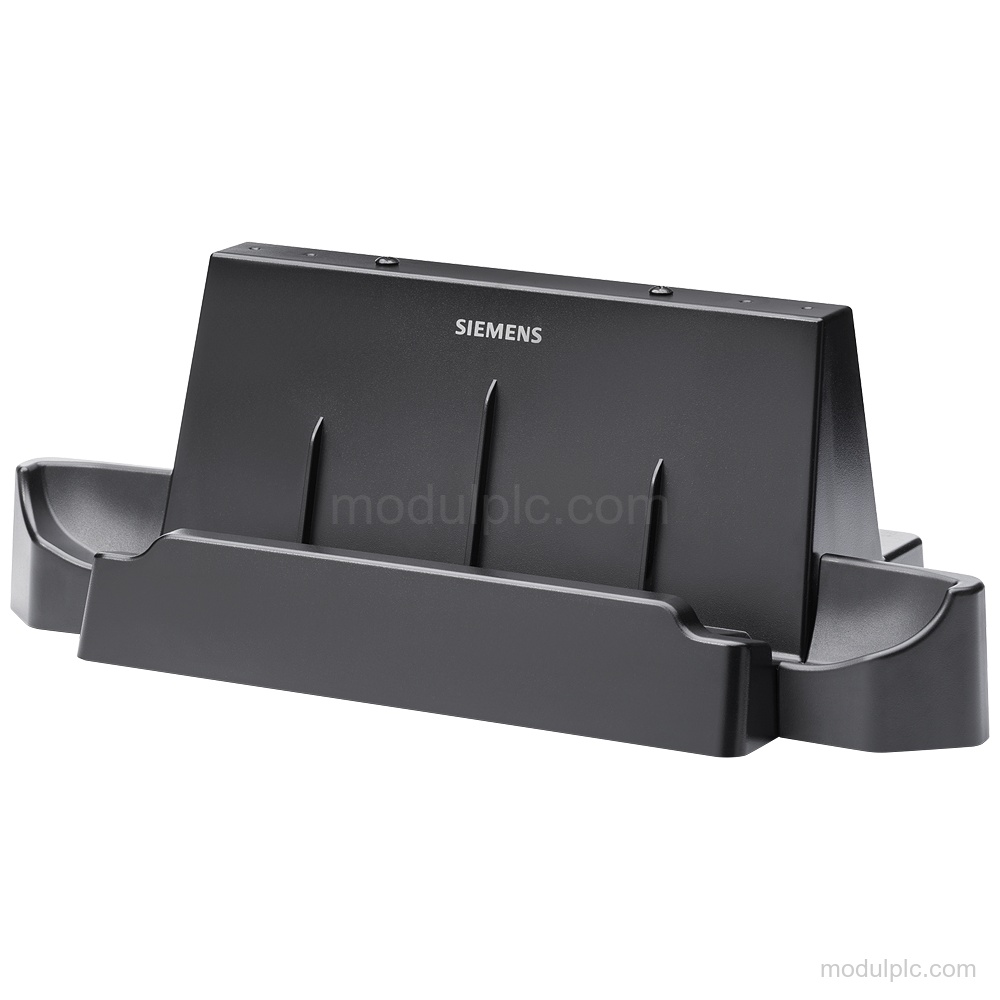

| Product type | SIMATIC IPC MD-34A Desk Dock accessory |
| USB interfaces | 4 |
| RS-232 interfaces | 1 |
| USB interface type | Type A |
| USB interface detail | 4; 2* USB 2.0 in rear I/O, 2* USB 2.0 in side I/O |
| LAN interface | 1* 10/100 Mbps |
| Video interface | Analog VGA video signal |
| Rated supply voltage | 19 V DC |
| Permissible supply voltage range | 100 V to 240 V AC |
| Product lifecycle | Active Product |
Key Features
- MD-34A Desk Dock accessory: Accessory for SIMATIC IPC MD-34A in all configurations.
- USB and RS-232 interfaces: Has 4 USB interfaces, including 4 Type A ports and 1 RS-232 interface.
- LAN and VGA interfaces: Provides 1 10/100 Mbps LAN interface and an analog VGA video signal.
- Supply voltage: Rated supply voltage: 19 V DC; permissible supply voltage range: 100 V to 240 V AC.
- Power supply cord: Use the MD-34A power supply cord for the Desk Dock.
Frequently Asked Questions
1. What is the Siemens 6AV7676-1AC00-0AA0?
It is a SIMATIC IPC MD-34A Desk Dock accessory for all MD-34A configurations.
2. Which interfaces does the Desk Dock provide?

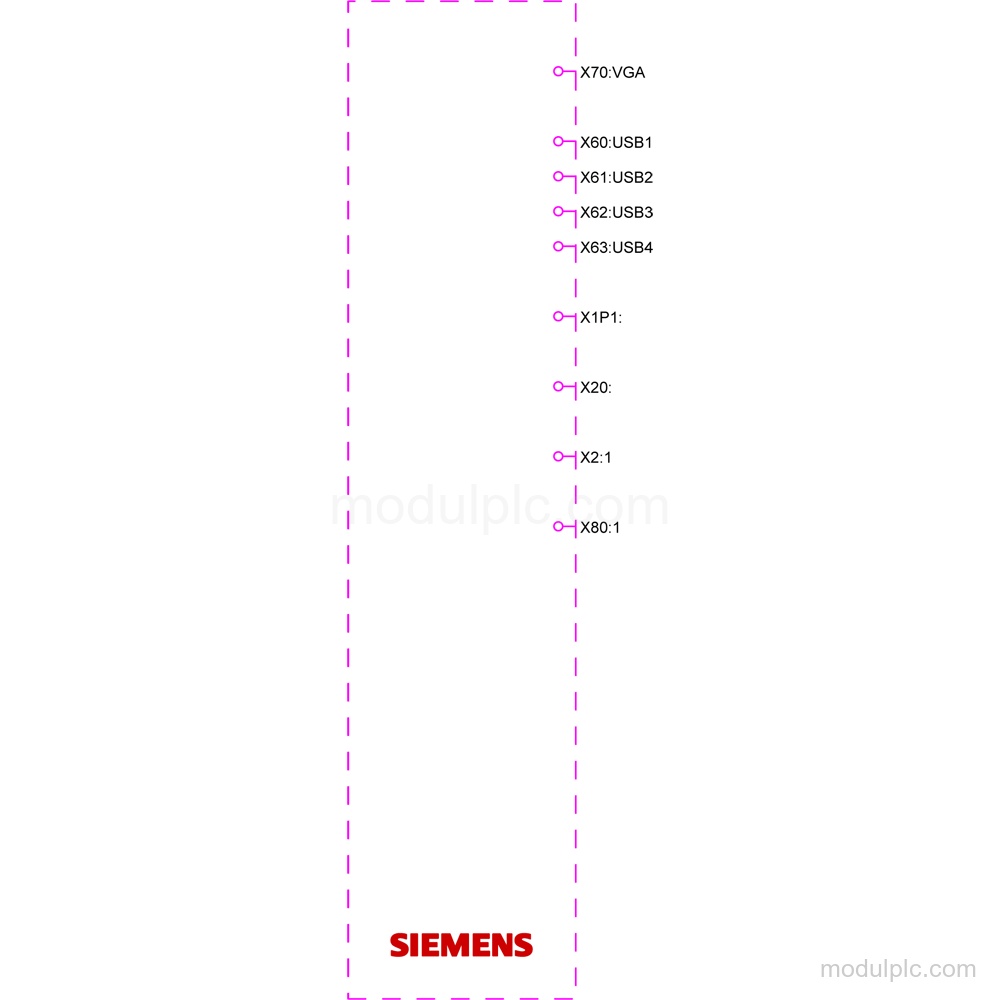

It has 4 USB interfaces, 1 RS-232 interface, 1 10/100 Mbps LAN interface and an analog VGA video signal.
3. How many USB 2.0 Type A ports are available?
There are 4 Type A ports: 2* USB 2.0 in the rear I/O and 2* USB 2.0 in the side I/O.
4. What supply details should be verified before inquiry?
The rated supply voltage is 19 V DC, the permissible supply voltage range is 100 V to 240 V AC, and the MD-34A power supply cord is required for the Desk Dock.
