Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Product type | Illuminated pushbutton for Extension Units |
| Actuating principle | Momentary contact |
| Contact configuration | 1 NC contact, 1 NO contact |
| Illumination | Integrated white LED with 6 supplied light attachments |
| Rated supply voltage | 24 V DC |
| Rated current consumption | 100 mA |
| Mounting type | Threaded ring |
| Front protection | IP65 on front to EN60529 and NEMA4 |
Key Features

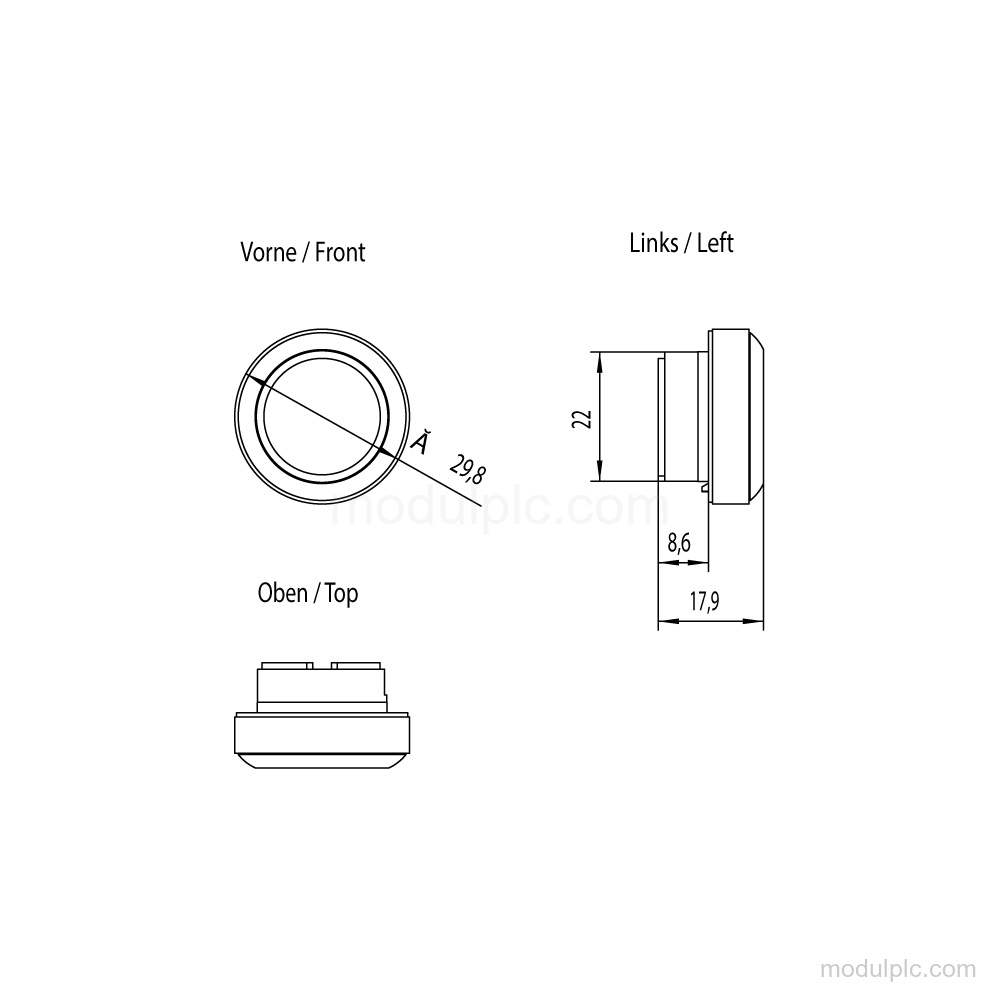

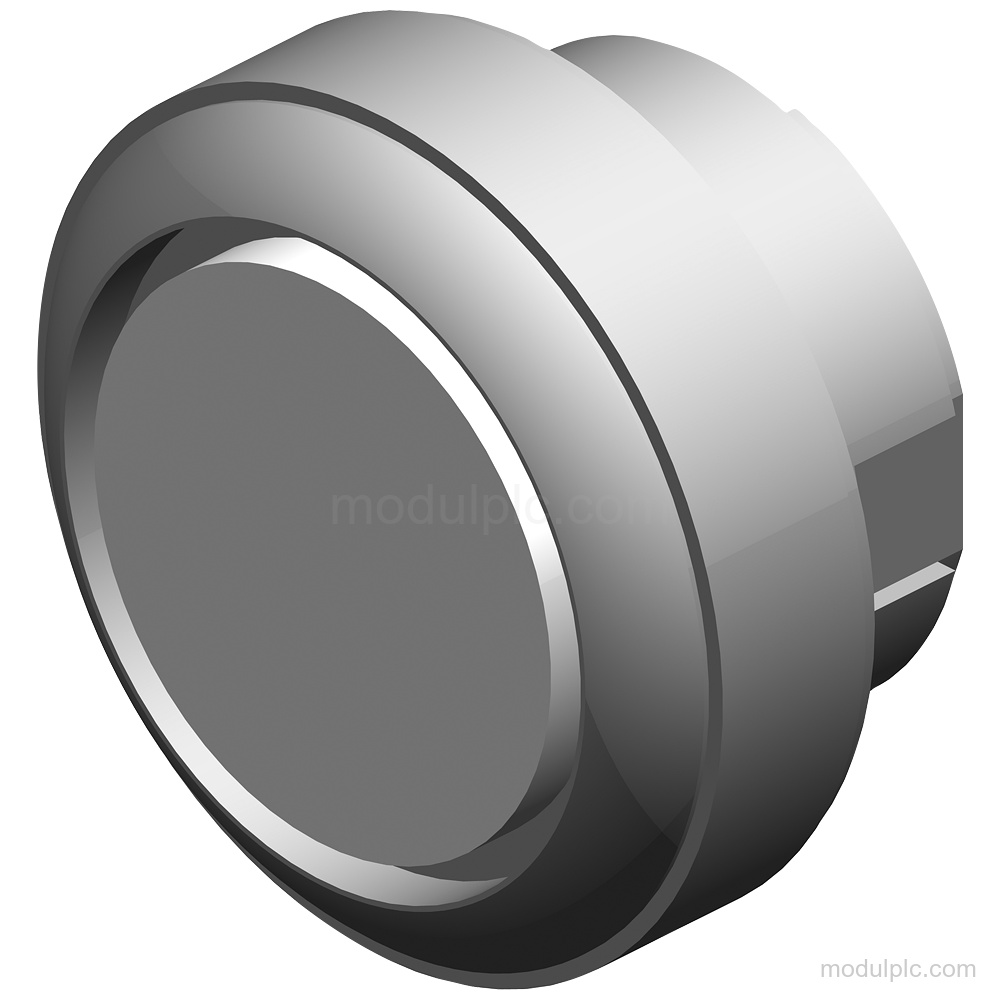

- Illuminated pushbutton: Round plastic pushbutton with flat button and momentary contact operation for Extension Units.
- Contacts: 1 NC contact and 1 NO contact.
- Integrated illumination: White translucent light source with 6 supplied light attachments: colorless, red, yellow, green, blue, and black.
- Electrical data: Rated supply voltage: 24 V DC. Rated current consumption: 100 mA.
- Installation and protection: Threaded-ring mounting with front plate attachment in an Extension Unit for 16:9 PRO devices; IP65 on the front to EN60529 and NEMA4.
- Scope of supply: Includes 1 illuminated pushbutton, 1 printed circuit board with contact module, 6 light attachments, and mounting accessories; without inscription.
Frequently Asked Questions
1. What contact configuration does 6AV7674-1MG00-0AA0 have?
It has 1 NC contact and 1 NO contact.
2. What supply does this illuminated pushbutton require?
The rated supply voltage is 24 V DC, and rated current consumption is 100 mA.
3. What is included with the configuration?
It includes 1 illuminated pushbutton, 1 printed circuit board with contact module, 6 light attachments, and mounting accessories. It is without inscription.
