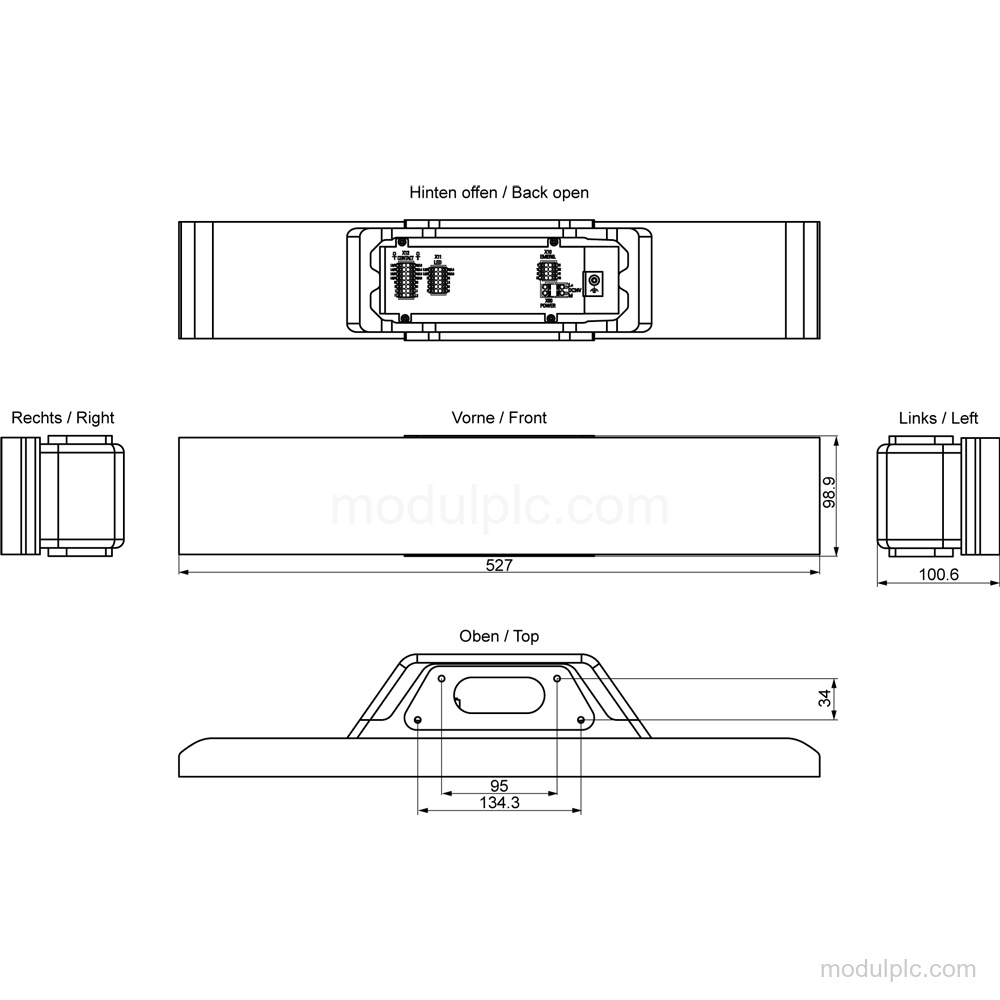

Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Product type | Extension Unit 22" hardwired |
| Mounting positions | 12 |
| Operator controls | Max. 8 operator controls + 1 emergency stop |
| LED module connection | 12-pin connector |
| Control-element contact connection | 16-pin connector |
| Emergency-stop contact connection | 8-pin connector |
| Rated supply voltage | 24 V DC |
| Permissible DC supply range | 19.2 V to 28.8 V DC |
| Mounting type | Screwed joint |
| Protection | IP65 all-round |
| Typical active power input | 0.1 W |
Applications
- Operator-control installation: Provides flexible installation of operator controls and an emergency stop on compatible 16:9 HMI/IPC device lower parts.
Key Features
- 22" hardwired extension unit: Extension unit 22" hardwired for mounting on fully IP65-enclosed 16:9 HMI/IPC devices.
- Operator-control positions: 12 mounting positions; max. 8 operator controls + 1 emergency stop can be mounted (refer to manual).
- Connector configuration: 12-pin connector for the LED module, 16-pin connector for control-element contacts, and 8-pin connector for safety-related emergency-stop contacts.
- DC supply: Rated supply voltage: 24 V DC; permissible range: 19.2 V to 28.8 V DC.
- Mounting: For mounting on a 16:9 HMI / IPC PRO device lower part; mounting type is screwed joint. Rack mounting and front mounting: No.
- Protection and power data: All-round protection: IP65. Current consumption: 10 mA without load; typical active power input: 0.1 W; emitted active power: 5 W max. with lamp load.
Frequently Asked Questions
1. What is Siemens 6AV7674-1LA61-0AA0?
It is a 22" hardwired extension unit for mounting on fully IP65-enclosed 16:9 HMI/IPC devices.
2. How many operator controls can be mounted?
It has 12 mounting positions and supports max. 8 operator controls + 1 emergency stop; refer to the manual.
3. Which connectors are provided?
It has a 12-pin connector for the LED module, a 16-pin connector for control-element contacts, and an 8-pin connector for safety-related emergency-stop contacts.
4. What supply voltage does it use?
The rated supply voltage is 24 V DC, with a permissible range of 19.2 V to 28.8 V DC.
5. How is the extension unit mounted?
It is mounted with a screwed joint on the lower part of a 16:9 HMI / IPC PRO device; it is without rack mounting and front mounting.
