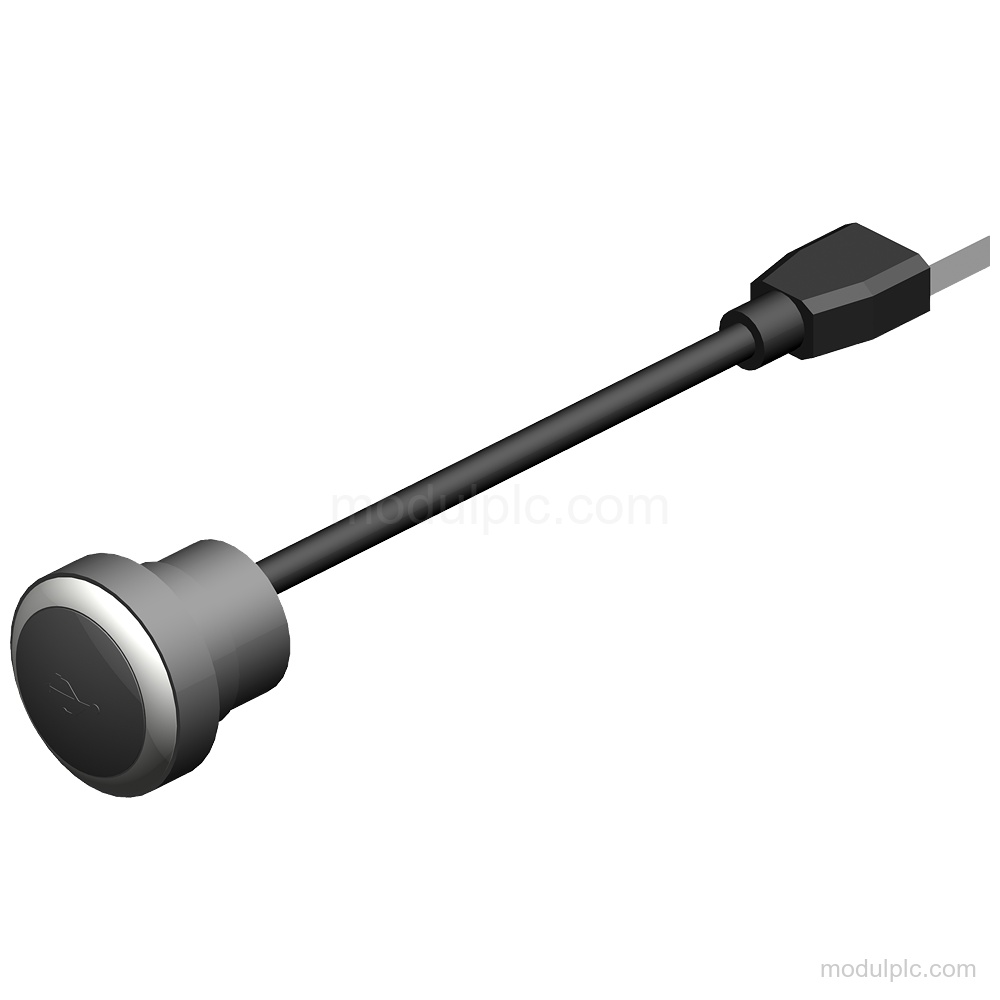

Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Product type | USB interface for Extension Unit |
| USB connection | USB 2.0 type A |
| Mounting type | Threaded ring |
| Protection, cover closed | IP65 fully enclosed |
| Protection, cover open | IP20 at the front |
| Product lifecycle | Active Product |
Applications
- Extension Unit front mounting: Provides a USB interface with front plate attachment in an Extension Unit for 16:9 PRO devices.
Key Features
- USB 2.0 type A connection: USB 2.0 type A connection is provided for the Extension Unit interface.
- Cable and supplied protective cap: The interface has a 0.7 m cable and includes 1 protective cap; the collected scope of supply also specifies 1 USB socket with a 630 mm connection cable.

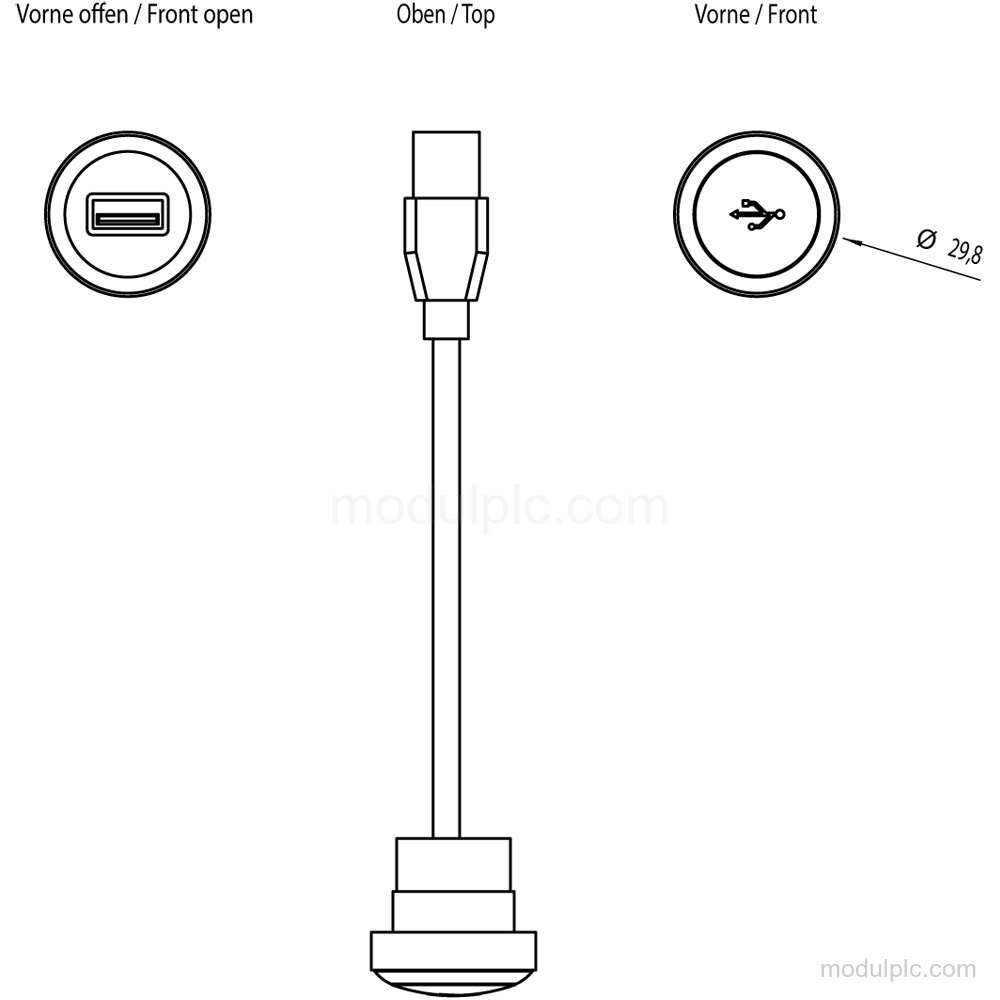

- Front mounting: Front plate attachment in an Extension Unit for 16:9 PRO devices, using a threaded ring.
- Protection rating: IP65 fully enclosed when the protective cover is closed; IP20 at the front when the protective cover is open.
- Industrial-area emission class: Limit class A for use in industrial areas according to EN 55 011.
- Active Product: Product lifecycle: Active Product.
Frequently Asked Questions
1. What type of connection does Siemens 6AV7674-1MF00-0AA0 provide?
It provides a USB 2.0 type A connection.
2. How is the USB interface mounted?
It uses a threaded ring for front plate attachment in an Extension Unit for 16:9 PRO devices.
3. What protection does the interface provide?
It is IP65 fully enclosed when the protective cover is closed and IP20 at the front when the protective cover is open.
4. What is included with the interface?
It includes 1 USB socket with a 630 mm connection cable and 1 protective cap.
