Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Product type | Safety keyswitch for Extension Unit |
| Switch positions | 2 switch positions (pos. 0 removal position) |
| Contact configuration | 2 NO contacts |
| Rated supply voltage | 24 V DC |
| Current consumption (rated value) | 100 mA |
| Mounting type | Threaded ring |
| Front protection | IP65 (on front) to EN60529 and NEMA4 |
Applications
- Safety operator control: Provides safety operator control through a latching keyswitch with 2 switch positions and a removal position at position 0.
- Extension Unit front-panel installation: Supports front plate attachment in an Extension Unit for 16:9 PRO devices.
Key Features
- Safety keyswitch function: Safety keyswitch for Extension Units and safety operator control, with a latching operating principle.
- Switch positions and keys: 2 switch positions; position 0 is the removal position. The scope of supply includes 2 keys.
- Contact configuration: 2 NO contacts and no inscription.
- Electrical data: Rated value: 24 V DC. Current consumption (rated value): 100 mA.
- Front mounting and protection: Threaded-ring mounting and front plate attachment in an Extension Unit for 16:9 PRO devices. IP65 on the front to EN60529 and NEMA4.

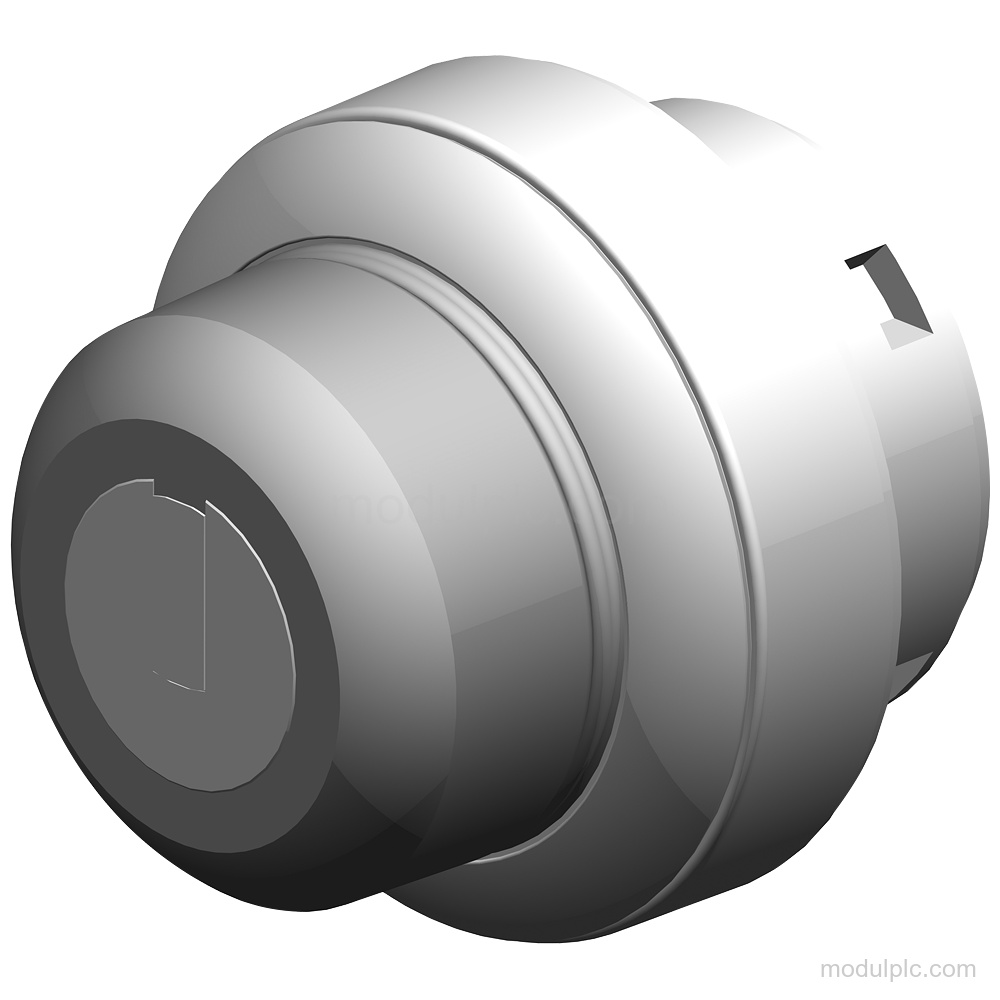

- Construction: Round plastic actuating element; it cannot be illuminated. The scope of supply includes 1 keyswitch, 1 printed circuit board, 2 keys, and mounting accessories.
Frequently Asked Questions
1. What is the function of Siemens 6AV7674-1ME50-0AA0?
It is a latching safety keyswitch for Extension Units and safety operator control.
2. How many switch positions and contacts does it have?
It has 2 switch positions, with position 0 serving as the removal position, and 2 NO contacts.
3. What supply voltage and current consumption does it have?
The rated value is 24 V DC, and current consumption (rated value) is 100 mA.
4. How is the keyswitch mounted and protected?
It uses threaded-ring mounting and front plate attachment in an Extension Unit for 16:9 PRO devices. The front has IP65 protection to EN60529 and NEMA4.
5. What is included in the configuration?
The scope of supply includes 1 keyswitch, 1 printed circuit board, 2 keys, and mounting accessories.
