Product Overview
Technical Summary
| Parameter | Value |
|---|---|

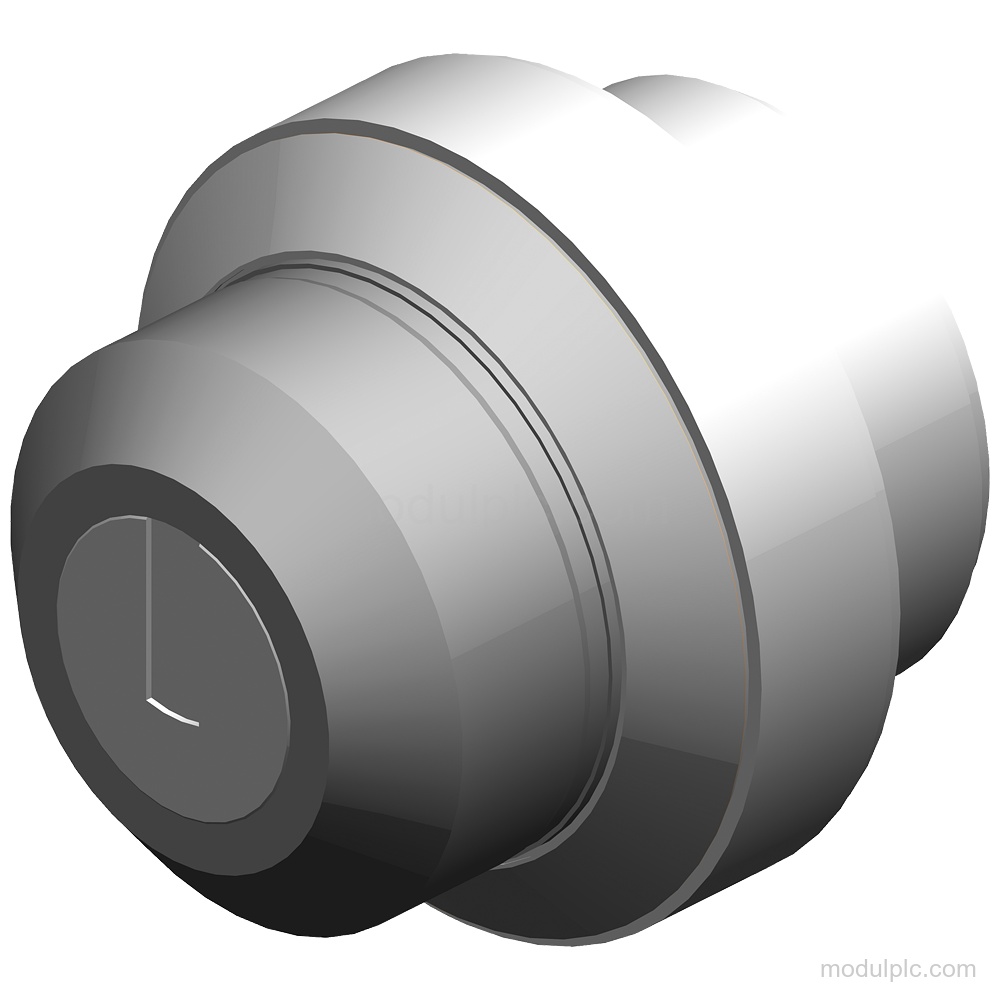

| Product type | Key-operated switch for Extension Unit |
| Actuating element positions | 3 switch positions (withdrawal positions) |
| Operating principle | Latching |
| Contact configuration | 2 NO contacts |
| Rated supply voltage | 24 V DC |
| Current consumption (rated value) | 100 mA |

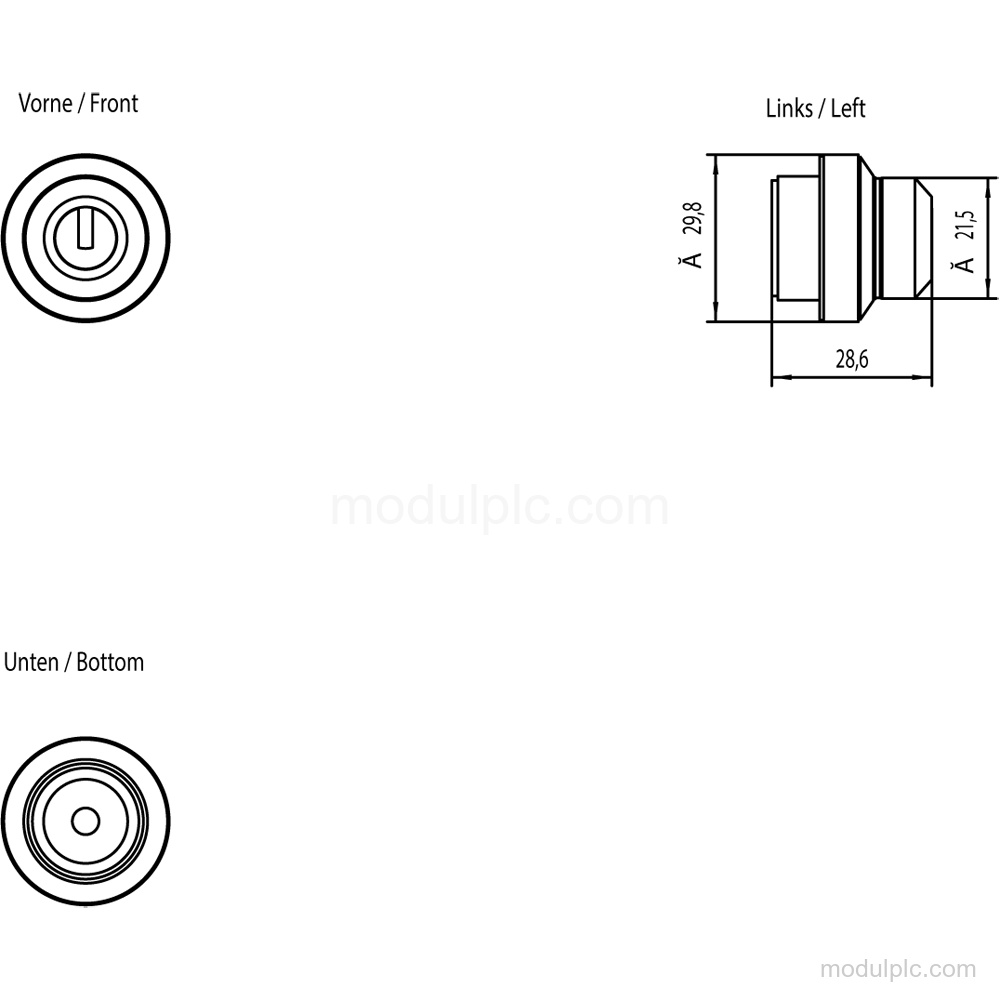

| Mounting type | Threaded ring |
| Front protection | IP65 (on front) to EN60529 and NEMA4 |
Key Features
- Key-operated switch for Extension Units: Product type: Key-operated switch for Extension Unit; supplied with 1 keyswitch, 1 printed circuit board, 2 keys, and mounting accessories.
- Switch positions and operation: The actuating element has 3 switch positions (withdrawal positions) and a latching operating principle.
- Contact configuration: Contact configuration: 2 NO contacts.
- Rated supply and current: Rated supply voltage: 24 V DC. Current consumption (rated value): 100 mA.
- Front mounting and protection: Mounting type: threaded ring. Front mounting is supported on an Extension Unit for 16:9 PRO devices. Protection: IP65 on the front to EN60529 and NEMA4.
- Round, non-illuminated design: The actuating element is round and cannot be illuminated. The switch is plastic and has no inscription.
Frequently Asked Questions
1. What is the function of Siemens 6AV7674-1ME00-0AA0?
It is a key-operated switch for Extension Units.
2. How many switch positions and contacts does it have?
It has 3 switch positions (withdrawal positions) and 2 NO contacts.
3. What supply voltage and current consumption are specified?
The rated supply voltage is 24 V DC, and current consumption (rated value) is 100 mA.
4. How is the switch mounted and protected?
It uses a threaded ring for mounting and supports front plate attachment in an Extension Unit for 16:9 PRO devices. Protection is IP65 on the front to EN60529 and NEMA4.
5. What is included in the supplied configuration?
The scope of supply includes 1 keyswitch, 1 printed circuit board, 2 keys, and mounting accessories.
