Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Product type | Selector switch for Extension Unit |
| Actuating element | Rotary handle, 3 switch positions, 1-0-2 |
| Operating principle | Latching |
| Contact configuration | 2 NO contacts |
| Rated DC supply | 24 V |
| Rated current consumption | 100 mA |
| Mounting | Threaded ring; front plate attachment in an Extension Unit for 16:9 PRO devices |
| Front protection | IP65 on front to EN60529 and NEMA4 |
Key Features

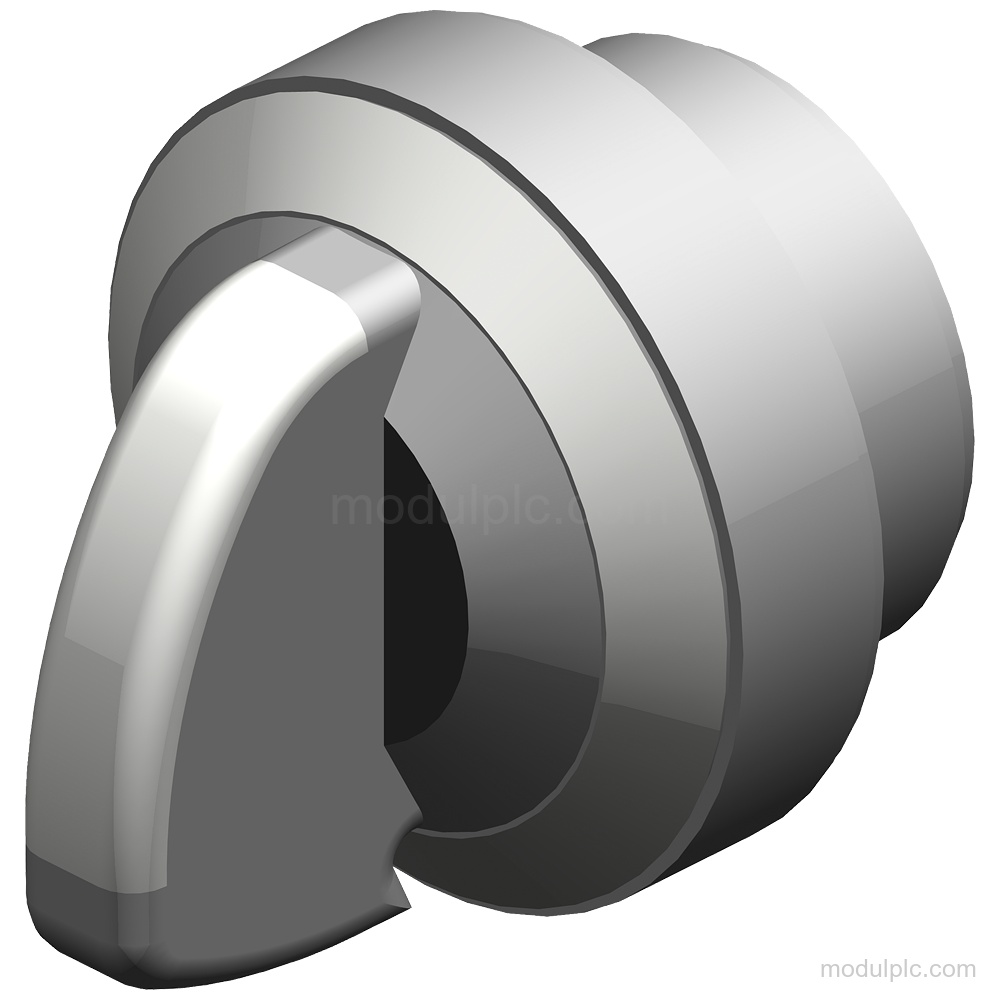

- Selector switch design: Round rotary handle with 3 switch positions, 1-0-2 arrangement, latching operation and an integrated translucent white SMT LED.
- Contact configuration: Has 2 NO contacts.
- Supply and current consumption: Rated DC supply: 24 V; rated current consumption: 100 mA.
- Front mounting: Threaded-ring mounting with front plate attachment in an Extension Unit for 16:9 PRO devices.
- Front protection: IP65 on the front to EN60529 and NEMA4.
- Scope of supply: Includes 1 selector switch, 1 printed circuit board with contact module and mounting accessories; supplied without inscription.
Frequently Asked Questions
1. What is the function of Siemens 6AV7674-1MD00-0AA0?
It is a selector switch for Extension Units with a rotary handle, 3 switch positions and latching operation.
2. How many contacts does this selector switch have?
It has 2 NO contacts.
3. What supply and current consumption does it have?
The rated DC supply is 24 V, and rated current consumption is 100 mA.
4. How is 6AV7674-1MD00-0AA0 mounted?
It uses threaded-ring mounting and front plate attachment in an Extension Unit for 16:9 PRO devices.
5. What is included in the configuration?
It includes 1 selector switch, 1 printed circuit board with contact module and mounting accessories. It is supplied without inscription.
