Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Product type | Indicator light for Extension Unit |

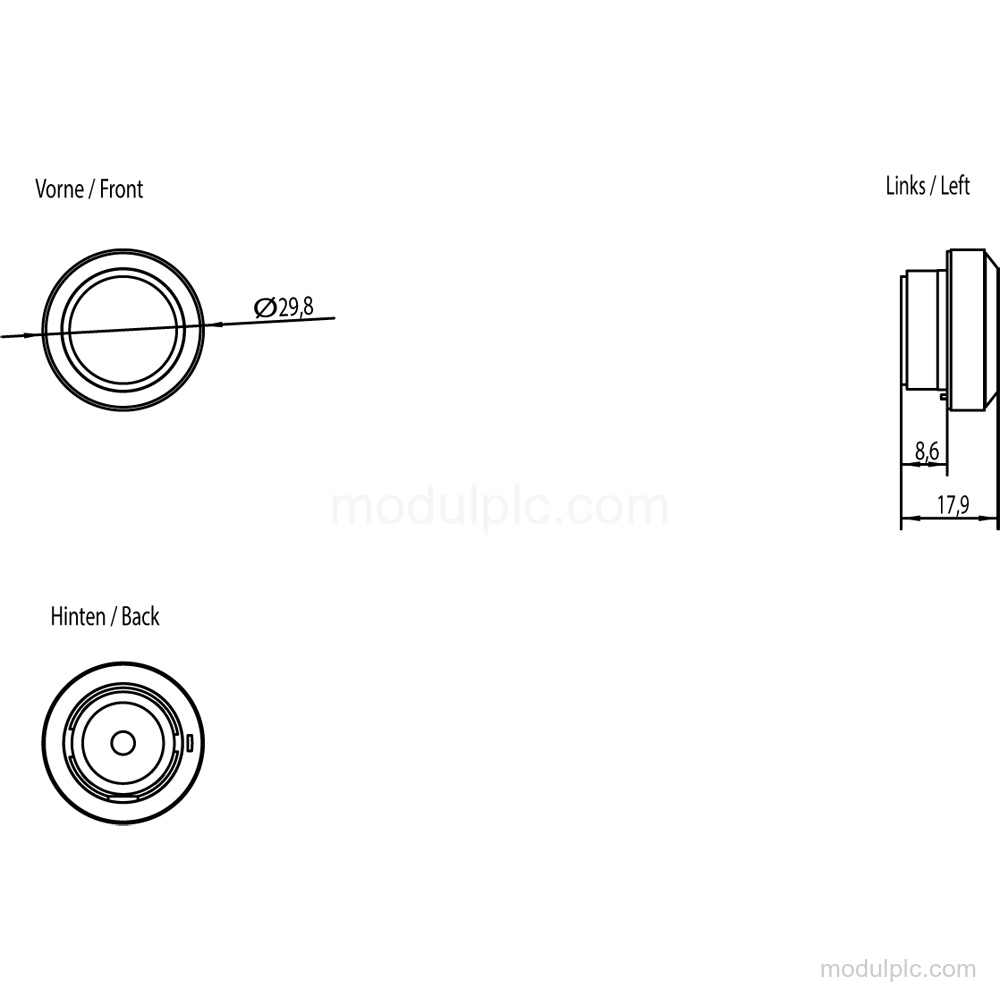

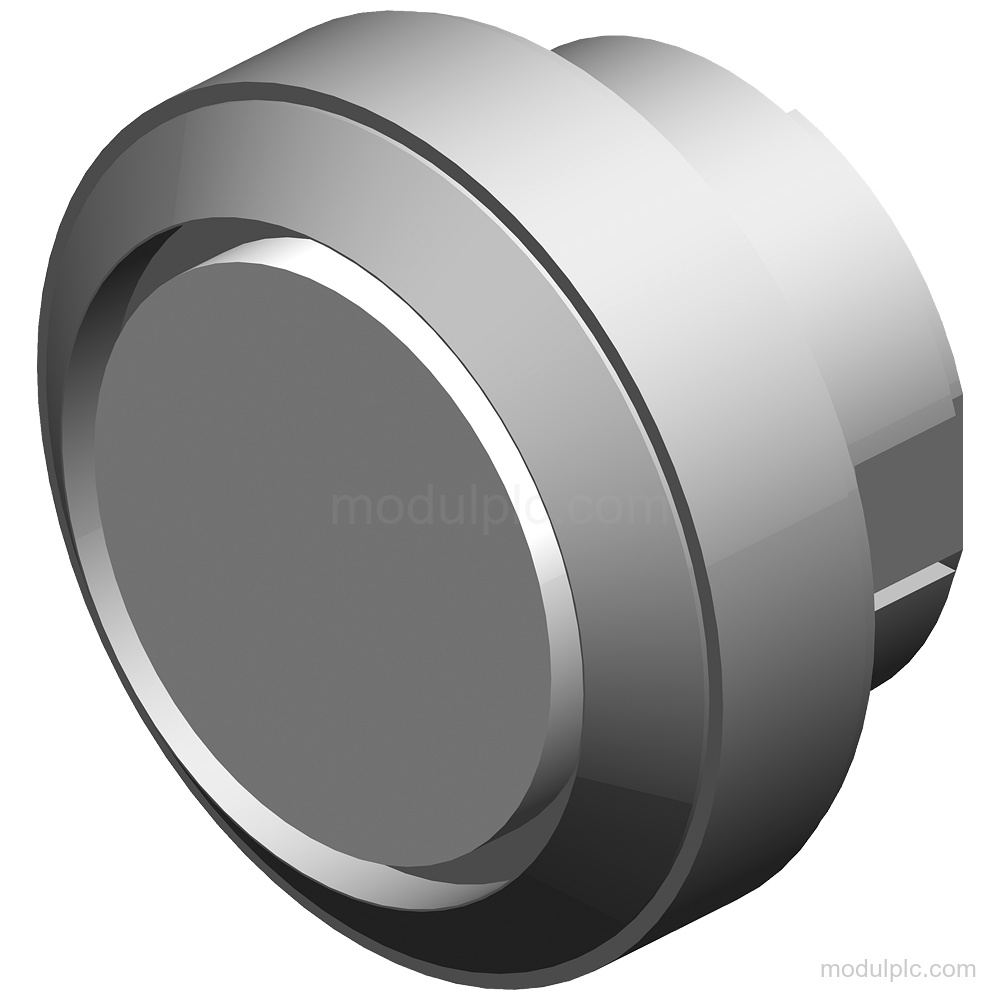

| Design | Round, 22 mm, plastic, with flat lens |
| Light source | Integrated white SMT LED |
| Light attachments | 6: colorless, red, yellow, green, blue, black |
| Rated supply voltage | 24 V DC |
| Rated current consumption | 100 mA |
| Mounting type | Threaded ring |
| Front mounting | Front plate attachment in an Extension Unit for 16:9 PRO devices |
| Front protection | IP65 (on front) to EN60529 and NEMA4 |
| Scope of supply | 1 indicator light, 1 printed circuit board, 6 light attachments, mounting accessories |
| Exclusion | Without inscription |
Key Features
- Extension Unit indicator light: Indicator light for Extension Units, with a round 22 mm plastic design and flat lens.
- Integrated white LED: Uses an SMT LED with a translucent white light source; colored disks create different light colors.
- Six light attachments: Includes colorless, red, yellow, green, blue, and black light attachments.
- 24 V DC supply: Rated supply voltage is 24 V DC, with a rated current consumption of 100 mA.
- Front mounting and protection: Uses a threaded ring for front plate attachment in an Extension Unit for 16:9 PRO devices; front protection is IP65 to EN60529 and NEMA4.
- Included configuration: Scope of supply includes 1 indicator light, 1 printed circuit board, 6 light attachments, and mounting accessories; it is without inscription.
Frequently Asked Questions
1. What is the function of Siemens 6AV7674-1MC00-0AA0?
It is an indicator light for Extension Units with an integrated white SMT LED.
2. What supply and current does this indicator light require?
The rated supply voltage is 24 V DC and the rated current consumption is 100 mA.
3. How is the indicator light mounted?
It uses a threaded ring for front plate attachment in an Extension Unit for 16:9 PRO devices.
4. What light attachments are included?
The scope includes 6 light attachments: colorless, red, yellow, green, blue, and black.
5. Does the configuration include an inscription?
It is without inscription.
