Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Product type | Illuminated pushbutton for Extension Unit |
| Actuating element | Pushbutton with flat button |
| Operating principle | Momentary contact |
| Contact configuration | 1 NO contact |
| Illumination | Integrated white LED |
| Rated voltage (DC) | 24 V |
| Rated current consumption | 100 mA |
| Mounting type | Threaded ring |
| Front mounting | Front plate attachment in an Extension Unit for 16:9 PRO devices |
| Front protection | IP65 (on front) to EN60529 and NEMA4 |
| Product lifecycle | Active Product |

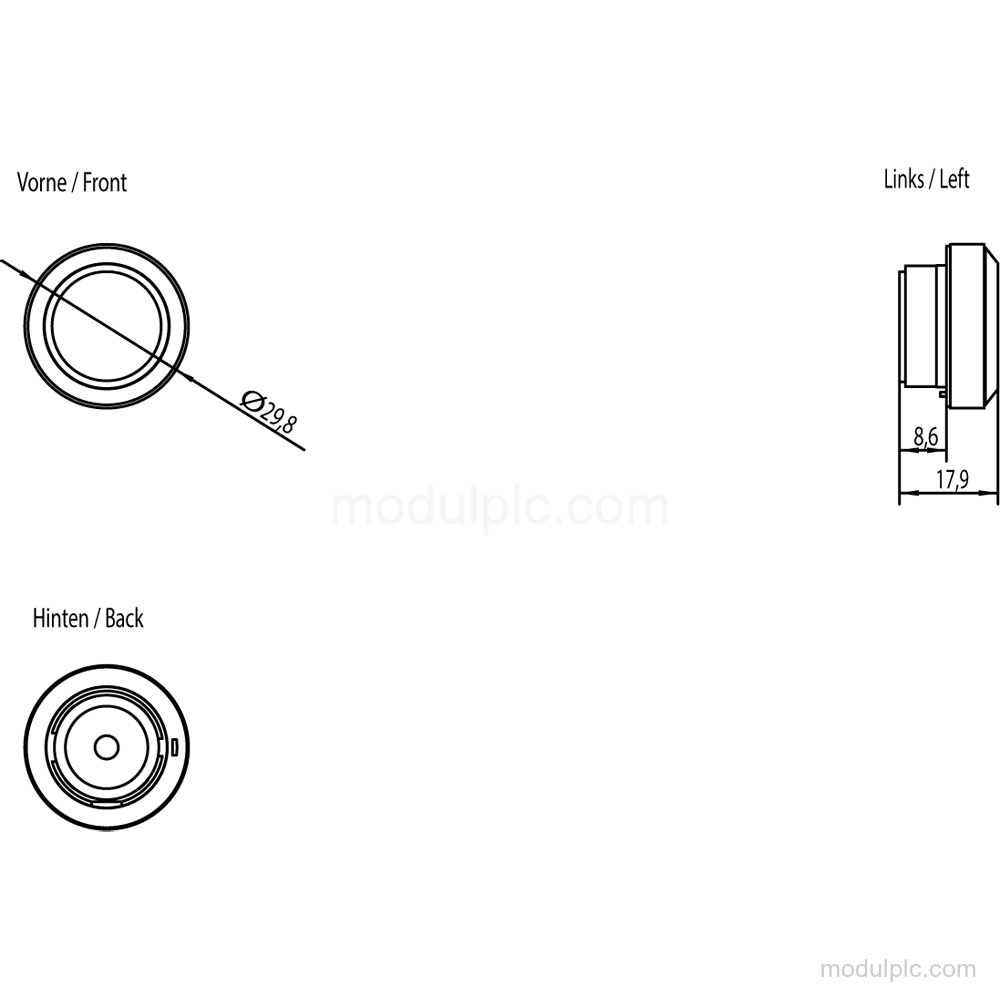

Key Features

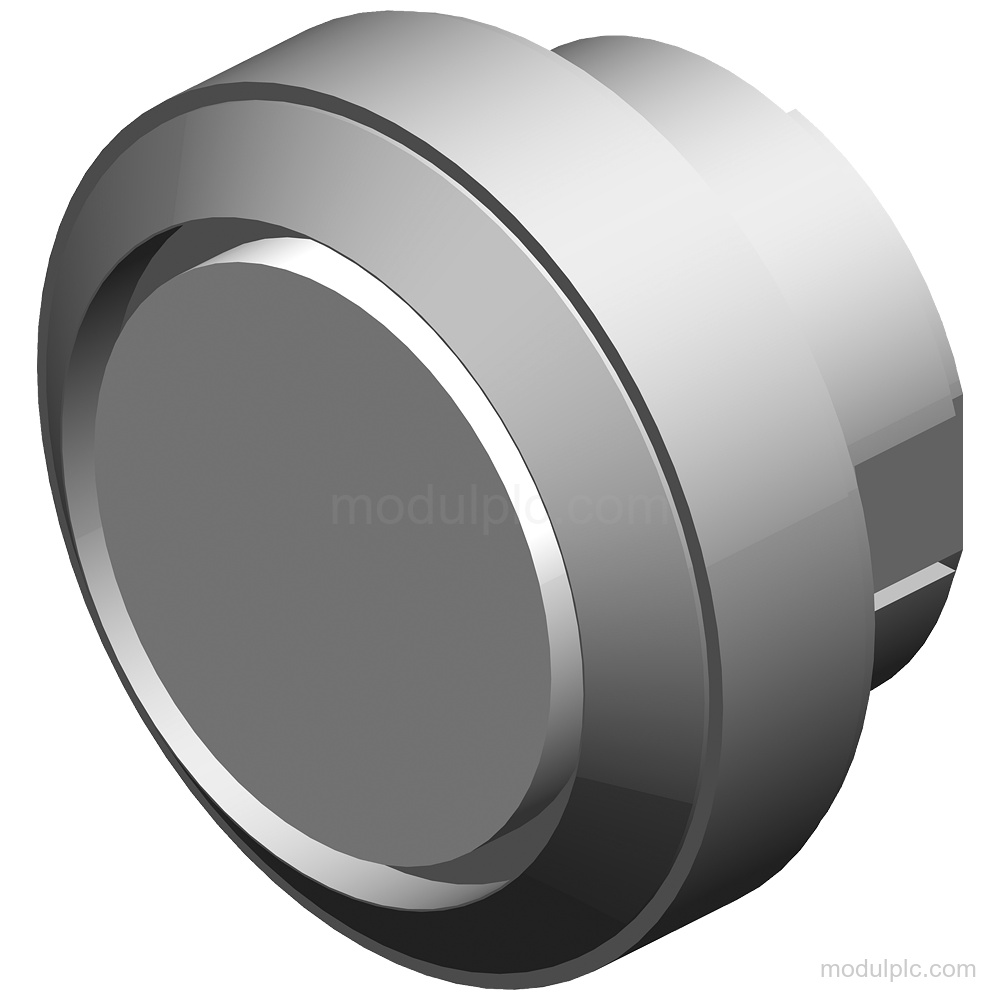

- Illuminated pushbutton: Round, plastic pushbutton for Extension Units with a flat button and momentary contact operation.
- Contact and illumination: Has 1 NO contact and an integrated white LED; supplied colored disks create translucent red, yellow, green, blue, and black light colors.
- Electrical data: Rated voltage: 24 V DC. Rated current consumption: 100 mA.
- Mounting: Uses threaded-ring mounting and supports front plate attachment in an Extension Unit for 16:9 PRO devices.
- Front protection: Protection at the front: IP65 according to EN60529 and NEMA4.
- Scope of supply: Includes 1 illuminated pushbutton, 1 printed circuit board with contact module, 6 light attachments, and mounting accessories; without inscription.
Frequently Asked Questions
1. What is the function of Siemens 6AV7674-1MB00-0AA0?
It is an illuminated pushbutton for Extension Units with momentary contact operation and a flat button.
2. How many contacts does the pushbutton have?
It has 1 NO contact.
3. What supply voltage and current consumption does it have?
The rated voltage is 24 V DC and the rated current consumption is 100 mA.
4. How is the pushbutton mounted?
It uses threaded-ring mounting and supports front plate attachment in an Extension Unit for 16:9 PRO devices.
5. What is included in the configuration?
The scope of supply includes 1 illuminated pushbutton, 1 printed circuit board with contact module, 6 light attachments, and mounting accessories. It is without inscription.
