Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Product type | EMERGENCY STOP mushroom pushbutton for Extension Unit |
| Actuating element | Conical mushroom pushbutton |
| Operating principle | Latching, rotate to unlatch |
| Contact configuration | 2 NC contacts |
| Mounting type | Threaded ring |
| Front mounting | Yes; Front plate attachment in an Extension Unit for 16:9 PRO devices |
| Rated value (DC) | 24 V |
| Current consumption (rated value) | 100 mA |
| Front protection | IP65 (on front) to EN60529 and NEMA4 |
Applications
- Emergency stop operation: Provides emergency stop actuation through a latching mushroom pushbutton with 2 NC contacts.
Key Features
- Emergency stop actuation: Conical mushroom pushbutton with latching operation; rotate to unlatch.
- Contact configuration: 2 NC contacts.

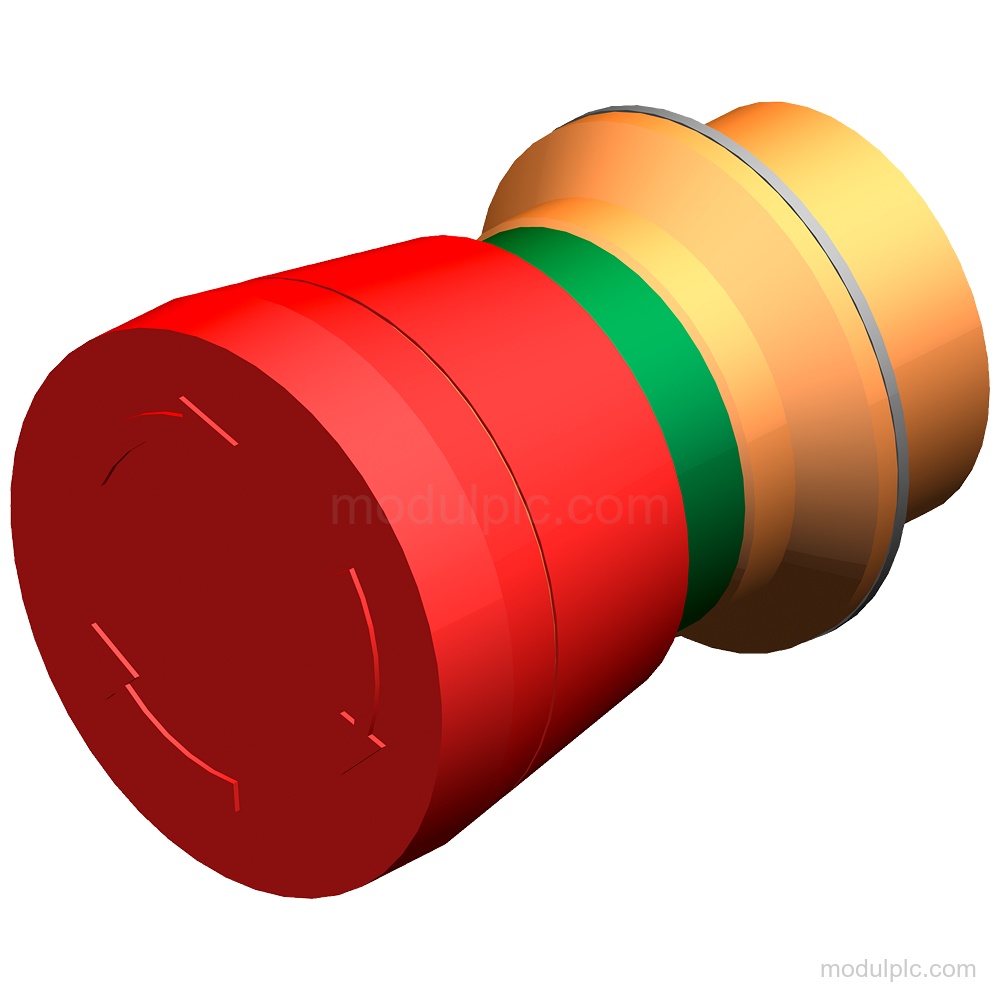

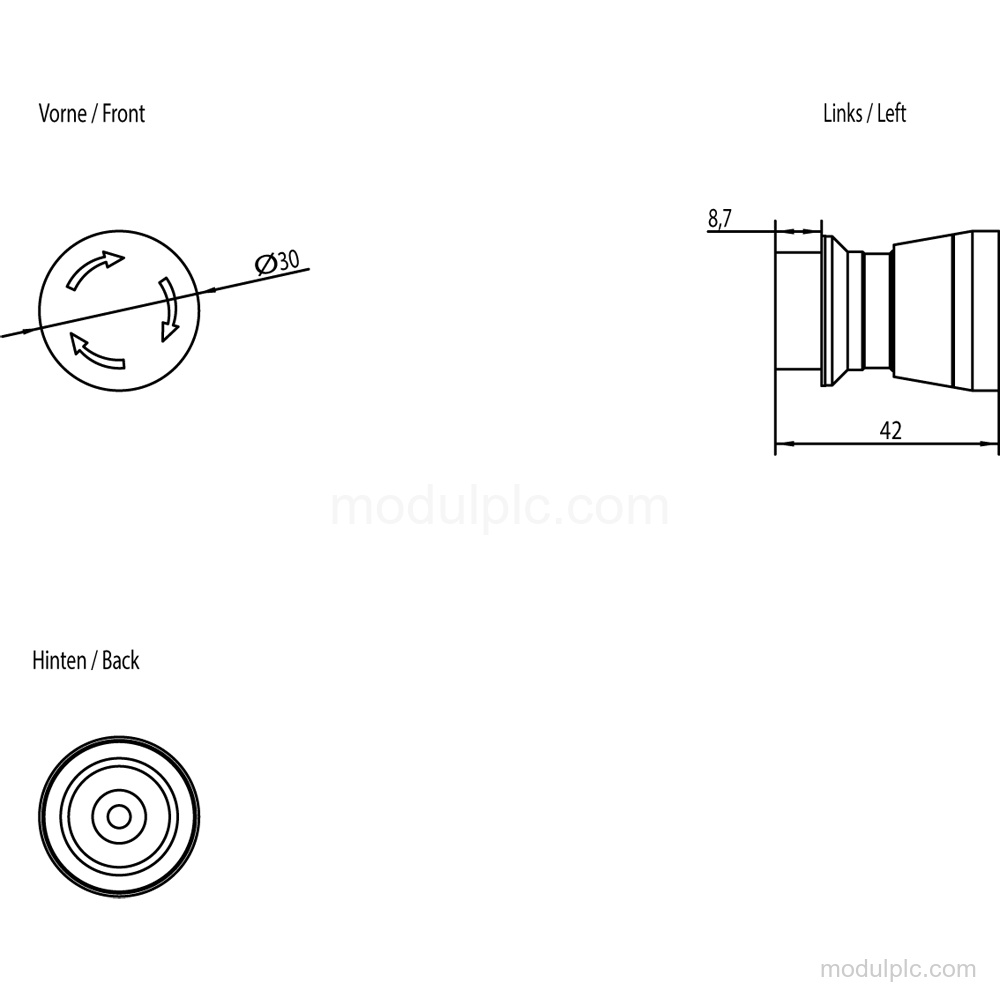

- Design: Round, red plastic pushbutton for 22 mm mounting; without inscription and without illumination.
- Front mounting: Threaded-ring mounting with front plate attachment in an Extension Unit for 16:9 PRO devices.
- Supply and current: Rated value: 24 V DC; current consumption rated value: 100 mA.
- Front protection: IP65 on the front to EN60529 and NEMA4.
Frequently Asked Questions
1. What is the function of the 6AV7674-1MA00-0AA0?
It is an EMERGENCY STOP mushroom pushbutton for Extension Units.
2. How does the pushbutton reset?
It latches when actuated and is released by rotating to unlatch.
3. What contacts does it provide?
It has 2 NC contacts.
4. How is the button mounted and protected?
It uses a threaded ring for front mounting and has IP65 protection on the front to EN60529 and NEMA4.
